SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$2,500-3,000 / set
Weight :
40 KG
Operating voltage :
AC220V (60 HZ) 40W
Primary speed :
1400 RPM
Secondary speed :
400 RPM
Machine size :
410 * 410 * 490MM (W.D.H)
Net weight :
40 KG
Gross weight :
45 KG
Machine length :
410mm
Model :
J40
Time setting :
0.1-9.9 minutes, 0.1 minutes for each time
Core components :
Motor, Pump
Power consumption :
40W
Frequency :
60 HZ
Rotation angle :
45 degrees
Balance weight :
500G
Description

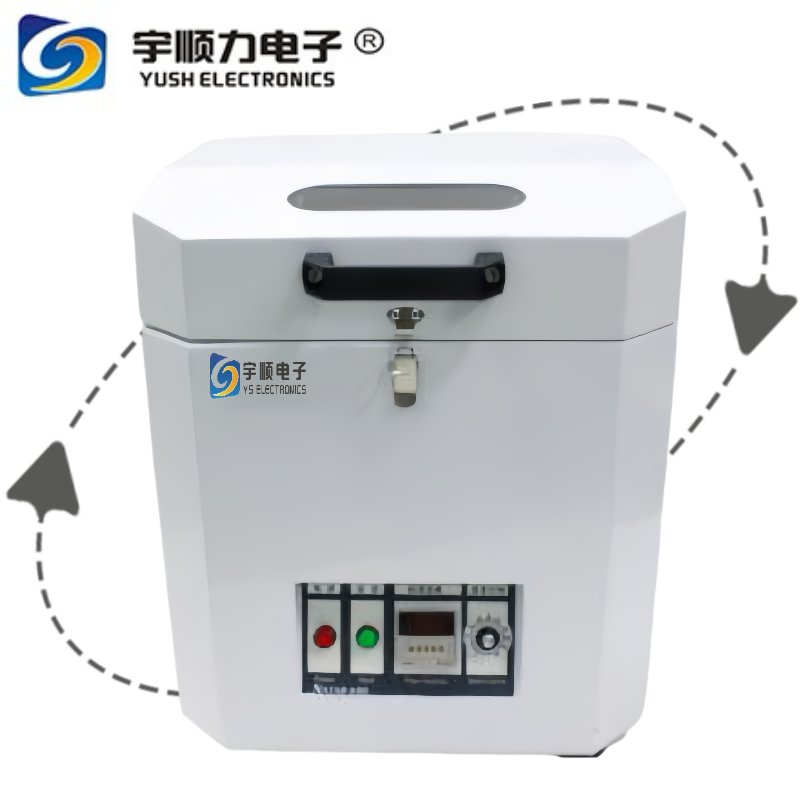

Fully Automatic SMT Tin Cream Mixer
This high-quality tin paste mixer machine ensures precise mixing of solder paste for optimal SMT production results.
Usage Instructions
For optimal performance: When stirring two cans simultaneously, ensure weights are roughly equal (difference ≤50g). For single can operation, use the provided 500g balance weight or equivalent counterweight. Press the power switch to stop operation. The machine automatically stops when the cover is opened during operation.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
Product Maintenance
Regular maintenance extends the service life of this precision mechanical equipment:
  • Keep the machine clean as it uses fully enclosed bearings
  • Replace the rotation device belt promptly when damaged (non-durable component)
Safety Precautions
  • Never open the machine cover or leave it unlocked during operation
  • Wait for complete machine stop before opening the upper cover
  • Place machine on stable, solid surface as slight vibration occurs during operation
  • Immediately power off and inspect if excessive vibration occurs
Technical Specifications
Operating Voltage AC220V (60 HZ) 40W
Operating Speed Primary: 1400 RPM, Secondary: 400 RPM
Machine Dimensions 410 × 410 × 490mm (W×D×H)
Net/Gross Weight 40kg / 45kg
Time Setting 0.1-9.9 minutes (0.1 min increments), 10-30 minutes (1.0 min increments)
Key Features
Utilizing rotary centrifugal force with 45-degree axis rotation, this mixer creates a whirlwind funnel mixing action that softens paste, eliminates clumping, and achieves optimal viscosity for excellent printing and welding performance.
  • No need to remove tin cream before mixing
  • Adjustable mixing time and speed with special control circuit
  • 45-degree placement prevents paste attachment to tank cover
  • Smooth operation with low noise, natural temperature return, and bubble removal
  • Convenient, safe operation without opening tin paste tank
  • Universal clamp fits various tin paste tank packaging
  • No moisture issues or tin powder shape damage
  • 220V power supply with safety protection devices
Operation Procedure

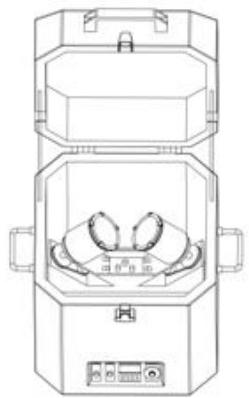

Step 1:
Release latch, open machine cover, and confirm no foreign objects inside.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
Step 2:
Remove tin paste and 500g balance weight.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
Step 3:
Place tin paste and balance weight in tank (cancel balance weight when mixing 2 bottles).
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
Step 4:
Manually rotate tin paste jar to confirm no collision, close cover, and power on.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
Step 5:

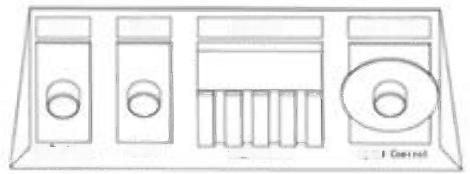

Set mixing time (recommended: 5 minutes). Time controller: H=hours, M=minutes, S=seconds.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
Step 6:
Press start key (indicator light on), machine operates at high speed until automatic stop.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
Step 7:
After completion, press power switch to turn off power supply.
