YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$10,800 / set
Weight :
900Kg
Repeat Position Accuracy :
±0.01mm
Print Accuracy :
±0.025mm
Process CT :
5min
Transport speed :
900±40mm
Print Speed :
10~200mm/sec
Print Pressure :
0.5~10Kg
Cleaning System :
Dry, Wet Vacuum three modes
Machine Width :
1362mm
Maximum board size :
400*340mm (Scalable:530*340mm)
Board thickness :
0.4~6mm
Power Source :
AC:220±10%,50/60Hz 2.2KW
Air Pressure :
4~6Kgf/cm²
Operating Temperature :
-20℃~+45℃
Working humidity :
30%~60%
Description
YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
Machine Performance Specifications
ParameterSpecification
Repeat Position Accuracy±0.01mm
Print Accuracy±0.025mm
NCP-CT (excluding cleaning and printing)7.5s
HCP-CT (including cleaning and printing)19s/pcs
Process CT5min
Transfer Line CT3min
Substrate Processing Parameters
ParameterSpecification
Maximum board size400*340mm (Scalable: 530*340mm option)
Minimum board size50*50mm
Board thickness0.4~6mm
Camera Mechanical range528*340mm
Maximum board weight3kg
Board edge clearance2.5mm
Board height15mm (Beyond trait items pin)
Transport speed900±40mm
Printing Parameters
ParameterSpecification
Print Speed10~200mm/sec
Print Pressure0.5~10Kg
Print ModeOne/Twice
Queegee TypeRubber/Squeegee Blade (angle 45/55/60)
Snap-off0~20mm
Snap-Speed0~20mm/sec
Template frame size470*370mm~737*737mm (Thickness: 20-40mm)
Steel mesh positioning methodManual positioning
Cleaning Parameters
ParameterSpecification
Cleaning SystemDry, Wet Vacuum three modes
Cleaning systemUp Drip type
Cleaning strokeAutomatic generation
Cleaning positionPost cleaning
Cleaning Speed10-200mm/sec
Vision Parameters
ParameterSpecification
CCD FOV10*8mm
Camera type130 Thousand CCD Digital camera
Camera SystemLock up/down optics structure
Camera Cycle time300ms
Machine Parameters
ParameterSpecification
Power SourceAC: 220±10%, 50/60Hz 2.2KW
Air Pressure4~6Kgf/cm²
Air ConsumptionAbout 5L/min
Operating Temperature-20℃~+45℃
Working environment humidity30%~60%
Machine dimension (without Tower light)1460(H)mm
Machine Length1152(L)mm
Machine Width1362(W)mm
Machine Weight ApproxApprox: About 900Kg
Equipment load bearing requirements650Kg/m
Equipment Specifications
Equipment Model: YSL-GES

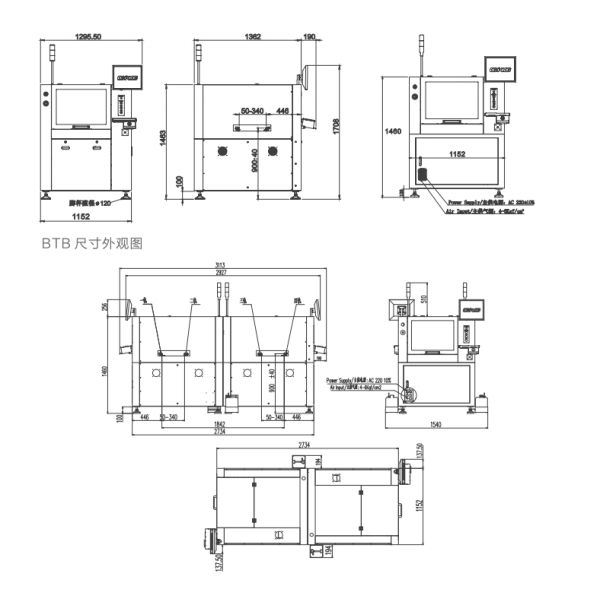

Size: 1152(L)*1362(W)*1460(H)mm
Main Power Supply: AC: 220 ± 10%, 50/60HZ 3KW stable power supply with rated current, plug type: British system
Main Gas Supply: Stable industrial gas source with pressure of 4.0-6kgf/cm², gas pipe diameter: 6mm/8mm/10mm/12mm
Machine Weight: Approximately 900Kg
YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line YS-GSE High Quality Fully Automatic Solder Paste Printer PCB Production Line
Equipment Usage Environment Requirements
  • Workshop temperature: -20℃~+45℃
  • Workshop humidity: 30-60%
  • Static electricity protection: ESD grounding and static electricity protection required
