Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$16,000-20,000 / set
Weight :
900Kg
Repeat Position Accuracy :
±0.01mm
Print Speed :
10~200mm/sec
Power Source :
AC:220±10%,50/60Hz 2.2KW
Operating Temperature :
-20℃~+45℃
Working Humidity :
30%~60%
Machine Height :
1404mm
Machine Length :
1140mm
Machine Width :
1364mm
Print Pressure :
0.5~10Kg
Maximum Board Size :
400*340mm (Scalable:530*340mm)
Board Thickness :
0.4~6mm
Camera FOV :
10*8mm
Air Pressure :
4~6Kgf/cm²
Air Consumption :
5L/min
Description
High Speed Fully Automatic Solder Paste Printer for PCB Production Line
The YS-G5 Fully Automatic Solder Paste Printer delivers precision printing for PCB production lines with exceptional speed and accuracy.
Machine Performance Specifications
Parameter Specification
Repeat Position Accuracy ±0.01mm
Print Accuracy ±0.025mm
NCP-CT (excluding cleaning and printing) 7.5s
HCP-CT (including cleaning and printing) 19s/pcs
Process CT 5min
Transfer Line CT 3min
Substrate Processing Parameters
Parameter Specification
Maximum board size 400*340mm (Scalable: 530*340mm option)
Minimum board size 50*50mm
Board thickness 0.4~6mm
Camera Mechanical range 528*340mm
Maximum board weight 3kg
Board edge clearance 2.5mm
Board height 15mm beyond trait items pin
Transport speed 900±40mm
Maximum Transport speed Segmented control, 1500mm/s (Max)
Transport & Support Systems
  • Transport direction: One section transport guide rail/One stage
  • Transmission direction options: Left to right, Right to left, In and out the same
  • Support System: Magnetic Pin, Support Block, Manual Up-down table
  • Board clamp: Automatic top clamping, Side clamping, Adsorption function
Printing Parameters
Parameter Specification
Print Speed 10~200mm/sec
Print Pressure 0.5~10Kg
Print Mode One/Twice
Squeegee Type Rubber/Squeegee Blade (angle 45/55/60)
Snap-off 0~20mm
Snap-Speed 0~20mm/sec
Template frame size 470*370mm~737*737mm (Thickness: 20-40mm)
Steel mesh positioning method Automatic Y-direction positioning (Compatible with manual compensation adjustment)
Cleaning Parameters
Parameter Specification
Cleaning System Dry, Wet, Vacuum three modes
Cleaning system type Up Drip type
Cleaning stroke Automatic generation
Cleaning position Post cleaning
Cleaning Speed 10-200mm/sec
Cleaning fluid consumption Auto & Manually adjustable
Cleaning paper consumption Auto & Manually adjustable
Vision System Parameters
Parameter Specification
CCD FOV 10*8mm
Camera type 130 Thousand CCD Digital camera
Camera System Lock up/down optics structure
Camera Cycle time 300ms
Fiducial mark types Round, square, diamond, cross, Pad and profile
Mark size 0.5-5mm
Mark number Max: 4pcs
Stay away number Max: 1pcs
Machine Technical Specifications
Parameter Specification
Power Source AC: 220±10%, 50/60Hz 2.2KW
Air Pressure 4~6Kgf/cm²
Air Consumption About 5L/min
Operating Temperature -20℃~+45℃
Working environment humidity 30%~60%
Machine dimension (without Tower light) 1404(H)mm
Machine Length 1140(L)mm
Machine Width 1364(W)mm
Machine Weight Approx: 900Kg
Equipment load bearing requirements 650Kg/m

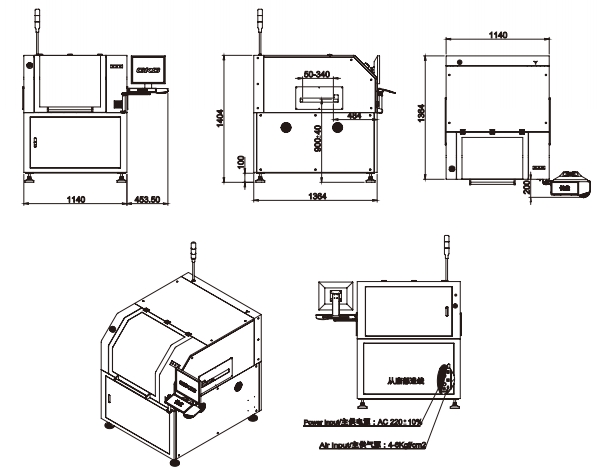

Equipment Model & Dimensions
Equipment Model: YSL-G5
Size: 1140(L) × 1364(W) × 1404(H)mm
High Speed Fully Automatic Solder Paste Printer for PCB Production Line High Speed Fully Automatic Solder Paste Printer for PCB Production Line
Power & Utility Requirements
  • Main power supply: AC 220 ± 10%, 50/60HZ 3KW stable power supply with rated current, British system plug
  • Main gas supply: Stable industrial gas source with pressure of 4.0-6kgf/cm²
  • Gas pipe diameter: 6mm/8mm/10mm/12mm with universal front joint
  • Machine weight: approximately 900Kg
Equipment Usage Environment
  • Workshop temperature: -20℃ ~ +45℃
  • Workshop humidity: 30-60%
  • Static electricity protection: ESD grounding and static electricity protection required
  • Floor load-bearing capacity: Must be ≥ 650kg/m² (consider floor sinking load-bearing capacity)
