Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen
Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen
Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen
Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen
Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen
Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen
Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen
Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen
Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen
Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen
Specifications
Place of Origin :
China
Brand Name :
YUSH
Certification :
CE
MOQ :
1 set
Price :
$10,000 / set
Weight :
300 kg
Power :
10 kW
Voltage :
220V/380V
Dimensions :
850×720×1650mm
Platform size :
320×400mm
PCB size :
250×350mm
Template size :
550×680mm
Printing speed :
0-8000mm/min
PCB thickness :
0.2-2.0mm
PCB fine tuning :
±10mm
Platform height :
850±20mm
Repeating precision :
±0.02mm
Printing accuracy :
±0.02mm
Positioning mode :
Outside/Reference hole
Core components :
PLC, Gearbox, Motor, Pump
Description

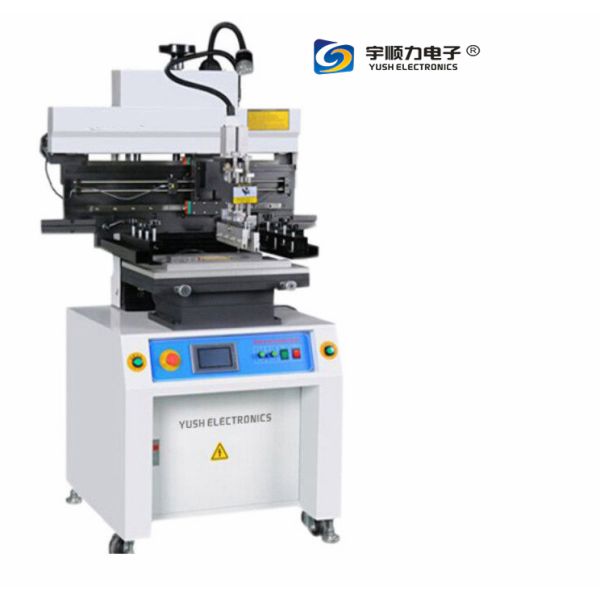

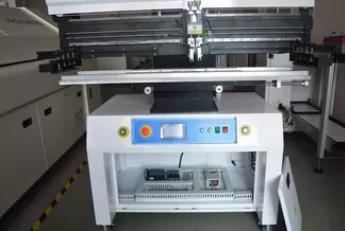

Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen
High accuracy hot sale solder paste printer machine, also known as screen printer or stencil printer, designed for precision PCB assembly applications.
Key Features
  • Precision guide rail and imported motor drive for blade seat conversion, ensuring high printing accuracy
  • 45-degree rotating printing scraper for easy stencil and squeegee cleaning and replacement
  • Adjustable blade positioning for optimal printing placement
  • Combined fixed groove printing platen and PIN system for easy installation and adjustment
  • Supports single and double-sided printing configurations
  • Movable steel mesh with X, Y, Z fine adjustment capabilities
  • Multiple printing methods including one-way and two-way operation
  • Automatic counting function for production output statistics
  • Adjustable blade angle compatible with both steel and rubber scrapers
  • Touch screen interface with adjustable screen saver for extended lifespan
  • Adjustable printing speed display for optimal performance
Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen
Technical Specifications
Model YS-SP400
Dimensions 850×720×1650mm
Platform Size 320×400mm
PCB Size 250×350mm
Template Size 550×680mm
Printing Speed 0-8000mm/min
PCB Thickness 0.2-2.0mm
PCB Fine Tuning Range Front/side ±10mm
Power Supply 1PAC220V 50/60HZ
Platform Height 850±20mm
Repeating Precision ±0.02mm
Printing Accuracy ±0.02mm
Positioning Mode Outside/Reference Hole
Weight Approx. 300Kg
