Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$38,000 / set
Weight :
700KG
Power :
10 kW
Voltage :
220V/380V
Body size :
1800(L)*1200(W)*1600(H)
Total consumption :
11KW
Steady consumption :
4-6KW
Solder pot capacity :
220KG
Solder pot temperature :
300℃
Number of Pre-heaters :
2
Pre-heater passage :
600mm
Outside dimension :
2600(L)*1200(W)*1600(H)
Air supply :
0.5MPa
Preheater consumption :
220V 5KW
Solder pot consumption :
380V 6KW
Conveyor speed :
0-1800mm/min
Description

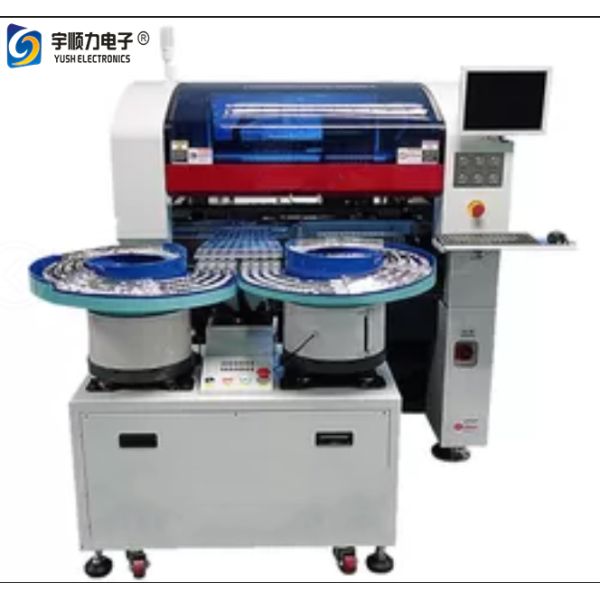

YS-CPM-II Industrial SMT Pick and Place Machine
High Precision Mounter for SMT Production Line
YS-CPM-II Industrial SMT Pick and Place Machine | High Precision Mounter for SMT Production Line YS-CPM-II Industrial SMT Pick and Place Machine | High Precision Mounter for SMT Production Line
Technical Specifications
Model No.YS-CPM-II
Number of Pre-heaters2
Pre-heater passage600mm
Body size1800(L)*1200(W)*1600(H)
Outside dimension2600(L)*1200(W)*1600(H)
Weight700KG
Total/steady consumption11KW/4-6KW
Air supply0.5MPa
Preheating styleHot air
Preheater consumption220V 5KW
Control methodPress key +PLC (Option: touch screen, PC)
Range of temp. set-pointRoom temperature---300℃
Preheating timeAbout 10-15mins for setting 150℃
Solder applicationLead-free / Sn-Pb
Solder pot capacity220KG
Solder pot temperature300℃
Solder pot consumption380V 6KW
Solder temp. control methodPID&SSR
Wave motor power500W 220V
Solder meltingAbout 120mins for setting 250℃
PCB width50-250mm
Conveyor speed0-1800mm/min
Conveyor directionL->R (R->L optional)
Conveyor Inclination4--7 º
Flux pressure3-5 bar
Flux capacity3.2L
YS-CPM-II Industrial SMT Pick and Place Machine | High Precision Mounter for SMT Production Line YS-CPM-II Industrial SMT Pick and Place Machine | High Precision Mounter for SMT Production Line
Key Features & Capabilities
  • Automatic conveying power system with auto synchronous board feeding functions
  • Solder Pot peak uses frequency conversing speed adjustment with independent wave height control
  • Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control
  • PLC control system ensures reliability and stability
  • Pre-heaters using Infrared heating element for efficient heat radiation and fast ramp up
  • Special alloy solder fingers with strengthened double v-groove design
  • Imported high frequency conversion solder motor with independent control
  • Modularized pre-heater passage design for environmental compliance and easy cleanup
  • Three independent temperature control zones for excellent heat preservation and uniformity
  • Timer startup feature for solder pot with 90-minute melting time
  • Automatic finger cleaner ensures solder finger cleanliness
  • Intelligent monitoring and alarm system for stable performance and operator safety
