Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Certification :
ce
MOQ :
1 set
Price :
$28,000 / set
Weight :
3500 kg
Power :
10 kW
Voltage :
220V, 110V
Laser wavelength :
355nm
Laser power :
10W
Maximum processing format :
610mm X 500mm
XY platform speed :
50m/min
Positioning accuracy :
±3um
Repeatability :
±1um
System precision :
±20um
Galvanometer scanning range :
50mm X 50mm
Cutting thickness :
<1mm
Power supply :
AC220V 50Hz / 2.2KW; three-phase 380V 50Hz / 5.5KW
Working air pressure :
516m3/h
Dimensions :
1818mm X 2317mm X 1550mm
Description

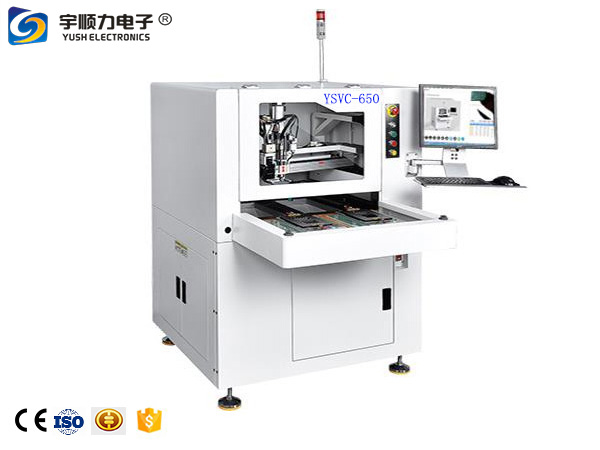

YSVC-650 Multifunctional FPCB Laser Cutting Machine
YUSH Technology brand is a premium instrument manufacturer specializing in FPC ultraviolet laser cutting machines. Our FPC laser cutting machines are primarily used for precision cutting of CVL, FPC, RF, and thin plywood materials.
Applications
Available for flexible circuit boards and organic coating for precision cutting without mold or protective plate fixation. Using high-energy laser sources with precise beam control ensures improved processing speed and precise machining results.
Key Features
  • Proprietary control software with user-friendly interface, complete functionality, and simple operation
  • Capable of processing any graphics with different thicknesses and materials, complete hierarchical synchronization
  • Optimized optical system design ensures high beam quality and reduced focused spot size for precision cutting
  • High-performance UV laser with optimal wavelength, superior beam quality, and higher peak power characteristics

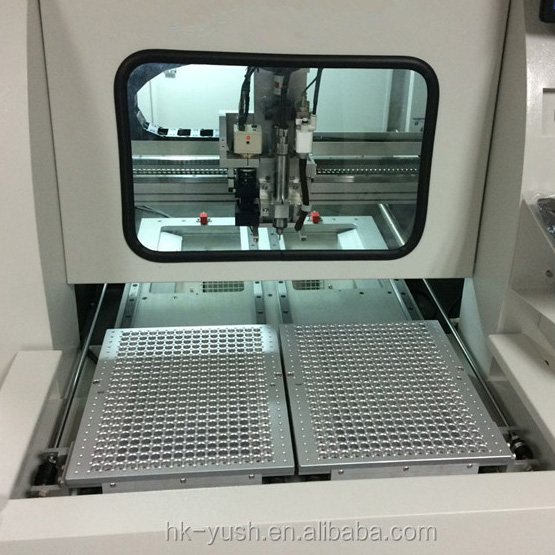

  • Vacuum sample fixation eliminates need for mold protection plates, improving processing efficiency
  • Capable of cutting various substrate materials including silicon, ceramic, and glass
  • Automatic correction, positioning, multi-plate cutting, thickness measurement and compensation functions
Technical Specifications
Laser Source Solid-state UV laser, 355nm wavelength
Laser Power 10W
Maximum Processing Format 610mm × 500mm (24" × 18")
XY Platform Speed 50m/min maximum operating speed
Positioning Accuracy ±3μm
Repeatability ±1μm
System Precision ±20μm
Galvanometer Scanning Range 50mm × 50mm
Cutting Thickness <1mm
Power Requirements AC220V 50Hz / 2.2KW or three-phase 380V 50Hz / 5.5KW
Physical Specifications
Dimensions 1818mm × 2317mm × 1550mm
Weight 3500kg
Air Requirements 516m³/h
Operating Temperature 20℃ ± 2℃
Humidity <60% RH non-condensing
Ground Amplitude <5μm
Vibration Acceleration <0.05g
Ground Pressure 2200kgf/m²
Control System
Industry-specific control equipment with flexible processing software, dedicated motion control card, and IPC control mode. Includes 17" monitor, 300G+ hard drive, and supports standard G-code, Gerber data, and CAD formats.
Application Scope
Suitable for all V-CUT SMD PCB FPC boards and flexible circuit board applications.
