YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
Certification :
ce
MOQ :
1 set
Price :
$28,000 / set
Weight :
3500 kg
Power :
10 kW
Voltage :
220V, 110V
Laser wavelength :
355nm
Laser power :
10W
Maximum format :
610mm X 500mm
Operating speed :
50m/min
Positioning accuracy :
±3um
Repeatability :
±1um
System precision :
±20um
Scanning range :
50mm X 50mm
Cutting thickness :
<1mm
Power supply :
AC220V 50Hz / 2.2KW; three-phase 380V 50Hz / 5.5KW
Dimensions :
1818mm X 2317mm X 1550mm
Ambient temperature :
20℃ ±2℃
Description

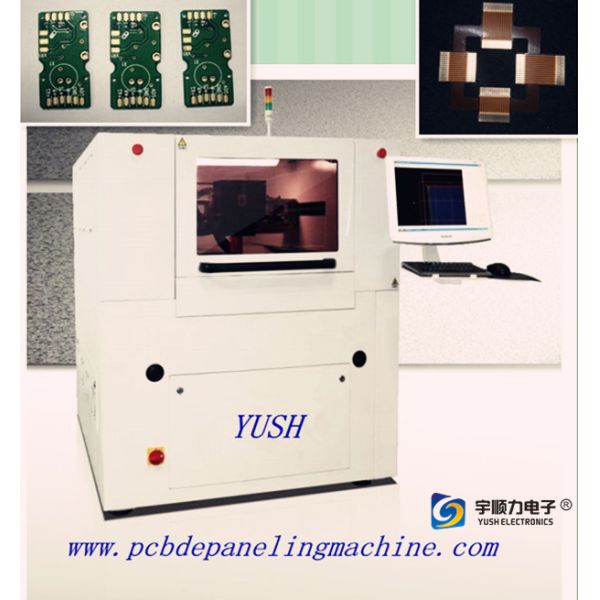

YSVC-650 Professional FPCB CNC Laser Cutter
YSVC-650 Die cutter FPCB cutting machine is a precision laser processing system designed for SMT assembly line applications, offering factory-direct quality and performance.
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
About YUSH Technology
YUSH Technology is a premier instrument brand specializing in PCB industry equipment research, development, and production. Our FPC ultraviolet laser cutting machines are trusted by customers worldwide for precision processing of flexible circuit boards and related materials.
Applications
The FPC UV laser cutting machine is designed for precision cutting of flexible circuit boards and organic coatings without requiring molds or protective plate fixation. Utilizing high-energy laser sources with precise beam control ensures superior processing speed and exceptional machining accuracy.
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
Key Features

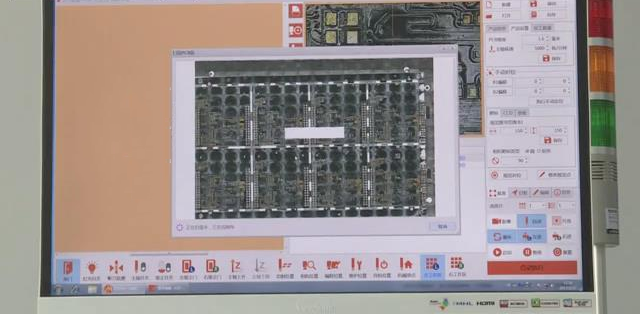

  • Proprietary control software with intuitive interface, comprehensive functionality, and simple operation
  • Capable of processing any graphics with synchronous hierarchical completion and optimized optical system for high beam quality
  • High-performance UV laser with excellent wavelength characteristics, minimal thermal effect, and precision cutting with smooth, steep sidewalls
  • Vacuum sample fixation eliminates need for mold protection plates, enhancing processing efficiency
  • Versatile material compatibility including silicon, ceramic, glass, and various substrates
  • Advanced automation with automatic correction, positioning, multi-plate cutting, thickness measurement, and compensation functions
YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line YSVC-650 Professional Factory Direct FPCB CNC Laser Cutter for SMT Assembly Line
Technical Specifications
Laser SourceSolid-state UV laser, 355nm wavelength
Laser Power10W
Maximum Processing Format610mm × 500mm (24" × 18")
XY Platform Maximum Speed50m/min
Positioning Accuracy±3μm
Repeatability±1μm
System Precision±20μm
Galvanometer Scanning Range50mm × 50mm
Cutting Thickness<1mm
Power RequirementsAC220V 50Hz / 2.2KW; Three-phase 380V 50Hz / 5.5KW
Air Requirement516m³/h
Dimensions1818mm × 2317mm × 1550mm
Weight3500kg
Operating Temperature20℃ ± 2℃
Humidity<60% RH non-condensing
Control SystemIndustry-specific equipment with flexible processing software, motion control card, and IPC control
Data CompatibilityStandard G-code, Gerber data, CAD files
Product Summary
Maximum Board Length610 × 500mm
Package Size1818mm × 2317mm × 1550mm
Thickness1mm
Power SupplyAC220V 50Hz / 2.2KW; Three-phase 380V 50Hz / 5.5KW
Working Air Pressure516m³/h
Weight3500kg
Scope of ApplicationAll V-CUT SMD PCB FPC boards
