Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
Certification :
ce
MOQ :
1 set
Price :
$28,000 / set
Weight :
3500 kg
Power :
10 kW
Voltage :
220V, 380V
Laser wavelength :
355nm
Laser power :
10W
Maximum processing format :
610mm X 500mm
XY platform speed :
50m/min
Positioning accuracy :
±3um
Repeatability :
±1um
System precision :
±20um
Galvanometer scanning range :
50mm X 50mm
Cutting thickness :
<1mm
Dimensions :
1818mm X 2317mm X 1550mm
Ambient temperature :
20℃ ±2℃
Humidity :
<60% RH
Description

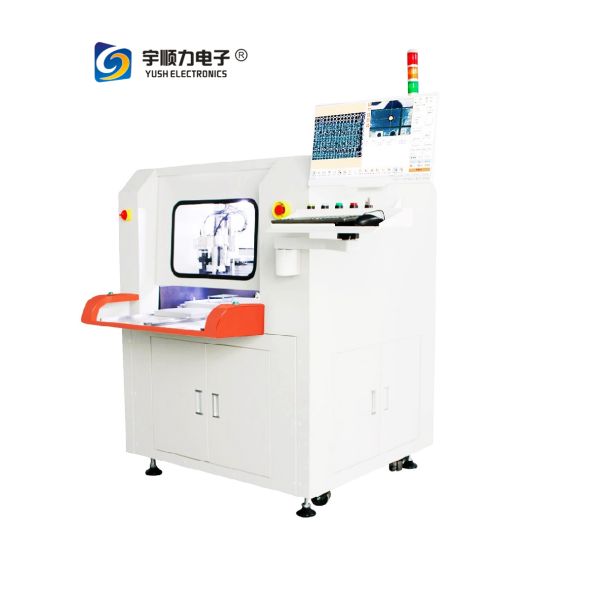

YSVC-650 Factory Direct Metal Laser Cutting Machine

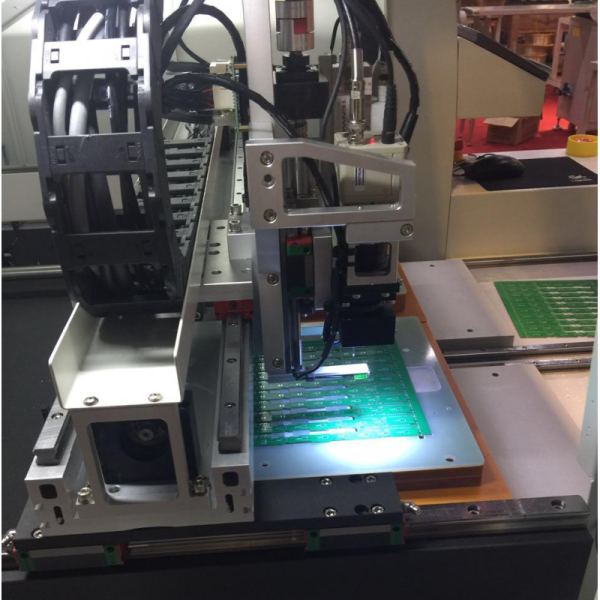

The YSVC-650 is a professional UV laser depaneling machine designed for CEM-3 material PCB boards in SMT production lines. Manufactured by YUSH Technology, this equipment delivers precision cutting for flexible circuit boards and various substrate materials.
YSVC-650 Factory Direct Metal Laser Cutting Machine Made in China for SMT Production Line YSVC-650 Factory Direct Metal Laser Cutting Machine Made in China for SMT Production Line
Applications
Ideal for precision cutting of flexible circuit boards, organic coatings, CVL, FPC, RF, and thin plywood materials. The machine operates without molds or protective plate fixation, utilizing high-energy laser sources for superior processing speed and precise machining results.
Key Features
  • Proprietary control software with intuitive interface and comprehensive functionality
  • Capable of processing any graphics with synchronous hierarchical completion
  • Optimized optical system ensures high beam quality and precision cutting
  • High-performance UV laser with minimal thermal effect and no layering issues

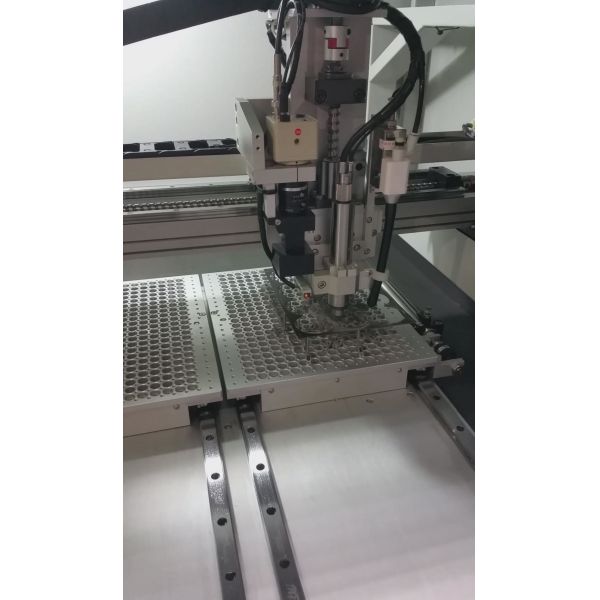

  • Vacuum sample fixation eliminates need for mold protection plates
  • Compatible with various substrate materials including silicon, ceramic, and glass
  • Automatic correction, positioning, thickness measurement and compensation systems
YSVC-650 Factory Direct Metal Laser Cutting Machine Made in China for SMT Production Line
Technical Specifications
Laser Source: Solid-state UV laser, 355nm wavelength
Laser Power: 10W
Maximum Processing Format: 610mm × 500mm (24" × 18")
XY Platform Speed: 50m/min maximum
Positioning Accuracy: ±3μm
Repeatability: ±1μm
System Precision: ±20μm
Galvanometer Scanning Range: 50mm × 50mm
Cutting Thickness: <1mm
Power & Environmental Requirements
Power Supply: AC220V 50Hz/2.2KW or three-phase 380V 50Hz/5.5KW
Ventilation Requirement: 516m³/h
Operating Temperature: 20℃ ±2℃
Humidity: <60% RH non-condensing
Ground Vibration: <5μm amplitude, <0.05g acceleration
Floor Pressure: 2200kgf/m²
YSVC-650 Factory Direct Metal Laser Cutting Machine Made in China for SMT Production Line
Physical Specifications
Maximum Board Length 610 × 500mm
Package Size 1818mm × 2317mm × 1550mm
Thickness Capacity 1mm
Power Supply AC220V 50Hz/2.2KW; three-phase 380V 50Hz/5.5KW
Working Air Pressure 516m³/h
Weight 3500kg
Application Scope All V-CUT SMD PCB FPC boards
Control System
Industry-specific control equipment with flexible processing software, dedicated motion control card, and IPC control mode. Features 17-inch monitor, 300G+ hard drive, and supports standard G-code, Gerber data, and CAD formats.
YSVC-650 Factory Direct Metal Laser Cutting Machine Made in China for SMT Production Line
Manufacturing Excellence: YUSH Technology maintains commitment to PCB industry equipment R&D and production, with FPC laser cutting machines trusted by customers worldwide for reliability and precision performance.
