Factory Direct Fpcb Metal Laser Cutting Machine for Metal Sheet Made in China
Factory Direct Fpcb Metal Laser Cutting Machine for Metal Sheet Made in China
Factory Direct Fpcb Metal Laser Cutting Machine for Metal Sheet Made in China
Factory Direct Fpcb Metal Laser Cutting Machine for Metal Sheet Made in China
Factory Direct Fpcb Metal Laser Cutting Machine for Metal Sheet Made in China
Factory Direct Fpcb Metal Laser Cutting Machine for Metal Sheet Made in China
Factory Direct Fpcb Metal Laser Cutting Machine for Metal Sheet Made in China
Factory Direct Fpcb Metal Laser Cutting Machine for Metal Sheet Made in China
Factory Direct Fpcb Metal Laser Cutting Machine for Metal Sheet Made in China
Factory Direct Fpcb Metal Laser Cutting Machine for Metal Sheet Made in China
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
Certification :
ce
MOQ :
1 set
Price :
$28,000 / set
Weight :
3500 kg
Power :
10 kW
Voltage :
220V/380V
Laser wavelength :
355nm
Laser power :
10W
Max processing format :
610mm X 500mm
XY platform speed :
50m/min
Positioning accuracy :
±3um
Repeatability :
±1um
System precision :
±20um
Galvanometer scanning range :
50mm X 50mm
Cutting thickness :
<1mm
Dimensions :
1818mm X 2317mm X 1550mm
Ambient temperature :
20℃ ±2℃
Humidity :
<60% RH
Description
YSVC-650 FPCB Metal Laser Cutting Machine
Factory direct FPCB metal laser cutting machine for metal sheet processing, manufactured in China by YUSH Technology.
Product Overview
YUSH FPC ultraviolet laser cutting machine is specifically designed for precision cutting of CVL, FPC, RF, and thin plywood materials. This advanced equipment enables mold-free processing with exceptional accuracy and efficiency.
Factory Direct Fpcb Metal Laser Cutting Machine for Metal Sheet Made in China
Key Applications
Ideal for flexible circuit boards and organic coating precision cutting without requiring molds or protective plate fixation. The high-energy laser source with precise beam control ensures superior processing speed and exceptional machining results.
Machine Features
  • Proprietary control software with intuitive interface, comprehensive functionality, and simple operation
  • Capable of processing any graphics with synchronous hierarchical completion for different thicknesses and materials
  • Optimized optical system design ensures high beam quality and reduced focused spot size for precision cutting
  • High-performance UV laser with optimal wavelength, superior beam quality, and high peak power characteristics
  • Minimal thermal effect with no delamination, producing precise, smooth cuts with steep sidewalls
  • Vacuum sample fixation eliminates need for mold protection plates, enhancing processing efficiency
  • Versatile material compatibility including silicon, ceramic, glass, and various substrates
  • Advanced automation with automatic correction, positioning, multi-plate cutting, thickness measurement, and compensation
Factory Direct Fpcb Metal Laser Cutting Machine for Metal Sheet Made in China
Technical Specifications
Laser Source Solid-state UV laser, 355nm wavelength
Laser Power 10W
Maximum Processing Format 610mm × 500mm (24" × 18")
XY Platform Maximum Speed 50m/min
Positioning Accuracy ±3μm
Repeatability ±1μm
System Precision ±20μm
Galvanometer Scanning Range 50mm × 50mm
Cutting Thickness <1mm
Power Requirements AC220V 50Hz/2.2KW; Three-phase 380V 50Hz/5.5KW
Air Requirement 516m³/h
Dimensions 1818mm × 2317mm × 1550mm
Weight 3500kg
Operating Temperature 20℃ ±2℃
Humidity <60% RH non-condensing
Additional Specifications
Maximum Board Length 610 × 500mm
Package Size 1818mm × 2317mm × 1550mm
Thickness 1mm
Power Supply AC220V 50Hz/2.2KW; Three-phase 380V 50Hz/5.5KW
Working Air Pressure 516m³/h
Weight 3500kg

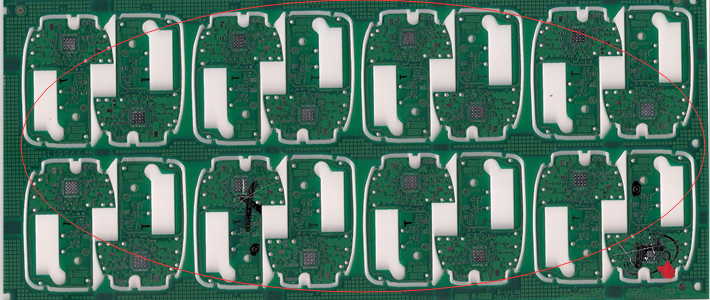

Application Scope All V-CUT SMD PCB FPC boards
Factory Direct Fpcb Metal Laser Cutting Machine for Metal Sheet Made in China
Control System
Industry-specific control equipment with flexible processing software, dedicated motion control card, and IPC control mode. Supports 17" monitor, 300G+ hard drive, and standard G-code, Gerber data, and CAD file formats.
