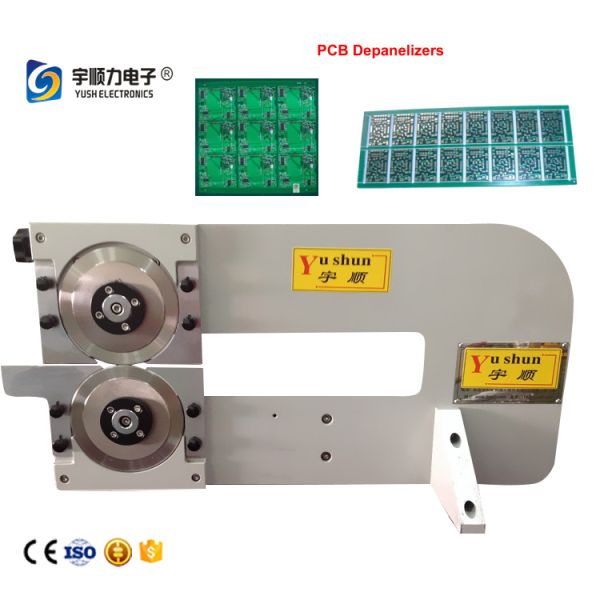

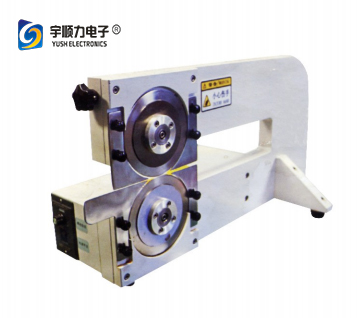

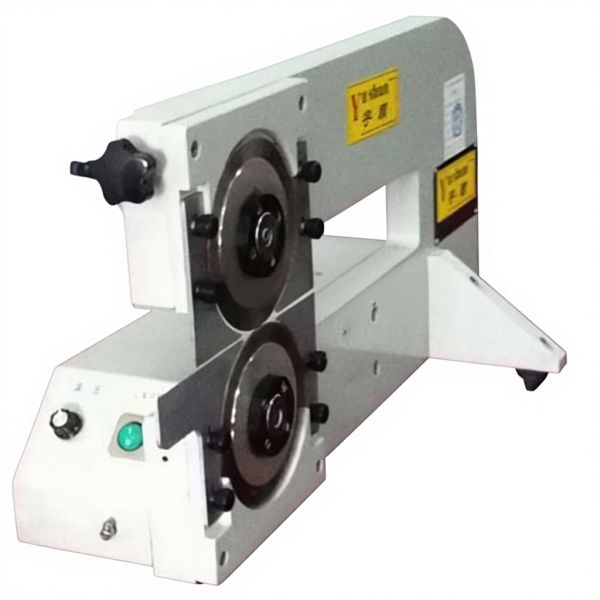

Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Certification :
CE
MOQ :
1 set
Price :
$3,000 / set
Voltage :
220 / 110 V
Power :
3.5 KW
Weight :
40 Kg
Dimensions :
420*280*400 mm
PCB Cutting Length :
330 mm
Cutting Speed :
0~400 mm/s
Cutting Thickness :
1.0~3.5 mm
Core Components :
Motor
Model :
YSV-1
Power Supply :
110/220 V
Blade Material :
SKH-9 (From Japan)
Mold Material :
SKH-11 Steel
Operating Modes :
Manual, Semi-automatic, Fully-automatic
Guiding Device :
V-CUT of PCB
Slideways Type :
Ball bearing
Description
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Professional PCB depaneling solution designed for electronics manufacturing assembly lines.
Key Features
  • Easy operating modes with multiple control options
  • Simple setting with edge guiding system
  • Re-grindable cutters for extended tool life
  • Minimizes micro-cracks in solder joints
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Technical Specifications
Model YSV-1
PCB Cutting Length (mm) 330
Cutting Speed (mm/s) 0~400
Cutting Thickness (mm) 1.0~3.5
Power Supply (V) 110/220
Size (mm) 420*280*400
Weight (Kg) 40
Guarantee (Year) 1
Delivery (Day) 1
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Applications
Ideal for electronics, cell phones, computers, PCB, FPC (flexible printed circuit board), and LED manufacturing processes.
Technical Characteristics
  • Precision structural design with evenly distributed load to eliminate internal stress
  • Safe and easy to operate with comprehensive safety features
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Advanced Features
  • Minimizes shearing stress to prevent micro-cracks in solder joints
  • Guiding device for precise V-CUT alignment on PCBs
  • Ball bearing slideways for easy PCB edge guide adjustment
  • Ball bearing slideways for simple tabletop height setting
  • Multiple operating modes: manual handwheel, semi-automatic, or fully-automatic continuous running
  • Re-grindable cutters for cost-effective maintenance
  • Customizable cutter shapes available
Practical V-CUT PCB Depaneling Machine for PCB Assembly Line
Manufacturing Advantages
  • Original YSV-1 PCB depanelizer manufacturers offering competitive pricing
  • Same-day technical support services
  • Rapid response to customer inquiries within 30 minutes
  • Professional PCB separation solutions from depaneling experts
  • Reliable machinery from experienced team with over 6 years expertise per specialist
