Laser Welding Machine - Board Soldering of Special Components Device
Laser Welding Machine - Board Soldering of Special Components Device
Laser Welding Machine - Board Soldering of Special Components Device
Laser Welding Machine - Board Soldering of Special Components Device
Laser Welding Machine - Board Soldering of Special Components Device
Laser Welding Machine - Board Soldering of Special Components Device
Laser Welding Machine - Board Soldering of Special Components Device
Laser Welding Machine - Board Soldering of Special Components Device
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$5,800 / set
Weight :
500 kg
Laser wavelength :
808±8nm
Fiber diameter :
400um / 600um
Fiber output power :
30±6W
Fiber connector :
YS-905
Numerical aperture :
0.22
Rated power :
500VA
Indication laser :
635±6nm, 5mw
AC power supply :
AC 220V±10%50HZ, 15A
Ambient temperature :
10-35°C
Relative humidity :
≤80%RH
Atmospheric pressure :
86-106Kpa
Air dust :
≤0.01g/m3
Core components :
PLC, Gearbox, Motor, Pump
CCD magnification :
20x
Description

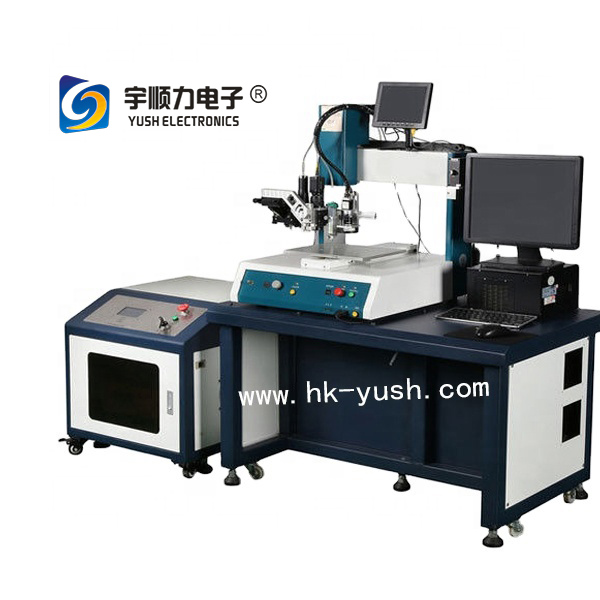

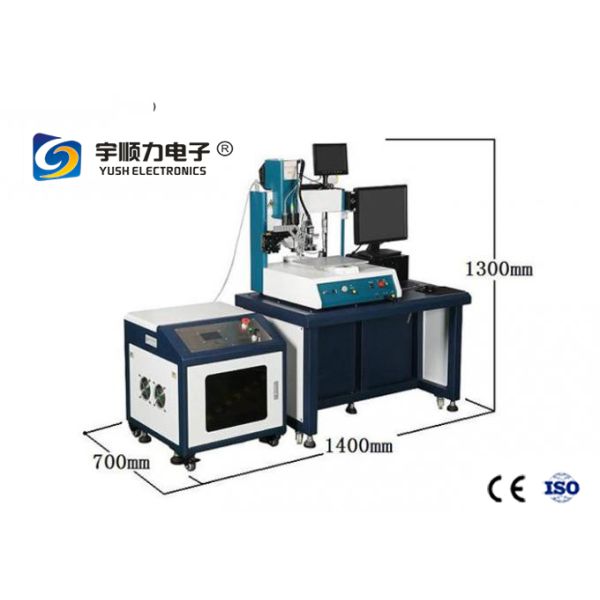

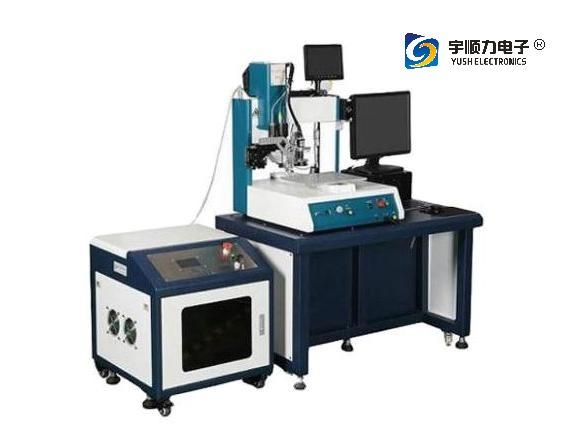

Laser Welding Machine - Board Soldering of Special Components Device
Professional laser welding system designed for precision board soldering of special components with integrated visual positioning and automated functionality.
Laser Welding Machine - Board Soldering of Special Components Device Laser Welding Machine - Board Soldering of Special Components Device
Technical Specifications
Laser wavelength 808±8nm
Fiber terminal output power 30±6W
Fiber diameter 400um / 600um
Fiber Optic Connector YS-905
Numerical aperture 0.22
Rated power 500VA
Indication laser 635±6nm, 5mw
AC power supply AC 220V±10%50HZ, 15A
Ambient temperature 10-35 °C
Relative humidity ≤80%RH
Atmospheric pressure ≤86-106Kpa
Environmental cleanliness air dust ≤0.01g/m³
Laser Welding Machine - Board Soldering of Special Components Device
Key Features
  • Professionally designed welding system compatible with visual positioning CCD
  • Integrated solder paste and laser functions for comprehensive laser and solder paste integration
  • Advanced visual positioning CCD with professional algorithm for complete and accurate positioning
  • Touch screen control with adjustable waveforms suitable for precision welding applications
  • Laser power supply with current feedback control for stable output laser energy
  • High-quality imported laser from the United States
  • Single mode fiber output with excellent beam quality
  • 20x CCD display for clear monitoring of the welding process
  • Fully automatic operation with automated loading and unloading for unmanned operation
Applications
High-density interconnect chips, ICs, chip components, connectors, headphone plugs, cell phone speakers, energy-saving lamps, FPC flexible circuit boards, cell phone cameras, and special components for board soldering.
Packaging & Shipping
Laser Welding Machine - Board Soldering of Special Components Device
Company Information
YUSH Electronic Technology Co., Ltd is a manufacturer and trader specialized in the research, development and production of PCB depaneling, Hot bar welding machines and Touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China with convenient transportation access. All products comply with international quality standards and are appreciated in markets worldwide.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China since 2014, serving global markets including Eastern Europe, North America, South America, and Europe. Our team consists of 301-500 professionals.
How can we guarantee quality?
Pre-production samples before mass production and final inspection before shipment ensure consistent quality standards.
What can you buy from us?
PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.
Why should you buy from us?
Founded in 2004, YUSH Electronic Technology brings extensive experience with advanced production equipment and expertise in PCB separator and electronic equipment machinery.
What services can we provide?
Multiple delivery terms (FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF), various payment options (T/T, L/C, D/P D/A, Credit Card, PayPal, etc.), and multilingual support in English, Chinese, Spanish, Japanese, and more.
