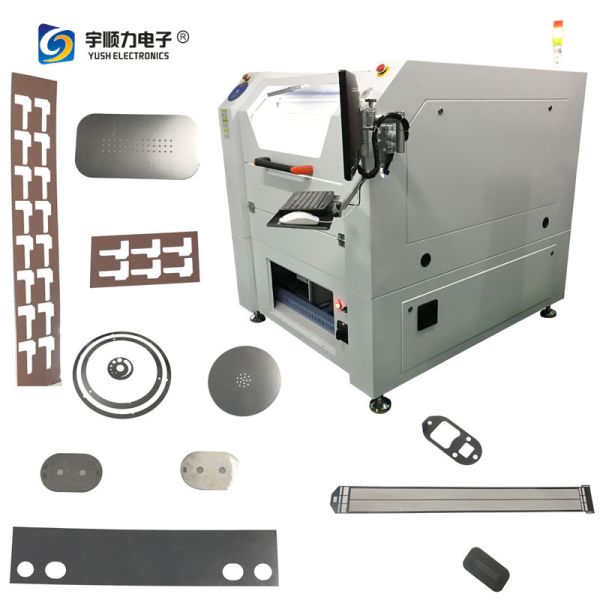

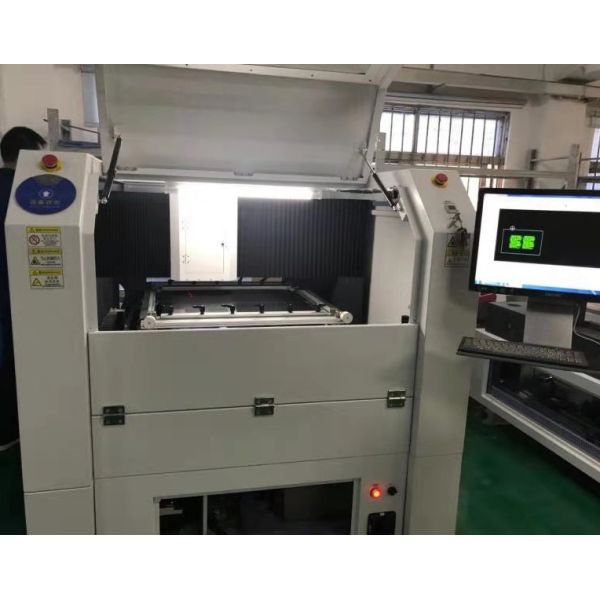

SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YS-GW50
Certification :
ce
MOQ :
1 set
Price :
$50,000-100,000 / set
Weight :
2000 KG
Cutting speed :
24000 pad/h
Positioning accuracy :
±2μ
Repeated positioning accuracy :
±2μ
Wavelength :
1070 nm
Dimensions :
1680*1500*1630mm
Platform velocity :
≤300mm/S
Location detection variability :
0.1μm
Cutting range :
X 600mm * Y 600MM
Table size :
X 620mm * Y 620MM
Cutting thickness :
≤0.5mm
Focus diameter :
25-30μm
Best Cutting Effectiveness :
Up to 9400 Synthetic Aperture / hr, 13000-14000 standard aperture / hour
Platform Repeatability :
±1.5μm
Core components :
PLC, Engine, Bearing, Gearbox, Motor
Description
SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
The YS-GW50 SMT Stencil Fiber Laser Cutting Machine from YUSHElectronic Technology Co., Ltd. is a high-performance solution for solder paste printer applications. This advanced cutting system combines precision engineering with innovative waste management for optimal performance in electronic manufacturing environments.
SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
Key Features and Benefits
Advanced Waste Collection System: Innovative structure design with comprehensive waste and smoke collection that eliminates equipment stability issues caused by chips, slag, and iron dust, significantly extending equipment service life.
High Power Fiber Laser Technology: Semiconductor-pumped solid-state high-power fiber laser increases cutting efficiency and expands the range of machinable products, handling both ordinary metal sheets and precision parts with various thickness requirements.
Specialized Process Solutions: Professional fixture design accommodates materials of various sizes and shapes, optimizing user processes and maximizing equipment value through a complete equipment process system.
SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
Technical Specifications
Positioning Accuracy ±3μm
Platform Repeatability ±1.5μm
Platform Velocity ≤300mm/S
Location Detection Sub Variability 0.1μm
Cutting Range X 600mm × Y 600mm
Table Size X 620mm × Y 620mm
Cutting Thickness ≤0.5mm (reference value)
Focus Diameter 25-30μm
Best Cutting Effectiveness Up to 9400 Synthetic Aperture/hr, 13000-14000 standard aperture/hour (with 0.3mm diameter standard round date, 0.15mm less steel)
Physical Dimensions: 1680 × 1500 × 1630mm | Weight: 1200KG
SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
