High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$20,000 / set
Weight :
800 KG
Voltage :
220V
Valid Cutting Area :
350*300mm
Cutting Function :
Tewwning to Line, L-shape, U-shape, Circle, Are
Process Table :
Dual Tables
Repeat Precision :
±0.01mm
Cutting Precision :
≤±0.05mm
Core Components :
PLC, Bearing, Motor
Delivery Height :
900±25mm
QR Code Size :
min 2.5*2.5mm
Hard Disk Capacity :
500G
Cutting Inspection :
Burr, Exposed Copper
Z Axis Compensation :
Automatic
Spindle Origin :
Germany
Line Change Time :
Reduced by 50%
Description

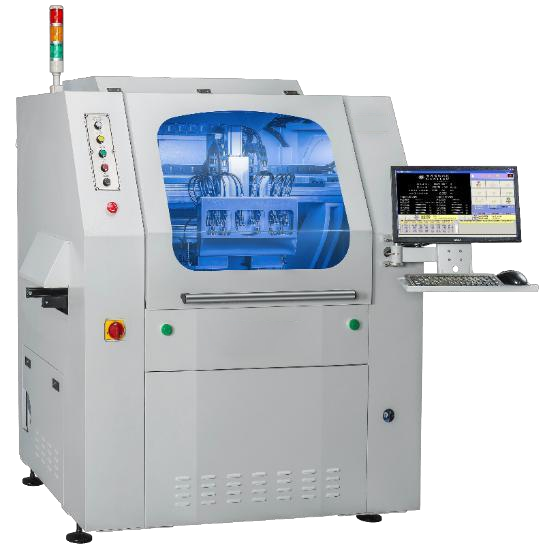

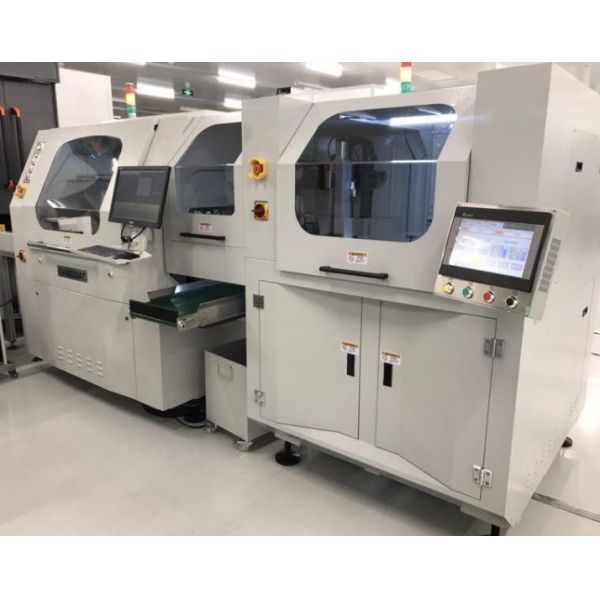

High Efficiency Fully Automatic SMT Visual PCB Separator
In-line automatic PCB separator designed for PCB assembly lines with full automation capabilities for loading, cutting, and unloading PCBs.
Machine Introduction
  • Automatic width adjustment to accommodate various PCB sizes
  • Intelligent separation of finished PCBs from waste material
  • High-speed CCD vision alignment system for precision cutting
  • Computer vision with quality CCD for automatic mark point positioning
  • Dual worktables for parallel PCB placement and cutting operations
  • High-speed spindle with minimal cutting stress for precise shaping
  • Auto-focusing system requiring no manual adjustment
  • EMS central control system with upper management system integration
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
Machine Applications
  • Suitable for small-sized PCBA panels in mobile phones, digital cameras, and GPS devices
  • Large cutting capacity for big-sized PCBA panels in TVs, PC hosts, workstations, and servers
  • Multiple unloading solutions for full automation and labor cost reduction
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
Operation Interface Features

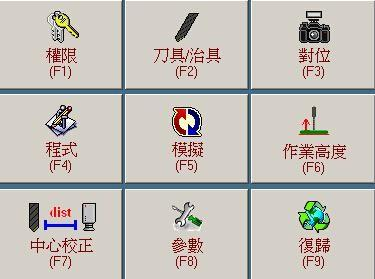

Comprehensive 9-function operation system:
  • F1: User Permission management
  • F2: Board thickness, milling bit specification and fixture height settings
  • F3: Mark setting and revision
  • F4: Cutting Program Editing
  • F5: Cutting path simulation
  • F6: Milling bit working height setting
  • F7: Milling bit drilling center correction
  • F8: Environment, Working, and Permission Settings
  • F9: System Reset
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
Advanced Software Functions

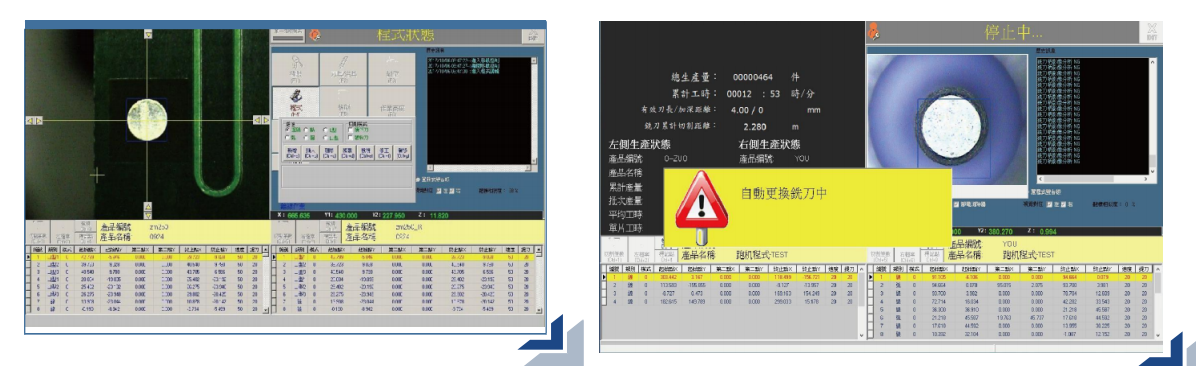

Vision-Aided Position Calibration
Computer vision with CCD for automatic mark point positioning and cutting accuracy enhancement. Includes path-planning program editing and cutting path simulation.
Milling Bit Detection
Automatic detection of broken, dropped, or reversed milling bits for auto tool-change functionality.
Cutting Inspection
Automatically checks cutting results for burrs and exposed copper, with automatic error correction.
Smart Programming
User-friendly program editing with time-saving humanization features.
Whole PCB Scanning
Facilitates rapid correction and editing of cutter routing paths with optional cutting line colors.
Offline Programming
Reduces production line waiting time through offline program capabilities.
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line

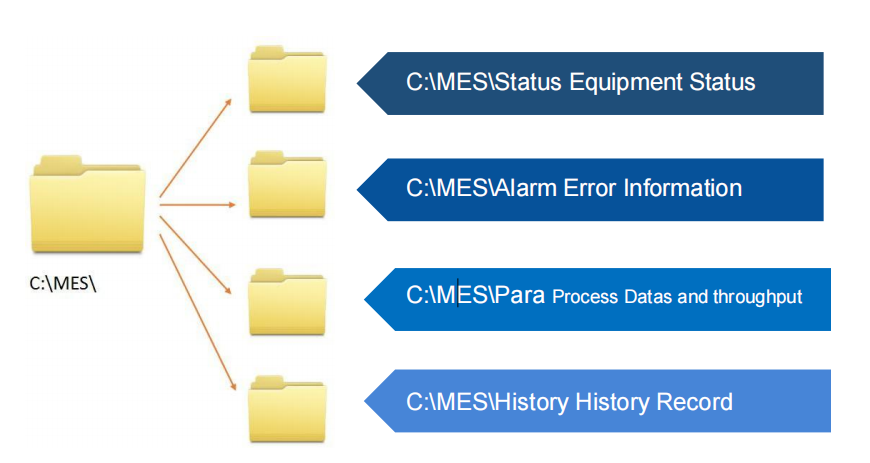

MES Integration
Comprehensive Manufacturing Execution System functionality providing equipment status and production data to central information personnel for collection and management.
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line

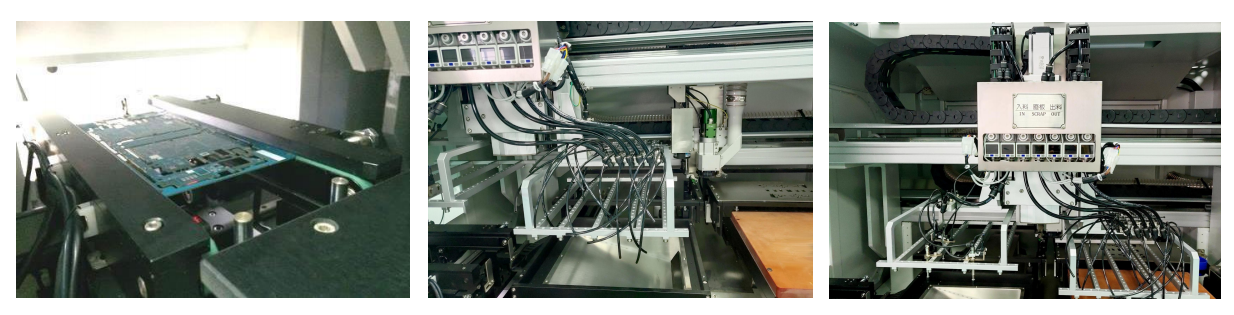

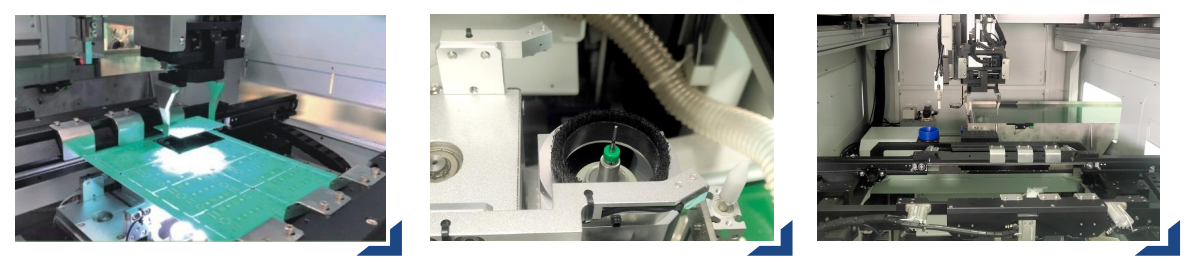

Special Machine Functions
  • Automatic board width adjustment with elastic clamping edge and auxiliary positioning
  • Dual worktables for parallel PCB processing efficiency
  • Optimized inlet and outlet nozzles with wide applicability
  • Flexible cleaning brush module reducing milling bit loss
  • Cover module mechanism reducing dust pollution
  • Auto-tool change function with German imported spindle
  • Modular feeding arm design with quick replacement capability
  • Suction cup simulation to prevent board dropping
  • Auto open/close switching module for clamp plate
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
Unloading Module Options
  • Connected conveyor unloading
  • Discharge baffle equipped
  • Track delivery (optional)
  • Connection to test machines
  • Barcode camera for dynamic QR code capture
  • Laser height detection module
  • Optional gripper module for large and heavy PCBA
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
YS380AT Special Features
  • Fixture-free cutting operation
  • 0-180 degree unloading angle flexibility
  • Bottom cutting method with PCB track loading
  • Standard delivery height: 900±25mm
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line

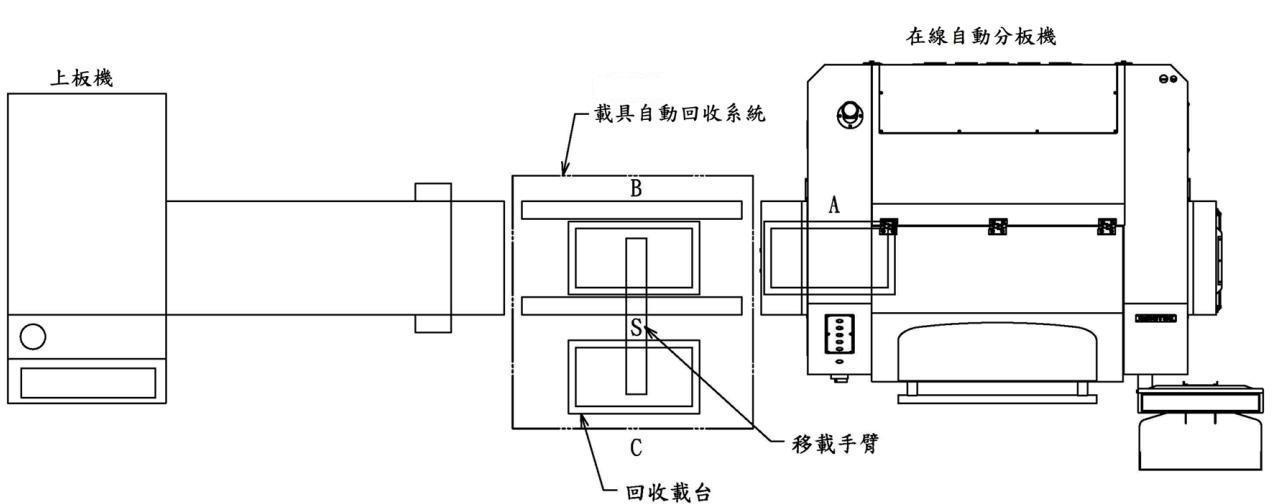

Complete Automation Solutions
Full production line integration with carrier management systems for PCB without board edge applications.
High Efficiency Fully Automatic SMT Visual PCB Separator for PCB Assembly Line
Premium Components
Features German imported spindle technology for superior cutting performance and precision.
