Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$10,980-15,800 / set
Weight :
530 kg
Power :
10 kW
Voltage :
110/220 V
Dimensions :
730X810X1700 mm
Worktable size :
330 x 220 mm
Depression :
0.45-0.70 Pa
Punch force :
3 T (up to 30T)
Working area :
330*220 mm
Working air pressure :
0.5-0.7 Mpa
PCB tool size :
730*810*1700 mm
PCB tool weight :
530 kg
Core components :
Pressure Vessel
Machine weight :
530/700 kg
Power supply :
110/220 V
Depression range :
0.45-0.70 Pa
Description

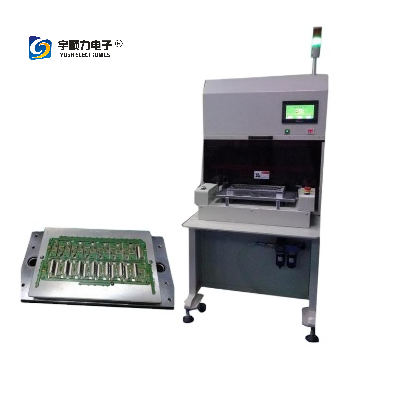

SMT Line Supporting YSPE High Efficiency PCB Punching Machine
SMT Line Dedicated YSPE Industrial High Efficiency PCB Punching Machine for SMT Workshop Processing
SMT Line Supporting YSPE High Efficiency PCB Punching Machine for SMT Workshop Processing SMT Line Supporting YSPE High Efficiency PCB Punching Machine for SMT Workshop Processing
Key Features
  • Compatible with Rigid PCB, Flexible PCB (FPC), and Rigid-Flexible PCB materials

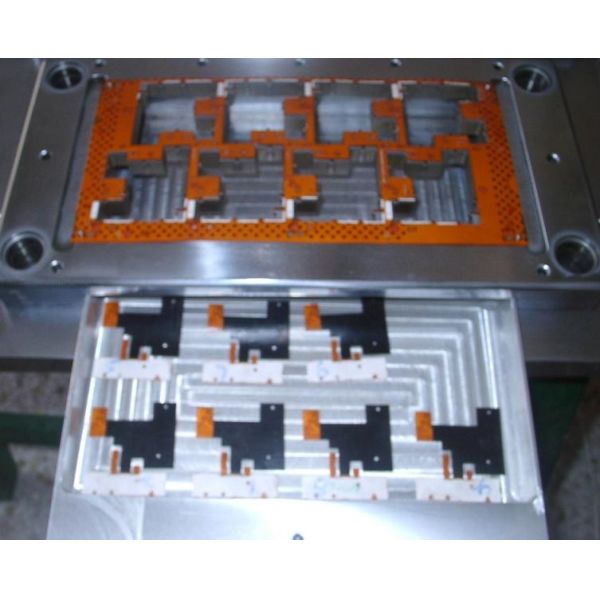

  • Utilizes punching molds for high-efficiency cutting operations
  • Supports multiple mold configurations with easy mold changing capability
  • Simple and safe operation with user-friendly controls
Technical Specifications
Model YSPE
Punch Capacity (T) 3 (customizable up to 30T)
Working Area (mm) 330 × 220 (customizable)
Voltage (V) 110/220
Working Air Pressure (MPa) 0.5-0.7
Tool Size (mm) 730 × 810 × 1700
Tool Weight (kg) 530
SMT Line Supporting YSPE High Efficiency PCB Punching Machine for SMT Workshop Processing
Advanced Operational Features
  • Robust construction with mobility provided by 4 casters
  • Versatile mold compatibility with easy changeover system
  • Automatic lower mold in/out mechanism for simplified product handling
  • Integrated drawer system for finished product collection
  • Minimizes internal stress during PCB cutting to prevent tin stress cracking
  • High-efficiency punching of semi-finished PCBs
  • Custom mold and die fabrication available to meet specific customer requirements
