Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$10,000-20,000 / set
Weight :
780 kg
Power :
10 kW
Voltage :
220V/380V
Output :
3T/8T/10T
Working pressure :
0.50-0.70Mpa
Working area :
330*220mm
Punch speed :
8~15s
Work plan :
≥60mm
Work noise :
≤60dB
Working accuracy :
±0.05mm
Machine weight :
580kg
Cylinder bore :
125/160/200
Control system :
PLC programmable
Touch screen :
English/Chinese display
Power supply :
220VAC
Description

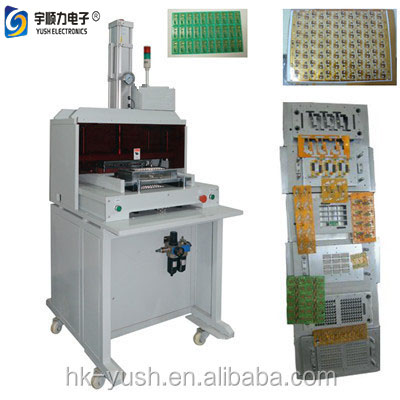

Professional High Precision FPC/LED/PCB Servo Hydraulic Punching Machine
Advanced servo hydraulic punching machine specifically designed for SMT assembly lines, offering precision processing for FPC, LED, and PCB applications.
Professional High Precision FPC/LED/PCB Servo Hydraulic Punching Machine for SMT Assembly Line
Key Machine Features
  • PCBA punch mold machine with robust construction
  • Compact structure with solid body design
  • Available cylinder bores: 125mm, 160mm, 200mm (AirTAC)
  • Smooth operation with minimal vibration and low noise levels
  • English touch screen display with clear panel interface
  • Comprehensive alarm function for immediate abnormal warning detection

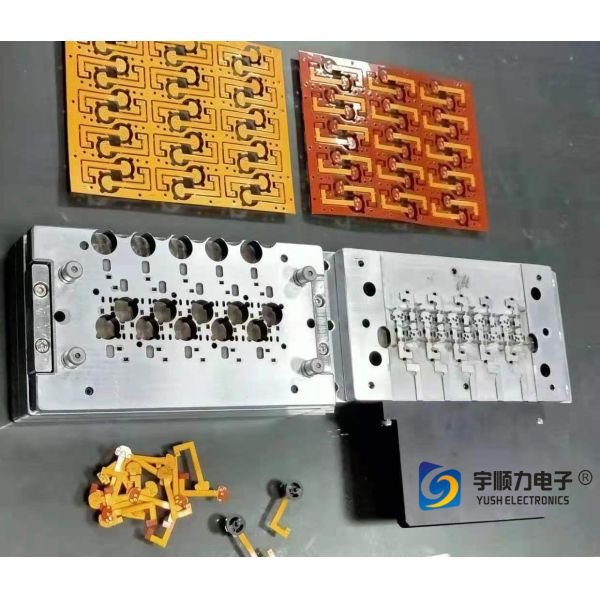

  • Universal machine design supporting multiple mold configurations
  • Quick and easy mold change capability
Professional High Precision FPC/LED/PCB Servo Hydraulic Punching Machine for SMT Assembly Line
Performance Advantages
  • Fast booster cylinder design for rapid operation speed
  • Compact structure with super steel construction for safety and ease of use
  • Interchangeable molds for different product requirements
  • Automatic lower die entry and exit system
  • Convenient product pick-and-place with finished product collection drawer
  • Minimized internal stress during cutting to prevent component cracking
  • High efficiency for punching semi-finished PCB, FPC, and aluminum substrates
Professional High Precision FPC/LED/PCB Servo Hydraulic Punching Machine for SMT Assembly Line
Control System Specifications
PLC Control System
  • PLC programmable controller with touch screen interface
  • Supports both automatic and manual operation modes
  • Emergency stop function with sound and light alarm
  • Emergency stop buttons installed at both device ends
  • Control panel with lock to prevent unauthorized parameter changes
  • Independent power distribution cabinet with organized circuit layout
  • Comprehensive overload protection system
Touch Screen Interface
  • Operation authority settings with access control
  • Jog, manual, and semi-automatic operation modes
  • I/O monitoring and yield saving capabilities
  • Production statistics and error information storage
  • Parameter setting with engineering level permissions
  • Program selection for each station configuration
  • Chinese and English display with counting and air pressure detection
