PCB SMT Laser Template Cutting Machine
PCB SMT Laser Template Cutting Machine
PCB SMT Laser Template Cutting Machine
PCB SMT Laser Template Cutting Machine
PCB SMT Laser Template Cutting Machine
PCB SMT Laser Template Cutting Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YS-GW100W
MOQ :
1 set
Price :
$65,000 / set
Weight :
2200Kg
Laser power :
50W/100W/200W
Wavelength :
1070nm
Cutting thickness :
1.0mm
Overall dimension :
1640mm*1380mm*1500mm
Supply voltage :
220V
Power consumption :
<2KW
Beam quality :
M²<1.1
Working area :
650mm*650mm
Clamping size :
650mm*720mm
Cutting speed :
About 24000 pad/h
Positioning accuracy :
±2μ
Repeated positioning accuracy :
±2μ
Auxiliary cutting gas :
Oxygen8-10Kg, Compressed air16Kg
Main material :
savageness granite
Description

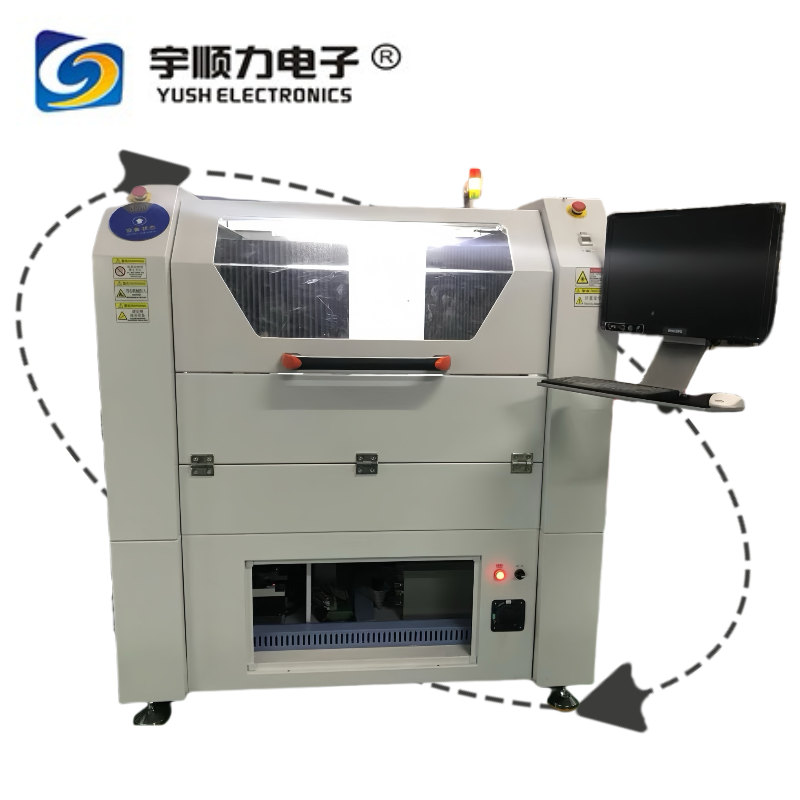

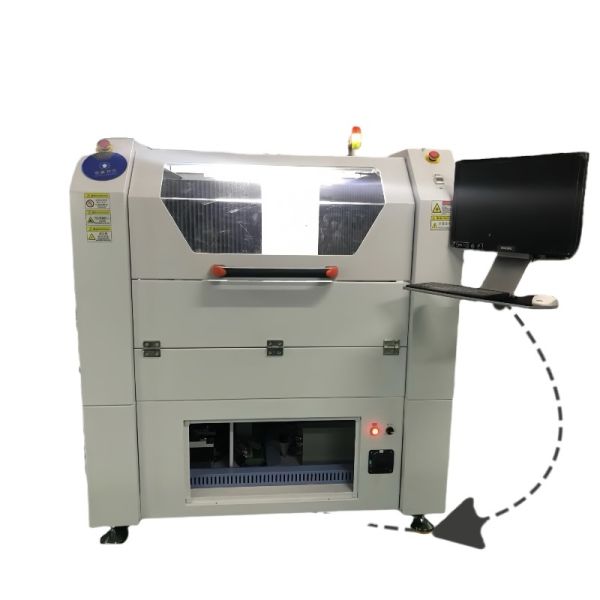

PCB SMT Laser Template Cutting Machine
The YS-GW100W represents Yush's latest generation of SMT laser template cutting machines, featuring significant improvements in both performance and user-friendly operation compared to previous models. Engineered to meet market demands, this machine delivers exceptional cutting quality while maintaining high cutting speeds, offering performance comparable to imported equipment with superior cost-effectiveness.
Capable of high-precision cutting for various materials including stainless steel, carbon steel, galvanized sheet, silicon steel sheets, titanium alloys, copper, brass, aluminum, and ceramics.
Technical Specifications
Model YS-GW 300 YS-GW 100W
Laser Power 50W/100W/200W 50W/100W/200W
Wavelength 1070nm
Beam Quality M²<1.1
Working Area 600mm × 600mm 650mm × 650mm
Clamping Size 650mm × 720mm
Cutting Thickness 0.3mm 1.0mm
Cutting Speed (pad/h) Approximately 19,200 Approximately 24,000
Overall Dimension 1640mm × 1380mm × 1500mm
Weight Approximately 2200Kg
Positioning Accuracy ±2μ
Repeated Positioning Accuracy ±2μ
Supply Voltage 220V
Power Consumption <2KW
Upper Computer Adavantech
Operating Software SmartCut
Cut Document LMD, CNC, DXF
Auxiliary Cutting Gas Oxygen 8-10Kg, Compressed air 16Kg
Main Material Savageness Granite
Note: The above model laser power can be ordered according to customer needs.
Key Features

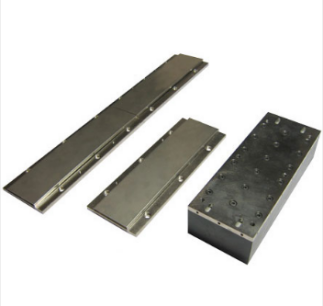

  • Iron core linear motor with double driver structure provides large thrust and maximum acceleration up to 2.0G, ensuring precise movement at high speeds
  • Imported IPG fiber laser delivers stable output power, long lifespan, maintenance-free operation, smooth hole processing, and consistent processing stability

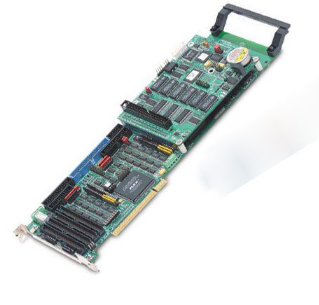

  • US-imported drives with high-end adjustment and tuning algorithms significantly improve cutting performance and ensure machining accuracy

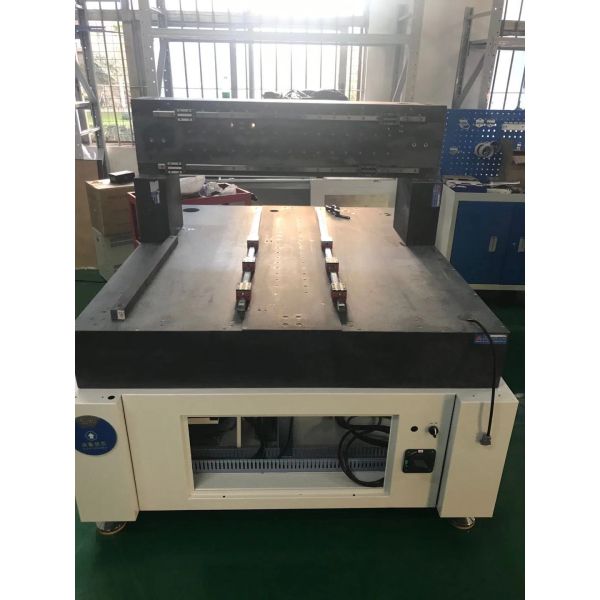

  • Natural marble base structure provides safe and stable operation

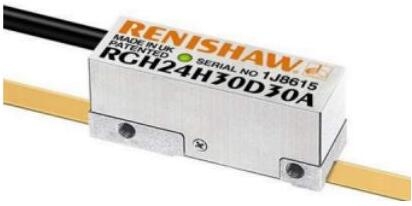

  • High-precision grating full-closed loop system enables real-time feedback to reduce repetitive positioning errors
  • Low energy consumption with total machine power consumption of approximately 2.5KW/h
