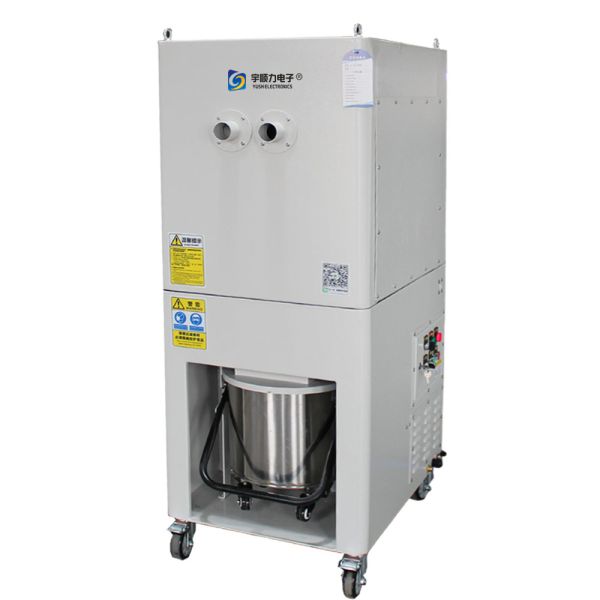

High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$13,000-15,000 / set
Weight :
300 kg
Power :
10 kW
Voltage :
220V/110V
Size :
900*600*1450mm
Noise level :
70dB
Motor voltage :
380V
Power options :
4KW-7.5KW
Filtration area :
18M²
Filtration accuracy :
0.3μm
Air flow :
440-530 m³/h
Vacuum degree :
-29 to -32 Kpa
Suction diameter :
40/50 mm
Dust capacity :
15 L
Power cord :
8 m
Air pressure :
1Kpa ≥work value≥0.4Kpa
Description
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
Precision Laser Cutting Dust Removal
Applicable Working Conditions

This industrial vacuum cleaner is specifically designed for laser engraving machines and suitable for automated equipment, robotic welding, and various production equipment applications.

Product Overview

The YUSH T series laser engraving machine vacuum cleaner is an industrial-grade specialized unit designed to support automation equipment. Operating at 380V with power options ranging from 4KW to 7.5KW, this vacuum cleaner can work continuously for 24 hours. It features standard local/remote control switching functionality and can be permanently installed on large equipment as a fixed vacuum system with equipment linkage capability.

The system includes 6 HEPA filters with a total filtration area of 18M² and filtration precision of 0.3μm. The programmable pulse cleaning design allows users to set automatic cleaning intervals according to specific working conditions.

High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
Product Highlights
  • Three-phase electric industrial-grade vortex fan (4KW/5.5KW/7.5KW) capable of 24-hour continuous operation with phase loss, overheating, and overload protection
  • Split design with noise reduction treatment for optimal acoustic performance and low noise operation
  • Standard 6 HEPA filters with 18M² total filter area to minimize blockage probability
  • Programmable pulse cleaning system with adjustable cleaning intervals to eliminate manual maintenance
  • External large-capacity dust collector for convenient waste disposal
  • Standard remote/local switch functionality for flexible operation and equipment integration
  • Cooling louver and cooling fan system to enhance heat dissipation and reduce motor load
  • Movable universal wheels with brakes for easy machine relocation
  • Compact footprint with gray-white color scheme compatible with most industrial equipment
  • Reinforced sheet metal construction with laser cutting, bending, welding, grinding, polishing, spraying, and high-temperature baking paint treatments
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
Control Panel
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
Cooling Louver / Cooling Fan
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
Water Separator
High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
2 Suction Ports
Technical Specifications
Specification Unit YS-400P YS-500P YS-700P
Power Supply VAC 380VAC/50HZ
Rated Power kW 4 5.5 7.5
Air Flow m³/h 440 530 530
Degree of Vacuum Kpa -29 -30 -32
Main Filter Area m² 18 18 18
Filtration Accuracy μm 0.3 0.3 0.3
Noise dB 70 74 76
Equipment Suction Diameter mm 40/50 40/50 40/50
Barrel Capacity L 15 15 15
Power Cord Length m 8 8 8
Air Pressure Mpa 1Kpa ≥ work value ≥ 0.4Kpa
Size mm 900 × 600 × 1450
Cleaning Method Pulse Cleaning
