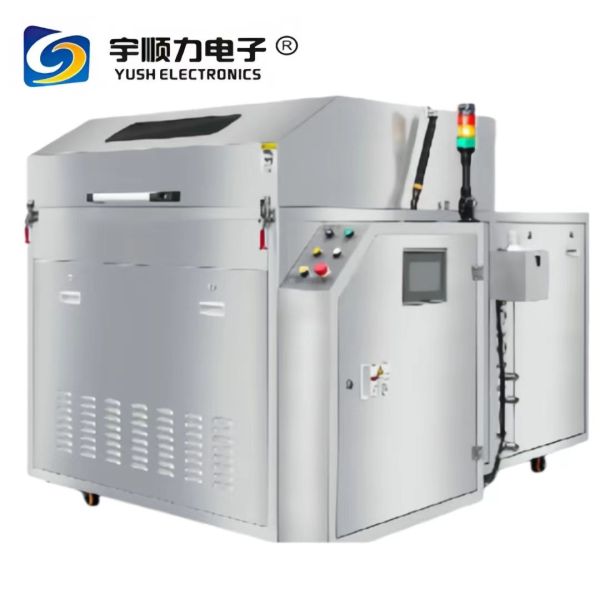

Easy One-Button Operation High Pressure Clean 1000mm X H 200mm Squeegee Cleaning Machine
Easy One-Button Operation High Pressure Clean 1000mm X H 200mm Squeegee Cleaning Machine
Easy One-Button Operation High Pressure Clean 1000mm X H 200mm Squeegee Cleaning Machine
Easy One-Button Operation High Pressure Clean 1000mm X H 200mm Squeegee Cleaning Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YS-4200
MOQ :
1 set
Price :
$15,800-16,800 / set
Weight :
500KG
Cleaning basket size :
Φ1000mm x H 200mm
Spray unit :
Upper/lower/front side,720°all-around spray
3-level filter system :
1mm /50um/20um filters
Dilution capacity :
80L
Rinse tank capacity :
80L
Clean spray pressure :
5~6 kg/cm2
Clean time :
5~15min
Rinse time :
1~3min
Dry time :
10~30min
Clean pump power :
2.2KW
Clean detergent power :
9KW
Hot air power :
9KW
Air blower power :
4.0KW
Machine size :
L1380 x W2100 x H 1400 (mm)
Description
Easy One-Button Operation High Pressure Clean 1000mm X H 200mm Squeegee Cleaning Machine
Easy One-Button Operation High Pressure Clean 1000mm X H 200mm Squeegee Cleaning Machine Easy One-Button Operation High Pressure Clean 1000mm X H 200mm Squeegee Cleaning Machine
Key Features
  • Total SUS 304 structure, resistant to acid and alkali corrosion, firm and attractive design
  • 1 meter diameter large cleaning basket capable of cleaning 20-40 fixtures simultaneously
  • Three-direction spray system (upper, lower, front) with rotating basket for comprehensive cleaning
  • High pressure cleaning up to 6kg/cm² for thorough fixture cleaning
  • PLC program control with touch-panel operation for easy parameter adjustment
  • One-button automated cycle: high pressure clean, rinse, and hot air drying
  • Clean liquid and water heating with temperature maintenance function
  • Closed-loop filtration system for detergent and rinse water recycling
  • Automatic solution and water fill/discharge functions
  • Ready-to-use squeegees after complete cleaning and drying cycle
Technical Specifications
Item YS-4200
Cleaning Basket Size Φ1000mm x H 200mm (special sizes available)
Spray Unit Upper/lower/front side, 720° all-around spray
3-Level Filter System 1mm / 50um / 20um filters
Dilution Capacity 80L
Rinse Tank Capacity 80L
Clean Spray Pressure 5-6 kg/cm²
Clean Time 5-15 minutes
Rinse Time 1-3 minutes
Dry Time 10-30 minutes
Rinse Detergent Heat Temperature Room temperature to 80°C
Rinse Water Heat Temperature Room temperature to 80°C
Hot Air Heat Temperature Room temperature to 90°C
Clean Pump Power 2.2KW
Clean Detergent Power 9KW
Hot Air Heat Power 9KW
Air Blower Power 4.0KW
Air Supply 0.5-0.7Mpa
Power Supply 3P, AC 380V, 50/60HZ, 33KW
Machine Size L1380 x W2100 x H 1400 (mm)
Machine Weight 500KG
Manufacturer Profile
YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in Jiangsu, China's manufacturing hub. The company specializes in professional PCB separator and depanelizer electronic equipment machinery. With advanced production equipment and an experienced development team (half with over 10 years industry experience), YUSH has been innovating since 2004 in PCB separation technology.
The company focuses on product quality, safety, and innovation, delivering high-performance, cost-effective solutions that improve production yields and enhance customer competitiveness. YUSH offers various PCB separation solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types. Their quality products at reasonable prices have earned them a global customer base, establishing YUSH as one of China's leading PCB separator production bases.
