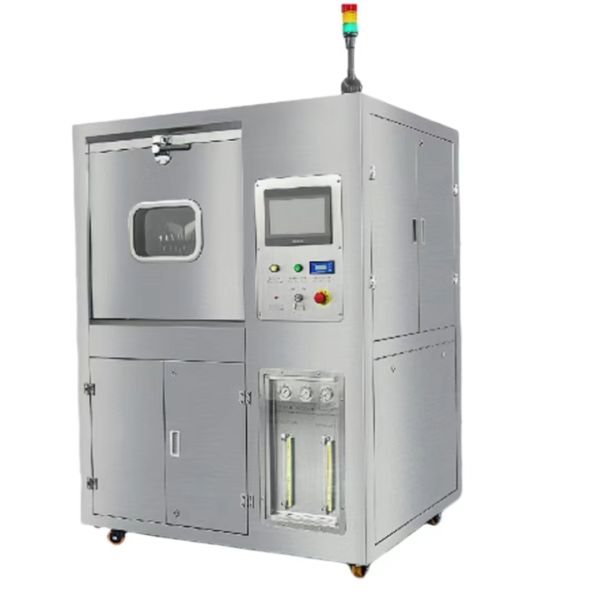

High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine
High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine
High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine
High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YS-5600
MOQ :
1 set
Price :
$13,800-16,800 / set
Weight :
460 KG
Cleaning basket size :
L610 x W560 x H100 (mm) x2 layers
Spray tank capacity :
17L
Concentrate capacity :
32L
Dilution capacity :
60L
Clean time :
5~20min
Rinse time :
1~2min/times
Rinse times :
1~99times
Hot air dry time :
10~30min
Detergent heat temp :
Room temp~60°C
PCB hot air temp :
Room temp~99°C
Resistivity range :
0~18MΩ
DI water supply :
30~65L/Min
DI water pressure :
0.2~0.4Mpa
Power supply :
AC380V/50A/50HZ,30KW,0.5Mpa
Description
YS-5600 High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine
High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine
Key Features
  • Effectively cleans rosin flux, water-soluble flux, non-clean flux, solder paste and other organic/inorganic contaminants
  • 2-layer cleaning basket: 610mm(L) × 560mm(W) × 100mm(H) per layer
  • Large observation window for visible process monitoring
  • Heated detergent system improves cleaning efficiency and reduces cycle time
  • Easy operation interface with quick parameter settings and password protection
  • Internal filtration system for detergent reuse with real-time DI water resistivity monitoring (0-18 MΩ)
  • Compressed air system recovers remaining detergent from pumps and pipes, saving up to 50% detergent
  • High cleanliness standards meeting IPC-610D Class I requirements for ionic contamination
  • Durable SUS304 stainless steel construction
Technical Specifications
ModelYS-5600
Cleaning Basket SizeL610 × W560 × H100 (mm) × 2 layers
Spray Tank Capacity17L
Concentrate Capacity32L
Dilution Capacity60L
Clean Time5-20 minutes
Rinse Time1-2 minutes per cycle
Rinse Cycles1-99 times
Hot Air Dry Time10-30 minutes
Detergent Heating TemperatureRoom temperature to 60°C
PCB Hot Air Dry TemperatureRoom temperature to 99°C
Resistivity Range0-18 MΩ
Detergent Filter0.22μm
Rinse Water Filter0.22μm
Air Filter10μm
DI Water Supply30-65 L/Min
DI Water Pressure0.2-0.4 MPa
Vent SizeΦ76 × H50 (mm)
Power/Air SupplyAC380V/50A/50HZ, 30KW, 0.5MPa
Machine DimensionsL1300 × W1200 × H1850 (mm)
Machine Weight460 kg
Manufacturer Profile
YUSH Electronic Technology Co., Ltd. was founded in 2005 and is located in Jiangsu, China's manufacturing hub. The company specializes in professional PCB separator and depaneling electronic equipment machinery.
YUSH features advanced production equipment and an experienced development team, with half of the staff having over 10 years of experience in the electronic equipment industry.
Since beginning development in 2004, the company has focused on product quality, safety, and innovation, producing high-quality, stable-performance, cost-effective PCB separation equipment including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types.
YUSH products serve customers worldwide and the company has become one of China's largest PCB separator production bases.
