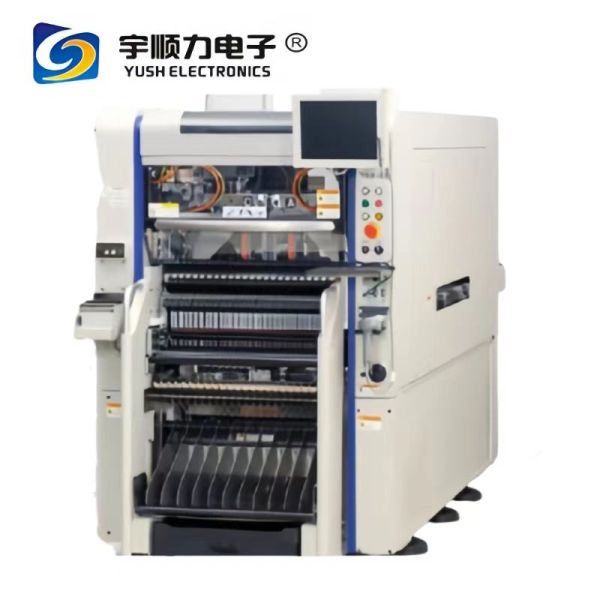

Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter
Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter
Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter
Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter
Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter
Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter
Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter
Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter
Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter
Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$9,800 / set
Weight :
2100 KG
Applicable PCB :
L700xW460mm to L50xW50mm
Speed :
200,000CPH (When using RS head)
Applicable components :
0201* to 6.5mm (Height 2.0mm or less)
Mounting accuracy :
+/-35μm (25μm) Cpk ≥1.0 (3)
Number of feeders :
Max. 80 feeders with RS heads
Power supply :
3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply :
0.45MPa or more, in clean, dry state
External dimension :
L1,000×W2,100×H1,550mm
Speed (MU head) :
58,000CPH (When using MU head)
Applicable components (MU) :
0402 to 45×100mm (Height 15mm or less)
Mounting accuracy (MU) :
+/-40μm (30μm) Cpk ≥1.0 (3σ)
Number of feeders (MU) :
92 feeders with MU or FL heads
Max feeders (RS+MU) :
Max. 84 feeders with RS x 2 + MU x 2 heads
Component height (MU) :
Height 25.5mm or less
Description
Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter
The Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter delivers exceptional performance with revolutionary productivity and precision mounting capabilities for advanced electronics manufacturing.
Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter
Key Features
  • Revolutionary productivity of 200,000 CPH - world's fastest speed on a compact platform
  • Highest productivity in the world for SMT mounting applications
  • Flexible response for different production configurations and requirements
  • Advanced technology supporting high mounting quality and superior machine operating rate
Technical Specifications
Model 4-Beam, 4-Head Spec. (YS-40R4) 2-Beam, 2-Head Spec. (YS-40R2)
Applicable PCB L700×W460mm to L50×W50mm
Speed 200,000 CPH (When using RS head) 58,000 CPH (When using MU head)
Applicable components 0201* to 6.5mm (Height 2.0mm or less) *option
03015 to 45×60m (Height 15mm or less)		 0402 to 45×100mm (Height 15mm or less)
0603 to 45×100mm (Height 25.5mm or less)
Mounting accuracy +/-35μm (25μm)
Cpk ≥1.0 (3σ)		 +/-40μm (30μm)
Cpk ≥1.0 (3σ)
Number of component types Max. 80 feeders with RS heads
Max. 88 feeders with MU heads
Max. 84 feeders with RS x 2 + MU x 2 heads
* 8mm width tape conversion		 92 feeders with MU or FL heads
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply source 0.45MPa or more, in clean, dry state
External dimension L1,000×W2,100×H1,550mm
Weight Approx. 2,100 kg
