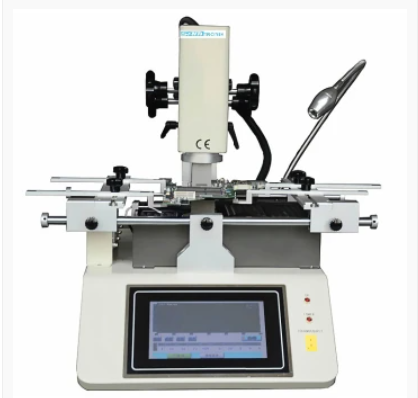

Automatic BGA Rework Station YS-520
Automatic BGA Rework Station YS-520
Automatic BGA Rework Station YS-520
Automatic BGA Rework Station YS-520
Automatic BGA Rework Station YS-520
Automatic BGA Rework Station YS-520
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
Model Number :
YS-520
Certification :
CE
MOQ :
1 set
Price :
$6,000 / set
Weight :
20kg
Voltage :
220Vac
Power :
3800W
Upper heating power :
Max. 800W
Lower heating power :
Max. 1200W
Infrared heating power :
Max. 1800W
PCB size :
Max300×280mm Min 10×10mm
Chip size :
Max60×60mm Min 1×1mm
PCB thickness :
0.3-5mm
Temperature accuracy :
±2 degree
Temperature sensor :
1pcs
Overall dimension :
L460×W480×H500mm
Nozzle rotation :
360 degree
PCB location :
V-shape card slot+universal jigs
Heating zones :
Independent 3 zones
Description
Automatic BGA Rework Station YS-520
Product Overview
The BGA Rework Station YS-520 is a professional-grade rework system designed for precision BGA chip repair and rework operations with advanced temperature control and positioning capabilities.
Automatic BGA Rework Station YS-520
Key Features
  • High sensitivity industrial touch screen interface
  • Advanced temperature control module with microcontroller precision
  • Real-time temperature curve display and analysis on touch screen
  • Storage capacity for hundreds of user temperature curve profiles
  • Laser positioning system for fast, accurate chip center location
  • Independent 3-zone heating system with ±2°C temperature accuracy
  • 360° rotatable titanium alloy BGA nozzle for versatile chip access
  • High accuracy K-type thermocouple closed-loop control
  • Built-in vacuum pen, work light, cross cooling fan, and laser light
  • Advanced alarm system with intelligent air regulation software
  • CE certified with emergency stop switch and automatic power protection
  • Dual over-temperature protection for safety
Technical Specifications
Power Supply AC220V±10%, 50/60Hz
Total Power 3800W
Heating Power Upper: Max 800W
Lower: Max 1200W
Infrared: Max 1800W
PCB Location V-shape card slot + universal jigs and fixture
Temperature Control K-type thermocouple closed-loop, ±2°C precision
Electrical Components Touch screen + temperature module + microcontrollers
PCB Size Range Max: 300×280mm, Min: 10×10mm
Chip Size Range Max: 60×60mm, Min: 1×1mm
PCB Thickness 0.3-5mm
Temperature Sensors 1 piece
Dimensions 460×480×500mm (L×W×H)
Weight 20kg
Packaging & Shipping
Automatic BGA Rework Station YS-520
Our Services
Automatic BGA Rework Station YS-520
Company Information
YUSH Electronic Technology Co., Ltd is a specialized manufacturer and trader focused on the research, development, and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, our facility benefits from convenient transportation access. All products comply with international quality standards and are appreciated in markets worldwide. We welcome custom orders and look forward to establishing successful business relationships globally.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China since 2014, we serve global markets including Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Mid East (5%). Our team consists of 301-500 professionals.
How do we guarantee quality?
We provide pre-production samples before mass production and conduct final inspections before shipment to ensure consistent quality standards.
What products do we offer?
PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.
Why choose us?
Founded in 2004 and located in Jiangsu's manufacturing hub, we bring professional expertise in PCB separator and depanelizer electronic equipment machinery with advanced production facilities and experienced technical teams.
What services do we provide?
Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
