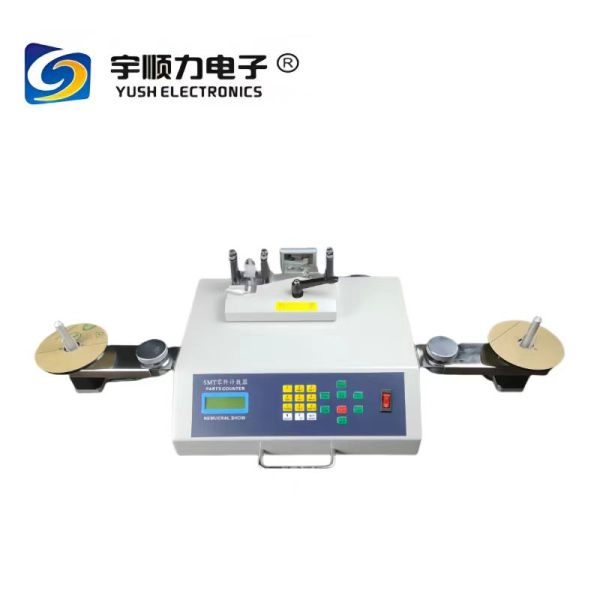

Convenient Operate AC220V/110V 50Hz/60Hz Leak Detection SMD Parts Counter
Convenient Operate AC220V/110V 50Hz/60Hz Leak Detection SMD Parts Counter
Convenient Operate AC220V/110V 50Hz/60Hz Leak Detection SMD Parts Counter
Convenient Operate AC220V/110V 50Hz/60Hz Leak Detection SMD Parts Counter
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YS-802
MOQ :
1 set
Price :
$2,300-2,800 / set
Weight :
11kg
Power source :
AC220V/110V,50Hz/60Hz
Count speed :
5000PCS /15 second
Rated power :
30W
Count range :
From -99999 to 99999pcs
Machine dimensions :
L774*W350*H184mm
Applicative tape diameter :
All kinds of SMD tape
Pitch :
2.4.8.12.16.20.24.28.32.36.40.44.48.52.56mm
Applicative tape width :
8,12,16,24,32,44,56mm
Core components :
Motor, Pump
Leak detection :
Yes
Buzzer alert :
Yes
Counting direction :
Forward and reverse
Error rate :
Zero error
Packaging :
Carton and foam plastics
Description
Convenient Operate AC220V/110V 50Hz/60Hz Leak Detection SMD Parts Counter
Convenient Operate AC220V/110V 50Hz/60Hz Leak Detection SMD Parts Counter Convenient Operate AC220V/110V 50Hz/60Hz Leak Detection SMD Parts Counter
Function Information
  • Leak detection SMD parts counter with easy operation, compact size, and convenient usage
  • Accurate bidirectional counting (forward and reverse) with zero error, specifically designed for SMD parts
  • Built-in leak detection function stops machine and activates buzzer alert when parts are missing
  • Programmable target count setting with automatic stop function for convenient counting, issuing, and receiving SMD spare parts
  • Compatible with scanning and barcode printing systems for enhanced operational efficiency
  • Compact, lightweight design for easy portability, ideal for SMD manufacturing facilities
Technical Specifications
Power Source AC220V/110V, 50Hz/60Hz
Count Speed 5000 PCS / 15 seconds
Rated Power 30W
Count Range -99999 to 99999 pcs
Machine Dimensions L774 × W350 × H184 mm
Weight 11 kg
Applicable Tape Diameter All types of SMD tape
Pitch 2, 4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52, 56 mm
Applicable Tape Width 8, 12, 16, 24, 32, 44, 56 mm
Packaging Carton and foam plastics
Manufacturer Profile
YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in Jiangsu, China's world manufacturing hub. The company specializes in professional PCB separator and PCB depaneling electronic equipment machinery. With advanced production and processing equipment, YUSH maintains an experienced development and manufacturing team, half of whom have over 10 years of experience in the electronic equipment industry.
Since 2004, the company leadership has invested in developing and manufacturing PCB separators and depaneling machines. YUSH prioritizes product quality, safety, and innovation, producing high-quality, stable-performance, cost-effective products that improve production yields and enhance customer competitiveness. The product range includes manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router PCB separators and depaneling machines. With global customer reach, YUSH has become one of China's largest PCB separator production bases.
