Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YSV-N200
MOQ :
1 piece
Price :
$9,999 / piece
Weight :
500KG
Pre-heater count :
1
Pre-heater length :
450mm
Body size :
1400*1200*1600
Outside dimension :
2100*1200*1600
Power consumption :
9KW/3-5KW
Air supply :
0.5MPa
Preheater power :
220V 5KW
Temperature range :
Room temperature-300ºC
Solder pot capacity :
180KG
Solder pot power :
380V 6KW
Wave motor power :
500W 220V
PCB width :
50-250mm
Conveyor speed :
300-1800mm/min
Flux capacity :
3.2L
Description

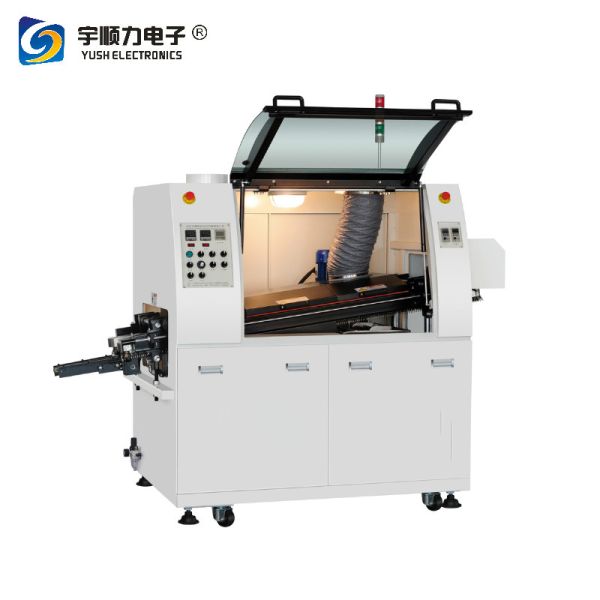

Lead Free Automatic Dual Wave Soldering Machine
Technical Specifications
Specification Details
Model No YSV-N200
Number of Pre-heater 1
Pre-heater passage 450mm
Body size 1400*1200*1600
Outside dimension 2100*1200*1600
Weight 500KG
Component lead Within 10 mm
Total/steady consumption 9KW/3-5KW
Air supply 0.5MPa
Preheating style IR (standard)
Preheater consumption 220V 5KW
Control method Press key + PLC (Option: touch screen, PC)
Range of temp. setpoint Room temperature - 300ºC
Preheating time About 10-15mins for setting 150ºC
Solder Application Lead-free / Sn-Pb
Solder pot capacity 180KG
Solder pot temperature 300ºC
Solder pot consumption 380V 6KW
Solder temp. control method PID & SSR
Wave motor consumption 500W 220V
Solder melting About 120mins for setting 250ºC
PCB width 50-250mm
Conveyor speed 300-1800mm/min
Conveyor direction L→R (R→L optional)
Conveyor inclination 4-7º
Flux pressure 3-5 bar
Flux capacity 3.2L
Lead Free Automatic Dual Wave Soldering Machine Motor Manufacturing Plant Provided Hot Air Vga Socket Soldering Machine 100% 700
Key Features & System Advantages
  • Automatic conveying power system with auto synchronous board feeding functions
  • Solder Pot peak uses frequency conversing speed adjustment for independent wave height control
  • Fluxer system using transverse Japanese spray nozzle with pneumatic cylinder and PLC control
  • PLC control system ensures reliability and stability
  • Pre-heaters using Infrared heating elements for efficient heat radiation and fast ramp up
  • Special alloy solder fingers with strengthened double v-groove design
  • Imported high frequency conversion solder motor with independent control
  • Modularized pre-heater passage design for environmental compliance and easy cleanup
  • Three independent temperature control zones for excellent heat preservation and uniformity
  • Timer startup feature for solder pot with 90-minute melting time
  • Automatic finger cleaner ensures solder finger cleanliness
  • Intelligent monitoring and alarm system for stable performance and operator safety
