Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying
Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying
Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying
Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying
Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying
Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying
Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying
Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying
Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying
Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$9,000-30,000 / set
Weight :
500 kg
Power :
10 kW
Voltage :
220V/380V
Max Stencil Size :
L800 x W750 x H40(mm)
Wash time :
2~5min
Dry mode :
Hot air dry
Power supply :
AC380V,50/60HZ,33KW
Chemical tank :
50x2pcs
Resin time :
2~5min
Dry time :
3~5min
Liquid heat temp :
0~60℃
Dry temp :
0~90℃
Wash heat power :
9KW
Resin heat power :
9KW
Hot air power :
6KW
Description

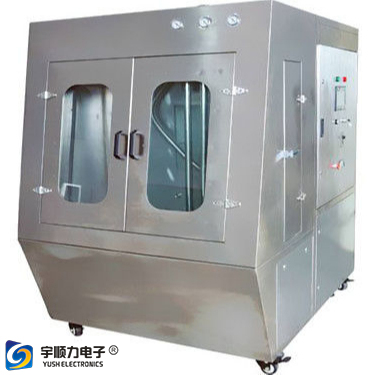

Large Size SMT PCB / Stencil Resin Cleaning Machine with Hot Air Drying
Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying
Recommended Stencil Cleaning Machine AC380V - Wash, Resin and Dry 3-in-1 System
  • Pneumatic stencil cleaner designed for industrial applications
  • High-quality electrical pump with high-pressure wash, resin, and dry processes
  • Total SUS 304 stainless steel structure resistant to acid and alkali corrosion
  • Durable construction with over 10-year lifespan
  • One-key automated operation with preset cleaning procedures
  • Versatile cleaning capability for SMT stencils, silk screens, print jigs, squeegees, large PCBA, and misprint PCBs
  • Completely closed spray developing process for clean workshop environment
  • Premium electrical and pneumatic components from Germany, USA, and Japan
  • Modular design for easy maintenance and service

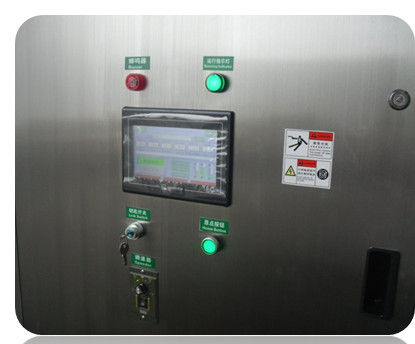

  • Touch panel interface for quick parameter setting including chemical temperature, wash time, resin time/temperature, and dry time/temperature
Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying
Technical Specifications
Maximum Stencil Size L800 x W750 x H40 (mm)
Chemical Tank Capacity 50L x 2 units
Wash Time 2~5 minutes
Resin Time 2~5 minutes
Dry Time 3~5 minutes
Resin Cycle 1~99 cycles
Cleaning Chemical Water-based chemicals
Resin DI Water Open loop DI water or closed loop chemical spray
Drying Mode Hot air drying
Liquid Heating Temperature 0~60℃
Drying Temperature 0~90℃
Wash Heating Power 9KW
Resin Heating Power 9KW
Hot Air Power 6KW
Clean/Resin Filter 0.45μm
Resistivity Range 0~18MΩ
Power Supply AC380V, 50/60Hz, 33KW
Machine Dimensions 1580 x 1180 x 1860mm (L x W x H)
Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying
