50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
Specifications
Place of Origin :
China
Brand Name :
YUSH
MOQ :
1 set
Price :
$12,000 / set
Weight :
320 kg
Power :
10 kW
Voltage :
220V, 380V
Clean Liquid Capacity :
50L
Clean Time :
2~4 min
Dry Time :
2~5 min
External Air Supply :
0.4Mpa~0.6Mpa
Air Consumption :
400~600L/Min*2
Air Outlet Size :
Φ125*25mm
Dimension :
980mm(L)*700mm(W)*1730mm(H)
Tin Filter Method :
Three class filter(10μm,5μm,1μm)
Stencil Size :
Standard 29 inch and below
Rinse Time :
2~4 min
Cleaning Method :
Rotary double side pressure injection and high pressure air praying
Core Components :
PLC, Gearbox, Motor, Pump
Description

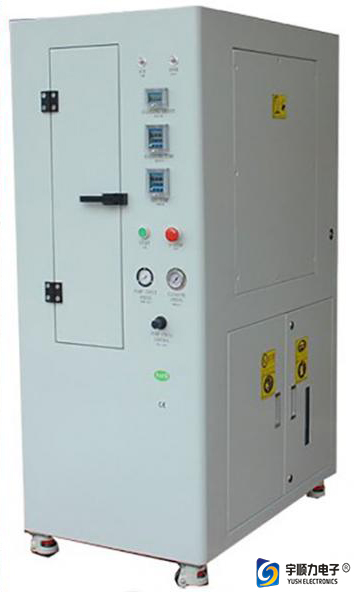

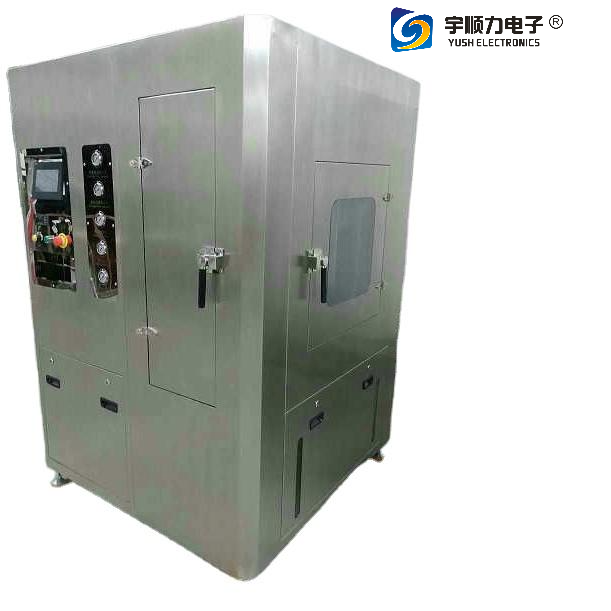

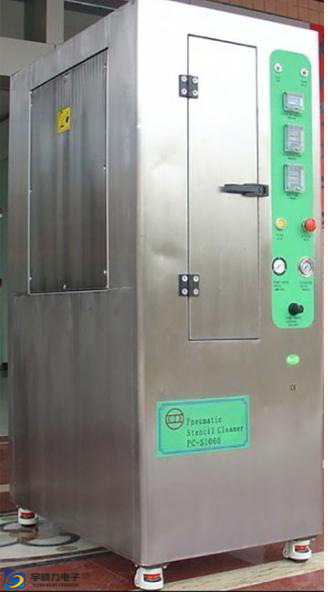

YS-50L PCB Cleaning Equipment with High Precision Tri-Filtering System
Industrial-grade 50L PCB cleaning machine designed for stencil, glue screen, and copper screen cleaning applications. Features complete pneumatic operation and advanced filtration technology.
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
Technical Specifications
Parameter Specification
Application Stencil, glue screen, copper screen
Application Stencil Size Standard 29 inch and below
Clean Liquid Capacity Max 50L, Min 20L
Cleaning Fluid Volume 50L
Cleaning Method Rotary double side pressure injection and high pressure air spraying (cleaning and drying)
Clean Time 2~4 min (stencil and copper net)
Rinse Time 2~4 min (stencil and copper net)
Dry Time 2~5 min
External Air Supply 0.4Mpa~0.6Mpa
Air Consumption 400~600L/Min*2
Air Outlet Size Φ125*25mm
Weight 320Kg
Dimensions 980mm(L) × 700mm(W) × 1730mm(H)
Tin Filter Method Three class filter (10μm, 5μm, 1μm)
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
Key Features & Benefits
  • Completely pneumatic operation eliminates fire risk
  • Closed-loop cleaning system minimizes solvent consumption

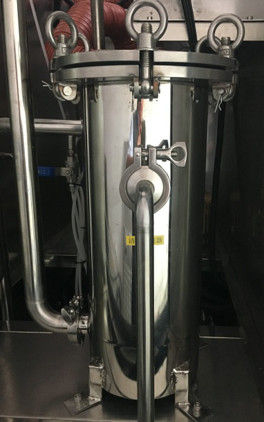

  • High precision tri-filtering system (10μm, 5μm, 1μm)

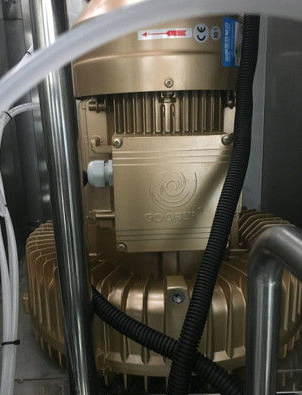

  • Special air exhaust design reduces cleaning chemistry consumption
  • Excellent adaptability for compressor air (operates at only 0.45Mpa)
  • One-button operation for easy control of cleaning and drying processes
  • Stainless steel cabinet provides reliability and resistance to acid/alkali chemicals
  • Specifically designed for cleaning solder paste, glue, and other contaminants
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering System
