High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer
High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer
High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer
High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer
High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer
High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$35,000 / set
Voltage :
220V
Power :
1.7KW
Weight :
1170
Dimensions :
1245*1230*1900
Core Components :
PLC, Engine, Gearbox, Bearing, Pressure Vessel, Motor
Table Speed :
Adjustable (low, normal, high)
Axis Control :
X, Y, Z three-axis motion
Inclined Angle :
Keyboard controlled
Voltage Control :
Software set
Current Control :
Software set
Image Settings :
Brightness, contrast, auto gain, exposure
Pause Time :
Adjustable for program conversion
Anti-collision System :
Maximizes tilt and observation
Automatic Analysis :
Diameter, cavity proportion, area, roundness of BGA
CNC Programming :
Mouse-click programmable
Description
High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System
Advanced microfocus X-ray inspection system designed for precision industrial applications with comprehensive technical capabilities.

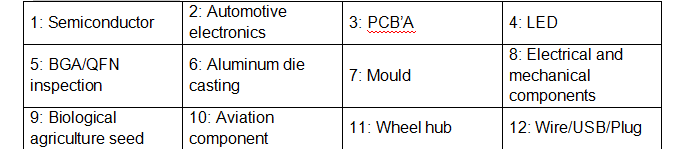

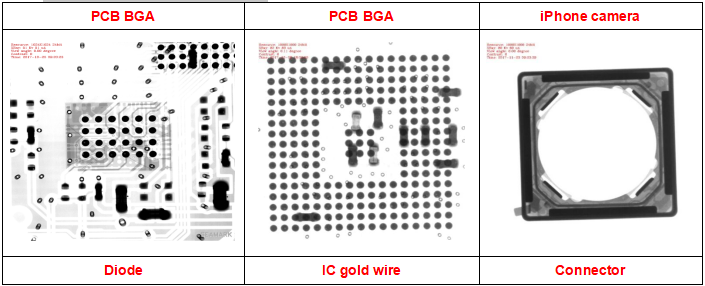

Applications
High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer

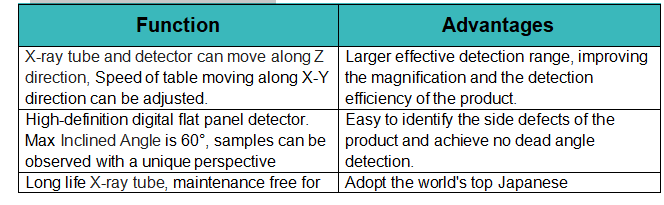

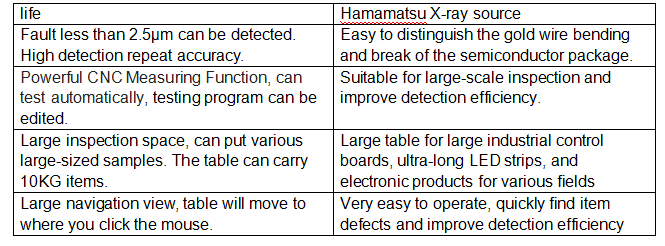

Functions and Features
High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer

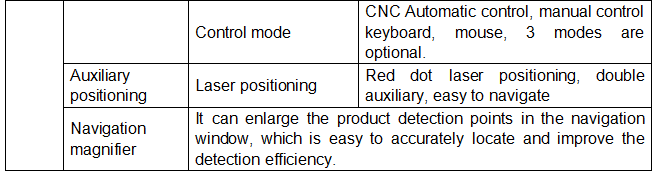

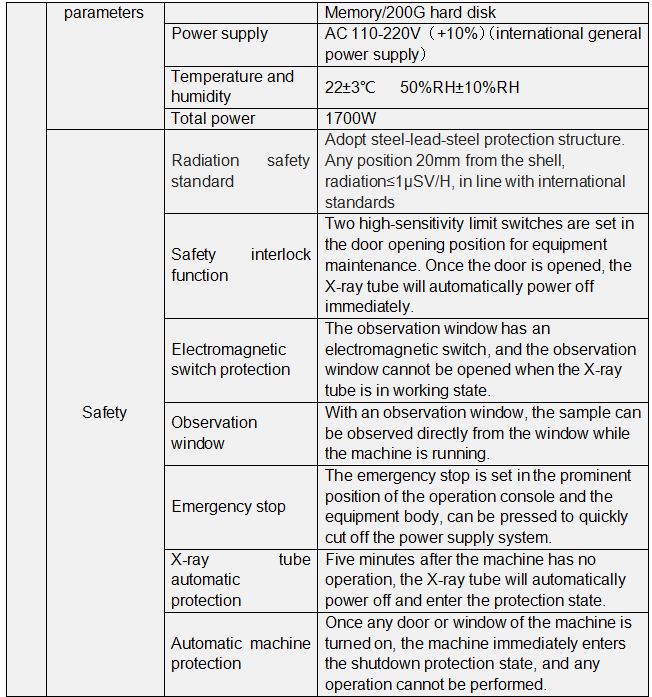

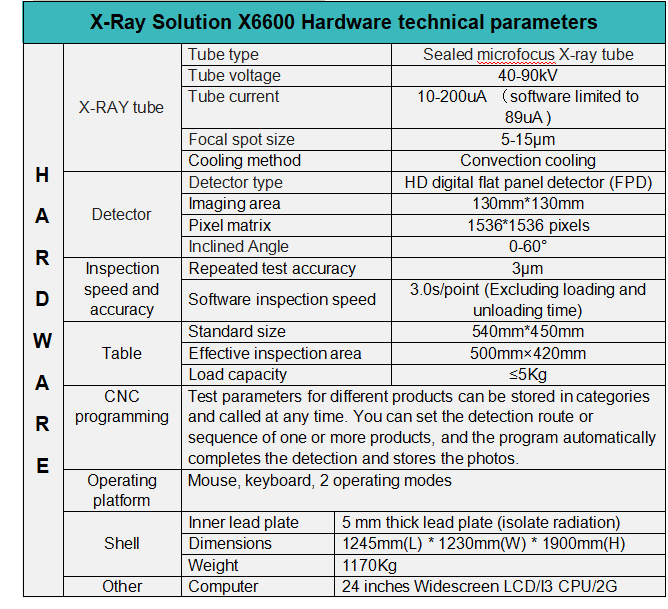

Hardware Technical Parameters
High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer

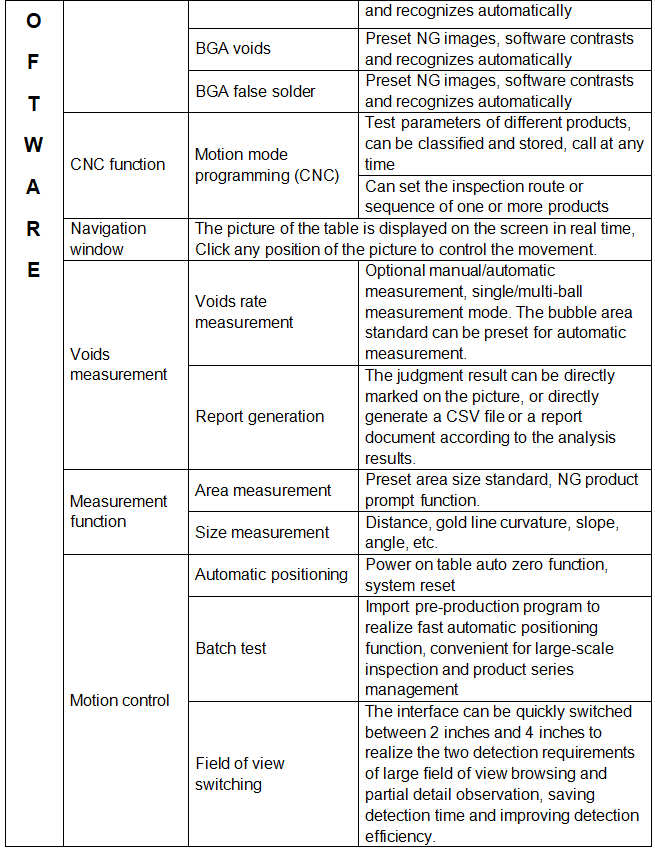

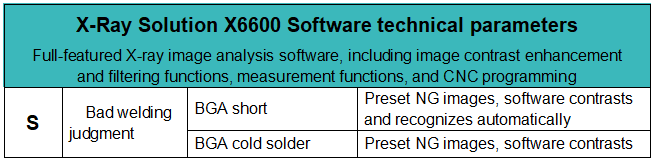

Software Technical Parameters
High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer
Table Control System
  • Adjustable table speed controlled by spacebar: low, normal, and high speed settings
  • X, Y, Z three-axis motion and inclined angle control via keyboard
  • Large navigator view with clear navigation imaging - table moves to mouse-click locations
CNC Programming Capabilities
  • Simple mouse-click programming interface
  • Object table moves along X, Y directions for positioning
  • X-ray tube and detector move along Z direction for precise positioning
  • Software-controlled voltage and current settings
  • Comprehensive image settings: brightness, contrast, auto gain, and exposure
  • Adjustable pause time for program conversion
  • Anti-collision system for maximum tilt and workpiece observation
  • Automatic analysis of diameter, cavity proportion, area, and BGA roundness

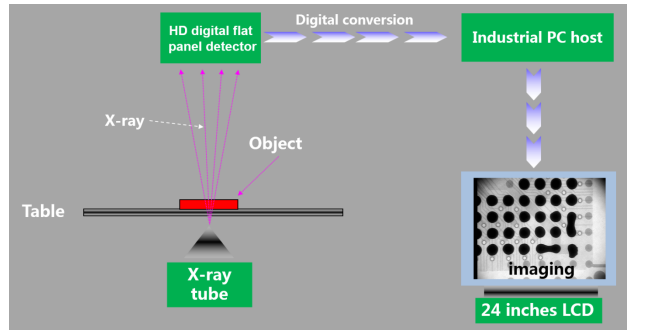

X-Ray Working Principle
High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer

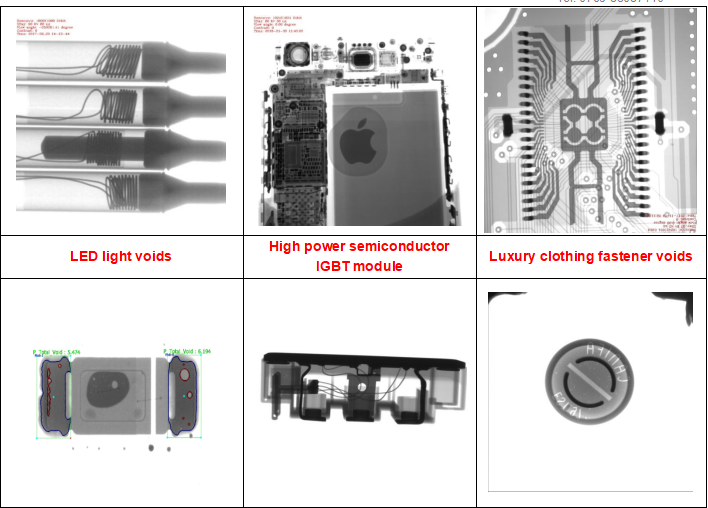

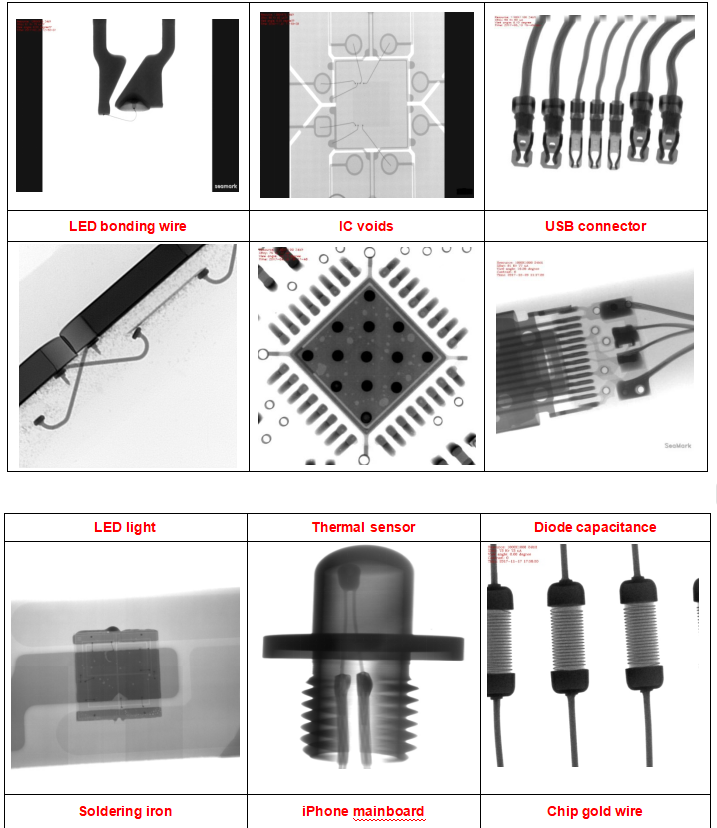

X-RAY Applications
High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer
