High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$36,500 / set
Weight :
750 KG
Core components :
PLC, Engine, Bearing, Gearbox, Motor
Voltage :
220V
Voltage Range :
40-90kV
Current Range :
10-200 μA
Focal spot size :
5-15μm
Detection accuracy :
2.5μm
Pixel matrix :
1536*1536 pixels
Magnification :
80X
Image speed :
20fps
Standard size :
380mm*240mm
Total power :
1500W
Z direction movement :
Yes
X-Y speed adjustable :
Yes
X-ray tube lifespan :
Maintenance free
Description

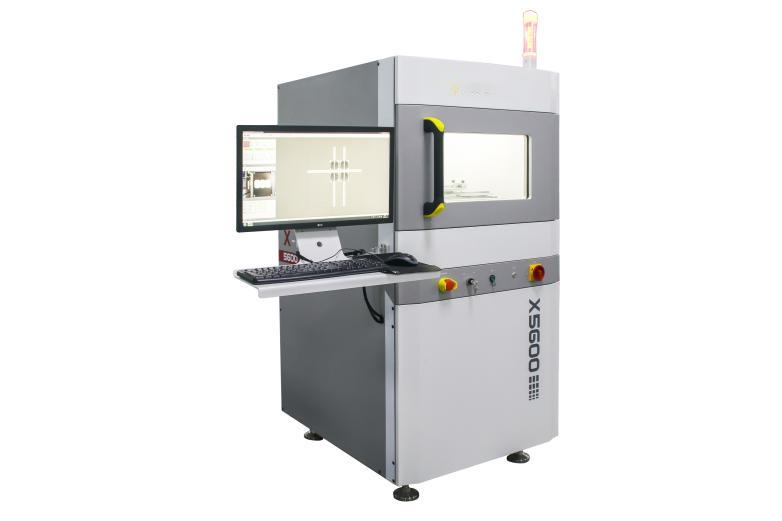

High Quality and High Efficiency X-Ray Solution YSL-X5600
Product Functionality

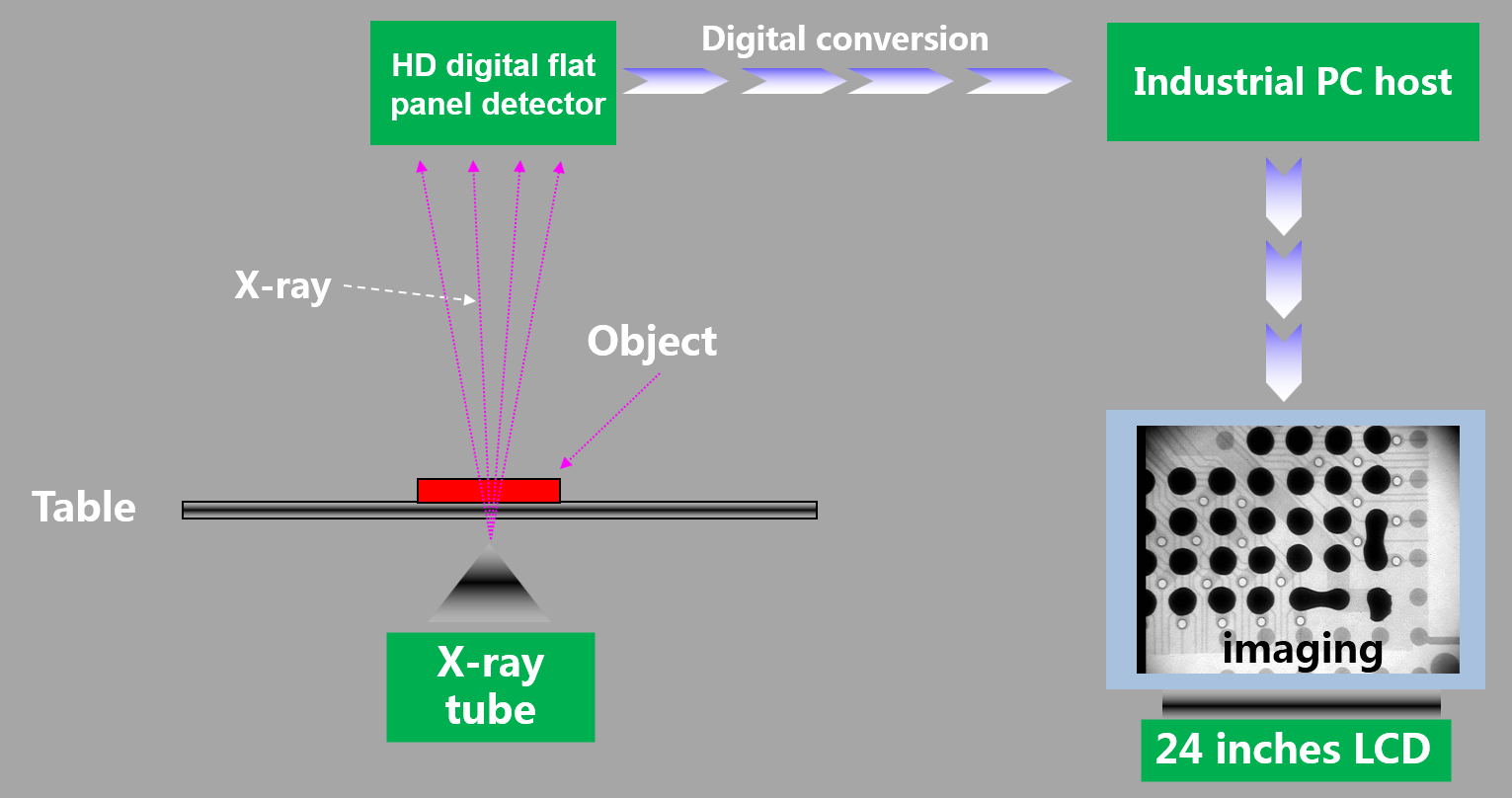

  • X-ray detector moves along Z direction with adjustable X-Y table movement speed
  • Long life X-ray tube, maintenance free for life
  • Detects faults less than 2.5μm with high repeat accuracy
  • Compact design for easy placement and space efficiency
  • Large navigation view with mouse-click table positioning
High Quality and High Efficiency X-Ray Solution YSL-X5600
Application Advantages
  • Miniaturized equipment for easy installation and operation

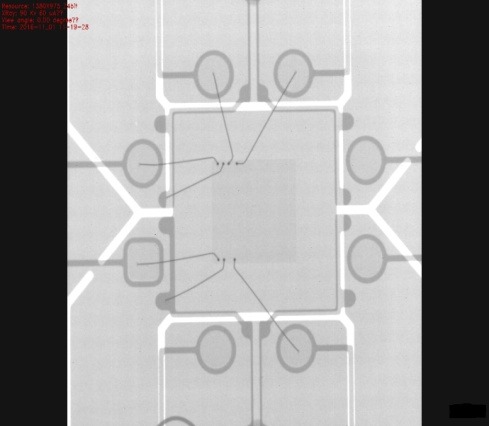

  • Applicable to Chip, BGA/CSP, Wafer, SOP/QFN, SMT and PTU packaging inspection
  • Suitable for sensors and other field product inspection
  • High resolution design for optimal imaging in minimal time
  • Infrared automatic navigation and positioning for quick location selection
  • CNC inspection mode for rapid multi-point array inspection
  • Inclined multi-angle inspection for easier defect detection
  • Simple software operation with low operating costs
  • Extended equipment lifespan
High Quality and High Efficiency X-Ray Solution YSL-X5600
Technical Specifications
Pixel Matrix 1536 × 1536 pixels
Magnification 80X
Image Speed 20fps
Standard Size 380mm × 240mm
Total Power 1500W
