0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil
0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil
0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil
0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil
0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil
0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$10,000 / set
Weight :
230 kg
Power :
3 kW
Voltage :
220V
Stencil size :
750mm × 750mm × 40mm
Liquid capacity :
40L
Wash method :
360° double side rotary nozzles
Dry method :
360° double side rotary nozzles
Clean time :
3-5 min
Dry time :
3-5 min
Air pressure :
0.5Mpa ~ 0.7Mpa
Air consumption :
400-600L/min
Vent size :
Φ120xH30mm
Machine size :
800mm × 950mm × 1650mm
Material :
SUS 304
Filter system :
1mm, 20um, 1um
Description

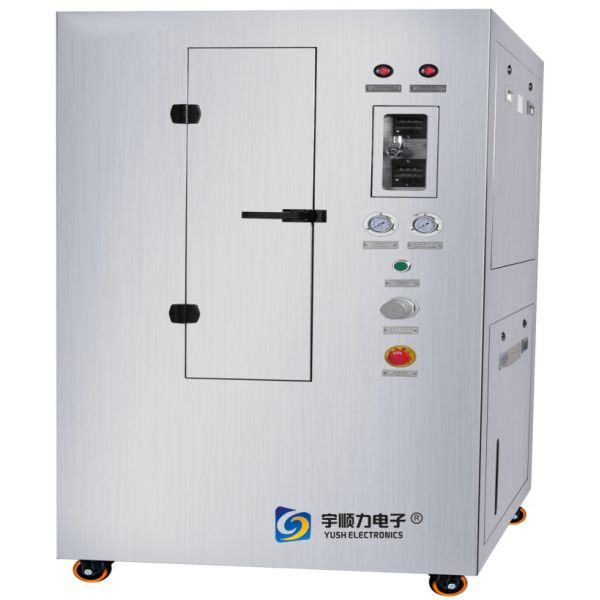

0.5Mpa~0.7Mpa Pneumatic Stencil Cleaning Machine
Professional pneumatic stencil cleaning machine designed for solder paste stencils, glue cooper, and rubber stencils. Model: YS-750
0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil
YS-750 Main Features
  • SUS 304 structure with acid and alkali corrosion resistance, 10-year lifespan
  • All liquid pipes are SUS304 - no plastic pipes
  • Compressed air driven operation - no electric power required, 100% safe with solvents
  • One-button easy operation with automatic clean and dry cycles
  • 360° rotating spray rods on both sides for superior cleaning quality and stable stencil tension
  • Liquid recycling system for low consumption
  • Inner-lock safety door and safety valve - machine stops immediately when opened
  • 3-level precise liquid filtering system for repeated liquid use
  • Superior pneumatic components from world-renowned manufacturers
  • Modular design for easy maintenance

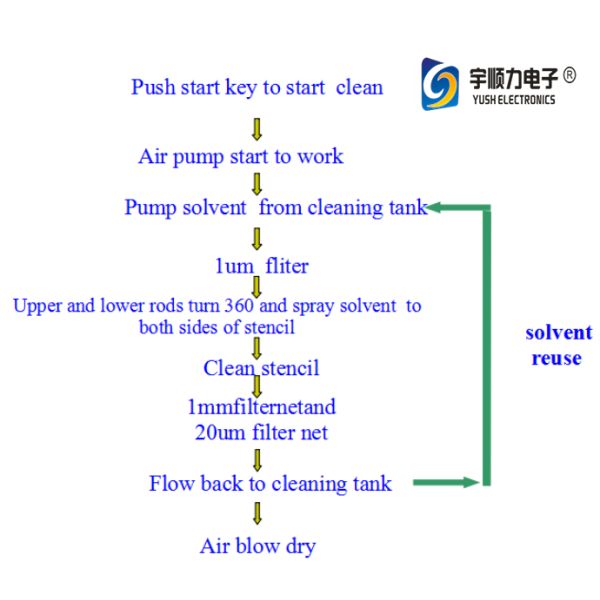

YS-750 Flow Chart
0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil
YS-750 Technical Specifications
S/N ITEM SPEC REMARKS
1 Stencil size 750mm(L) × 750mm(W) × 40mm(H) max
2 Liquid tank capacity 40L max
3 Wash method 360° double side rotary nozzles liquid spray wash
4 Dry methods 360° double side rotary nozzles spray liquid air blow dry
5 Clean time 3-5 min (solder paste stencil)
6 Dry time 3-5 min (solder paste stencil)
7 Filter systems 1mm SUS 304 filter net, 20um filter bag, 1um filter elements Liquid recirculation use
8 Air supply 0.5Mpa~0.7Mpa
9 Air consumption 400-600L/min
10 Net weight 230Kg
11 Vent size Φ120xH30mm
12 Machine size 800mm(L)×950mm(W)×1650mm(H)
Cleaning Results Comparison

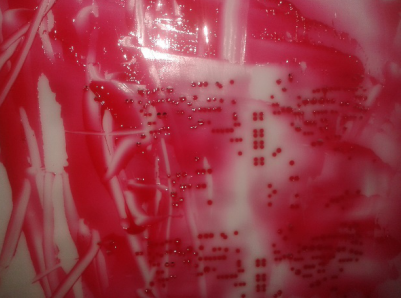

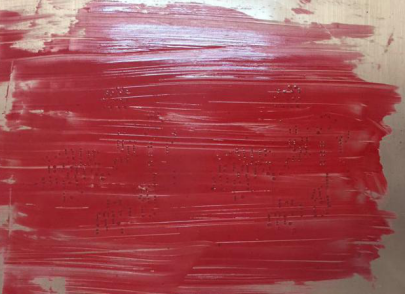

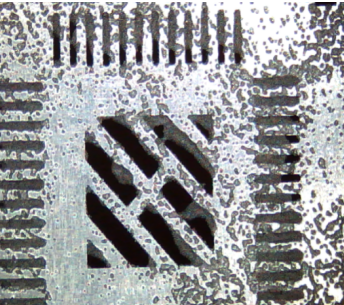

Before Cleaning
0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil 0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil 0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil

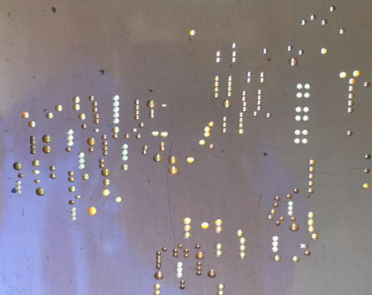

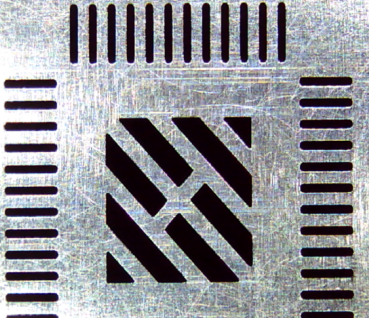

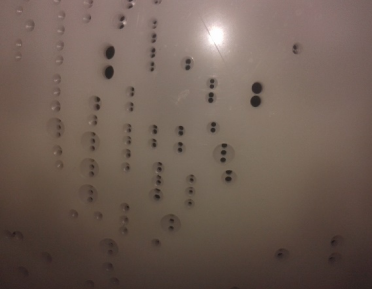

After Cleaning
0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil 0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil 0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil
