Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$4,200 / set
Weight :
73KG
Power :
10 kW
Voltage :
220V, 110V
Drive motor :
stepping motor
Cutting performance :
500mm / S
Repeated accuracy :
± 0.02mm
Resolution :
± 0.01mm
Axis journey :
300 * 300 * 100mm
Repeated cutting accuracy :
< 0.05mm
Board thickness :
0.4mm-4mm
Spindle power :
0.3kw
Spindle speed :
60000 rpm
Machine size :
650 * 550 * 615mm
Data storage :
100-200 groups
Vacuum cleaner power :
1.5kw
Description

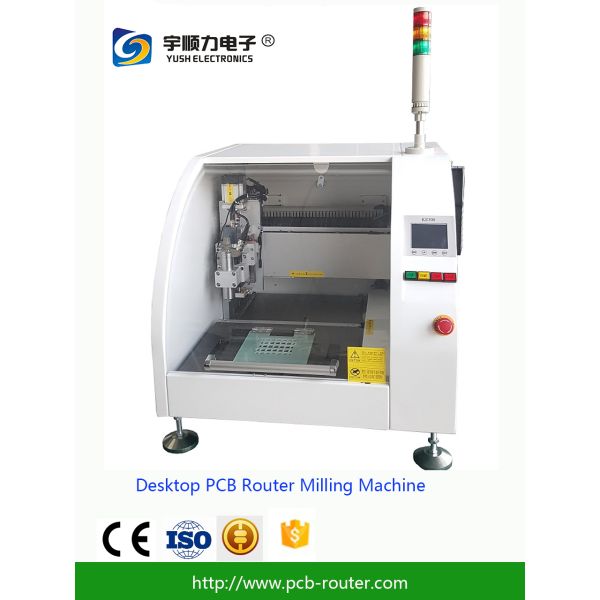

YS-L530-SMT Desktop High-Speed Spindle Programming Mode PCB LED Board Cutting Router
The YS-L530-SMT Desktop High-Speed Spindle Programming Mode PCB LED Board Cutting Router is a precision cutting solution designed for circuit board manufacturing and LED board processing applications.
YS-L530-SMT-Desktop-high-speed-spindle Programming Mode PCB LED Board Cutting Router YS-L530-SMT-Desktop-high-speed-spindle Programming Mode PCB LED Board Cutting Router
Technical Specifications
Drive System Motor: Stepping motor
Spindle Type: High speed spindle
Cutting Performance: 500mm/S
Driving System Repeat Accuracy: ±0.02mm
Cutting Speed: Maximum 100mm/s (depends on circuit board material and cutting quality)
Resolution: ±0.01mm
Configuration: X, Y, Z three axes

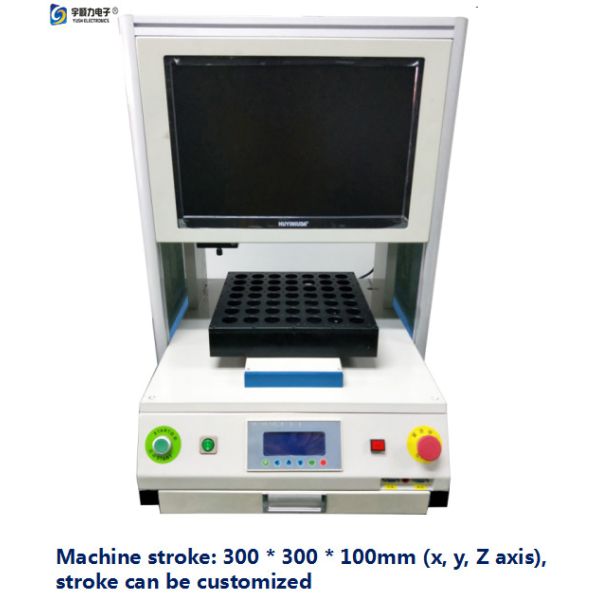

Travel: 300 × 300 × 100mm (customizable)
Repeat Cutting Accuracy: <0.05mm for straight line and curve contours
Circuit Board Location: Special or standard fixtures
Loading/Unloading Mode: Manual
Circuit Board Thickness: 0.4mm-4mm
Safety Features
  • Emergency stop switch for the entire machine
  • Emergency stop switch for the spindle
  • Spindle motor overheat detection
  • Servo motor overload detection
  • Protective cover included
Spindle Motor Details
Power: 0.3kw
Maximum Speed: 60,000 rpm
Cooling Mode: Air cooling
YS-L530-SMT-Desktop-high-speed-spindle Programming Mode PCB LED Board Cutting Router
Additional Specifications
Specification Details
Machine Size 650 × 550 × 615mm
Weight 73KG
Programming Mode Keypad input teaching
Data Storage Capacity 100-200 groups of files
Control Mode Microcomputer control, online teaching programming, CAD file import
Transmission Mechanism Guide rail + screw rod (Taiwan)
Vacuum System
Vacuum Cleaner: 1.5kw, 220V
Vacuum Cleaner Size: 710 × 390 × 680mm
Operating Capability: Continuous 24-hour operation
Vacuum Method: Lower vacuum
