Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
Certification :
ce
MOQ :
1 set
Price :
$28,000 / set
Weight :
3500 kg
Power :
10 kW
Voltage :
220V, 380V
Laser wavelength :
355nm
Laser power :
10W
Maximum format :
610mm X 500mm
Operating speed :
50m/min
Positioning accuracy :
±3um
Repeatability :
±1um
System precision :
±20um
Scanning range :
50mm X 50mm
Cutting thickness :
<1mm
Dimensions :
1818mm X 2317mm X 1550mm
Ambient temperature :
20℃ ±2℃
Humidity :
<60% RH
Description

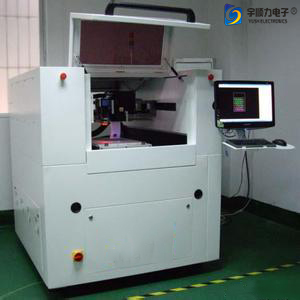

PCB Router & FPC Metal Laser Cutting Machine
Model YSVC-650 with stainless steel cutting wheel for SMT workshop circuit board processing
Product Overview
Yu Shun Technology FPC ultraviolet laser cutting machine is designed for precision cutting of CVL, FPC, RF, and thin plywood materials. As a leading brand in positive instrument manufacturing, Yu Shun Technology specializes in PCB industry equipment research, development, and production.
PCB Router & FPC Metal Laser Cutting Machine with Stainless Steel Cutting Wheel for SMT Workshop Circuit Board Processing
Applications

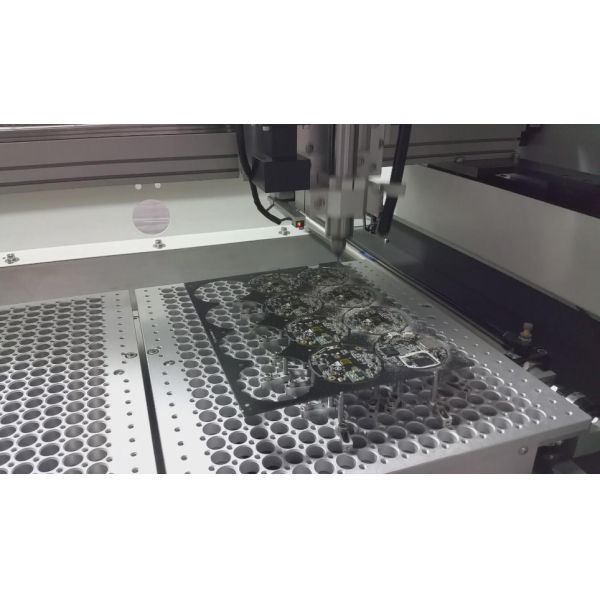

This FPC UV laser cutting machine enables precision cutting of flexible circuit boards and organic coatings without requiring molds or protective plate fixation. The high-energy laser source with precise beam control delivers superior processing speed and exceptional machining accuracy.
Key Features
  • Proprietary control software with intuitive interface, comprehensive functionality, and simple operation
  • Capable of processing any graphics with synchronous hierarchical completion for different thicknesses and materials
  • Optimized optical system design ensures high beam quality and reduced focused spot size for precision cutting
  • High-performance UV laser with specific wavelength, superior beam quality, and high peak power characteristics
  • Material processing through decomposition and vaporization rather than melting, resulting in minimal post-processing glitches
  • Small thermal effect, no layer points, with precise, smooth cutting and steep sidewalls
  • Vacuum sample fixation eliminates need for mold protection plates, enhancing processing efficiency
  • Versatile material compatibility including silicon, ceramic, glass, and various substrate materials
  • Automatic correction, positioning, multi-plate cutting, thickness measurement and compensation functions
PCB Router & FPC Metal Laser Cutting Machine with Stainless Steel Cutting Wheel for SMT Workshop Circuit Board Processing
Technical Specifications
Laser Source Solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W
Maximum Processing Format 610mm × 500mm (24" × 18")
XY Platform Maximum Speed 50m/min
Positioning Accuracy ±3μm
Repeatability ±1μm
System Precision ±20μm
Galvanometer Scanning Range 50mm × 50mm
Cutting Thickness <1mm
Power Requirements AC220V 50Hz / 2.2KW; Three-phase 380V 50Hz / 5.5KW
Air Requirement 516m³/h
Dimensions 1818mm × 2317mm × 1550mm
Weight 3500kg
PCB Router & FPC Metal Laser Cutting Machine with Stainless Steel Cutting Wheel for SMT Workshop Circuit Board Processing
Operating Environment Requirements
Ambient Temperature 20℃ ± 2℃
Humidity <60% RH non-condensing
Ground Amplitude <5μm
Vibration Acceleration <0.05g
Ground Pressure 2200kgf/m²
Control System & Software
Industry-specific control equipment with flexible processing software, dedicated motion control card, and IPC control mode. Features 17-inch monitor, 300G+ hard drive, and supports standard G-code, Gerber data, and CAD formats.
PCB Router & FPC Metal Laser Cutting Machine with Stainless Steel Cutting Wheel for SMT Workshop Circuit Board Processing
Application Scope
Suitable for all V-CUT SMD PCB FPC board processing applications in SMT workshops and circuit board manufacturing facilities.
