Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$23,000 / set
Weight :
3500 kg
Power :
3 kW
Voltage :
220V/380V
PCB Thickness :
0.4-6.0mm
Cutting size :
350*350 mm
Transmission height :
900±50mm
Transmission speed :
1500mm/s(max)
Cooling type :
Air compression
PCB Material :
FR4, CEM1, CEM3
Core components :
Motor
Cutting precision :
High precision
Operation efficiency :
Dual tables motion
CCD alignment :
Automatic vision
Main shaft speed :
High-speed
Production capacity :
Increased
Description

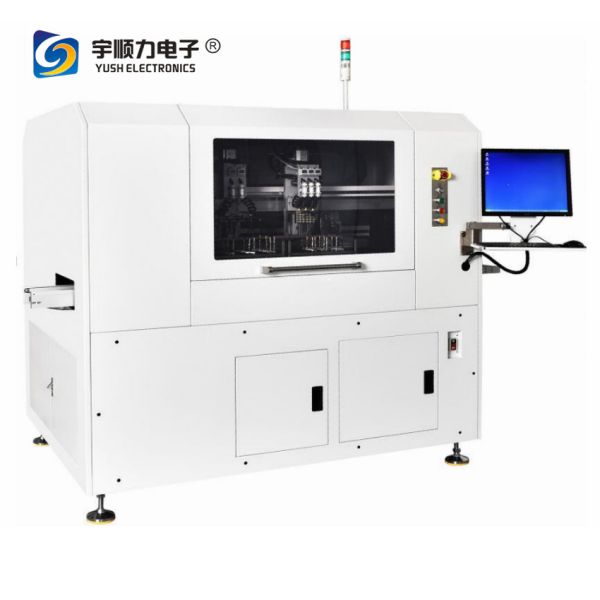

Multi-Functional In-line Automatic PCB Routers YASTM-4C
Compatible with full SMT assembly line workflow for automated PCB depaneling operations.
Multi-Functional In-line Automatic PCB Routers YASTM-4C-Compatible with Full SMT Assembly Line Workflow
Key Features
  • In-line automatic PCB separator with automated loading, cutting, and unloading for factory automation
  • Automatic width adjustment and PCB board reception with intelligent finished PCB and waste identification
  • High-speed CCD with automatic vision alignment system for improved cutting precision and operational efficiency
  • High-speed main spindle cutting with minimal cutting stress and high precision for all PCB forms

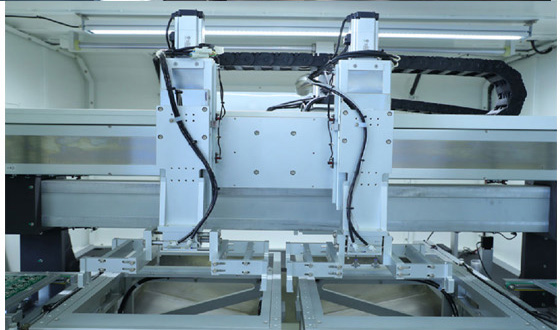

  • Dual table motion system enabling simultaneous PCB cutting and placement operations
Multi-Functional In-line Automatic PCB Routers YASTM-4C-Compatible with Full SMT Assembly Line Workflow
Advanced Functionality
Two-Dimensional Code Program Retrieval
  • Direct program transfer via QR code scanning for convenience and error-free operation
  • Intelligent product switching capabilities
CCD Scanning System
  • Industry-leading PCBA full-board scanning functionality
  • Reduced programming time with real-time cutting path display and easy modification
Industrial 4.0 - MES System Integration
  • Automatic server data retrieval
  • Machine data and production data upload capabilities
  • Real-time equipment status monitoring
Multi-Functional In-line Automatic PCB Routers YASTM-4C-Compatible with Full SMT Assembly Line Workflow
Operational Advantages
  • Double slide positioning device reduces cutting wait times and increases production capacity
  • Prevents cracking of solder joints and component damage caused by manual handling
  • Avoids mechanical stress from blunt or folding operations
  • Suitable for arc and line cutting of finished boards
  • Ideal for small piece final cutting applications including mobile phone base plates, PDA, and PC interface cards
Multi-Functional In-line Automatic PCB Routers YASTM-4C-Compatible with Full SMT Assembly Line Workflow
Our Services
Multi-Functional In-line Automatic PCB Routers YASTM-4C-Compatible with Full SMT Assembly Line Workflow
Packaging & Shipping
