Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$31,000 / set
Weight :
3500 kg
Power :
10 kW
Voltage :
220V, 380V
Laser type :
UV
Laser wavelength :
355nm
Max power :
10W /15W/17W
Repetition frequency :
1-250kHz
Location precision :
±0.003mm
Repetition precision :
±0.002mm
Worktable range :
500mm*500mm
CCD precision :
0.005mm
Max working range :
460mm*460mm
XY speed :
50m/min
Positioning accuracy :
±3um
Cutting thickness :
<1mm
Description

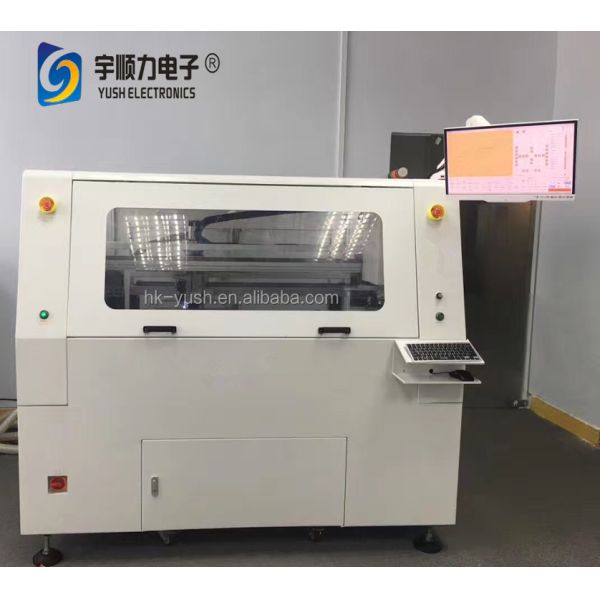

YASTM-4C Stainless Steel Cutting Machine
YUSH Technology FPC ultraviolet laser cutting machine is designed for precision cutting of flexible circuit boards, CVL, RF, and thin plywood materials without requiring molds or protective plate fixation.
Shenzhen Stainless Steel Cutting Machine Wheel Made in China . CNC Laser Cutting Machine Shenzhen Stainless Steel Cutting Machine Wheel Made in China . CNC Laser Cutting Machine
Applications
Available for flexible circuit boards and organic coating for precision cutting without mold or protective plate fixation. Using a high-energy laser source with precise beam control ensures improved processing speed and precise machining results.
Shenzhen Stainless Steel Cutting Machine Wheel Made in China . CNC Laser Cutting Machine Shenzhen Stainless Steel Cutting Machine Wheel Made in China . CNC Laser Cutting Machine
Key Features
  • Proprietary control software with user-friendly interface, complete functionality, and simple operation
  • Capable of processing any graphics with synchronization for complete hierarchical cutting
  • Optimized optical system design ensures high beam quality and reduced focused spot size for precision
  • High-performance UV laser with optimal wavelength, beam quality, and peak power characteristics
  • Vacuum sample fixation eliminates need for mold protection plates, improving processing efficiency
  • Capable of cutting various substrate materials including silicon, ceramic, and glass
  • Automatic correction, positioning, multi-plate cutting, thickness measurement and compensation functions
Shenzhen Stainless Steel Cutting Machine Wheel Made in China . CNC Laser Cutting Machine Shenzhen Stainless Steel Cutting Machine Wheel Made in China . CNC Laser Cutting Machine
Technical Specifications
Laser SourceSolid-state UV laser, 355nm wavelength
Laser Power10W
Maximum Processing Format610mm × 500mm (24" × 18")
XY Platform Maximum Speed50m/min
Positioning Accuracy±3μm
Repeatability±1μm
System Precision±20μm
Galvanometer Scanning Range50mm × 50mm
Cutting Thickness<1mm
Power RequirementsAC220V 50Hz/2.2KW; Three-phase 380V 50Hz/5.5KW
Air Requirements516m³/h
Dimensions1818mm × 2317mm × 1550mm
Operating Temperature20℃ ±2℃
Humidity<60% RH non-condensing
Additional Specifications
Maximum Board Length610 × 500mm
Package Size1818mm × 2317mm × 1550mm
Thickness1mm
Power SupplyAC220V 50Hz/2.2KW; Three-phase 380V 50Hz/5.5KW
Working Air Pressure516m³/h
Scope of ApplicationAll V-CUT SMD PCB FPC board
