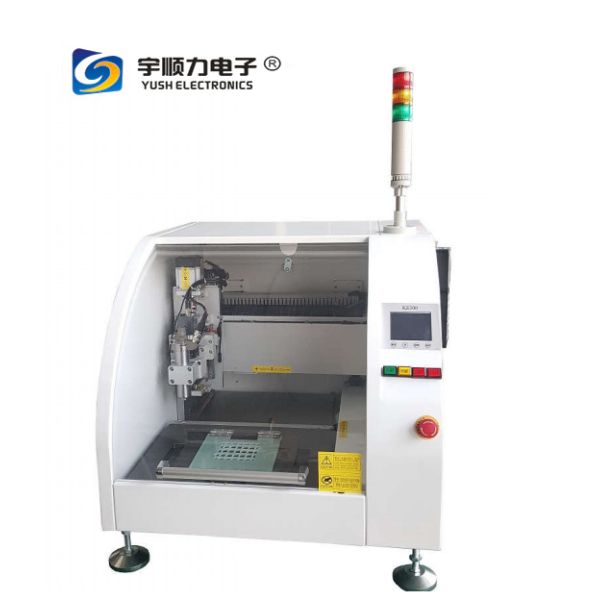

Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$10,000 / set
Weight :
135 kg
Power :
10 kW
Voltage :
220V/380V
Model :
YS-L530
Dimension :
L623*W737*H587mm
Machine power :
3.6KW
Cleaner Wattage :
2.2KW/220V
Table Dimension :
260mm*260mm
Cutting Speed :
0-100mm/s
Repeatability Accuracy :
±0.01mm
Working Area :
X:0-260mm, Y:0-260mm, Z:0-80mm
PCB Thickness :
0.5-5mm
Router Bit Diameter :
0.8-3.0mm
Spindle Speed :
60000rpm
Air press :
0.4Mpa
Description
Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Key Features
  • Bottom dust collection system utilizing free fall theory for optimal dust removal
  • Specialized fixtures ensure secure positioning to maintain cutting accuracy
  • Automatic system correction based on product installation position for high-precision cutting
  • Built-in static eliminator removes electricity and dust while air nozzles continuously work to prevent static damage and dust accumulation
  • Safety door design reduces noise, contains dust, and enhances operational safety
  • Integrated dust collection box with maintenance scheduling based on cutting requirements
Applications
Ideal for separating stamp hole PCB boards and irregular joint PCB boards
Desktop PCB Router Milling Machine
Technical Specifications
Function Items Hardware Demand
Model YS-L530
Dimension L623*W737*H587mm
Power 220V/50HZ
Machine Power 3.6KW
Weight About 300KG
Cleaner Dimension Inside / L650*W500*H550mm
Cleaner Wattage 2.2KW/220V
Table Dimension 260mm*260mm
Cutting Speed 0-100mm/s
X,Y,Z Axis Driving Speed X, Y axis 0-1000mm/s (min), Z axis 0-750mm/s (min), servo motor drive
Repeatability Accuracy ±0.01mm
Working Area X:0-260mm, Y:0-260mm, Z:0-80mm
PCB Thickness 0.5-5mm
Router Bit Diameter 0.8-3.0mm
Cutting Precision ±0.01mm
Cutting Ability Linear, Circular, U-curve, Arc, L-curve
Cutter Change Manual, tools needed
Spindle Speed 60000rpm
Spindle Cooling System Air cooling mode
Safety Device Safety door and door lock sensor
Voice Control ≤78 dB (measured in 1M distance)
Packaging & Shipping
Desktop PCB Router Milling Machine
Our Services
Desktop PCB Router Milling Machine
Company Information
YUSH Electronic Technology Co., Ltd is a manufacturer and trader specialized in the research, development and production of PCB depaneling, Hot bar welding machines and Touch screen film sticking machines. We are located in Dongguan City, Guangdong Province, China with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in various markets worldwide.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China since 2014, we serve global markets including Eastern Europe, North America, South America, and Europe with a team of 301-500 professionals.
How do we guarantee quality?
Pre-production samples before mass production and final inspection before shipment ensure consistent quality standards.
What products do we offer?
PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.
Why choose us?
Founded in 2004, YUSH Electronic Technology specializes in professional PCB separator and depanelizer electronic equipment with advanced production facilities and experienced technical expertise.
What services do we provide?
Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Accepted Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
