Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$39,800 / set
Weight :
350kg
Machine Size :
L1300*W400*H1000mm
Power Supply :
110V/220V AC 60HZ/50HZ
PCB Thickness :
0.8-3.0mm
Cutting Speed :
Adjustable
Blade Material :
SKH51 high speed steel
Top Cutter Adjustment :
0-5mm
Single PCB Width :
15-20mm
Applicable Board Width :
More than 400mm
Core Components :
PLC, Motor
Cutting Process :
Unlimited
Number of Blades :
Multiple
Conveyor Belt :
Included
Display Screen :
Gap display
Adjustment Knob :
Turn-knob
Description

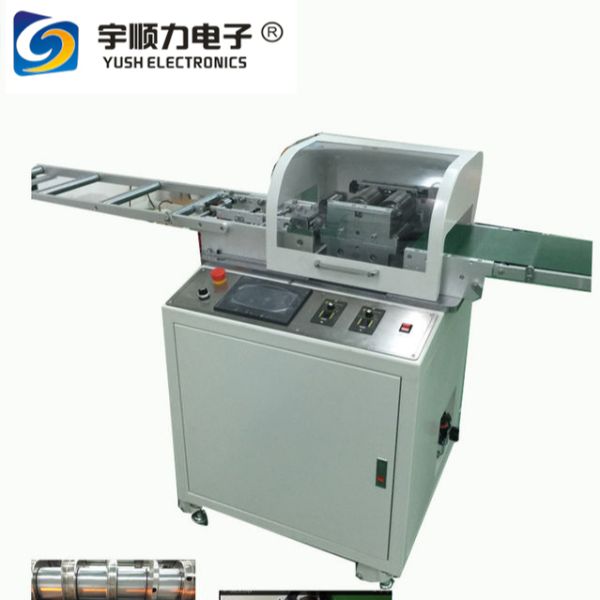

High Speed Practical Multi Blades PCB Cutting Machine
Advanced PCB depaneling machine designed for efficient production line integration with multi-blade cutting capability.
High Speed Practical Multi Blades PCB Cutting Machine for PCB Production Line High Speed Practical Multi Blades PCB Cutting Machine for PCB Production Line
Key Features

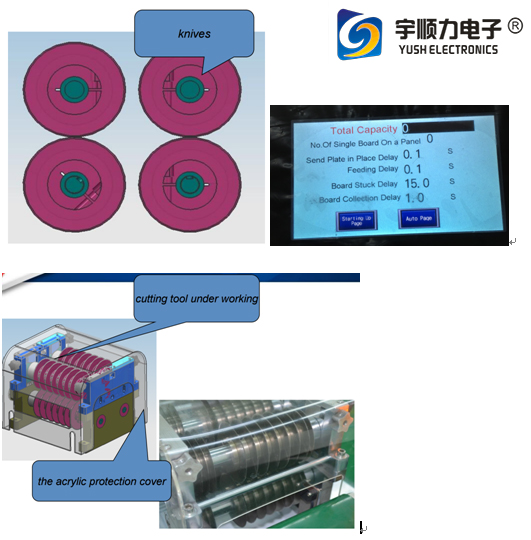

  • Integral shaft design for top and bottom knives ensures convenient installation and handling
  • Computer screen control with production counting and direct gap display
  • Compatible with all V-cut PCB boards
  • Reduces stress during cutting to prevent solder joint cracking
  • Multiple cutter configuration enables simultaneous cutting of several boards
  • Top cutter wheel adjustable range: 0-5mm
  • Adjustable knife distance suitable for single PCB boards 15-20mm wide
  • SKH51 high-speed steel blades for extended service life and wear resistance
  • Variable cutting speed controlled by turn-knob
  • Integrated conveyor belt for automatic board ejection and production line docking
  • Versatile material compatibility including LED panels, fiberboards, aluminum boards (400mm+), and special boards
  • Simple operation ideal for high-volume mass production
High Speed Practical Multi Blades PCB Cutting Machine for PCB Production Line High Speed Practical Multi Blades PCB Cutting Machine for PCB Production Line
Technical Specifications
Power Supply 110V/220V AC 60Hz/50Hz
Dimensions L1300 × W400 × H1000mm
Weight 350kg
Cutting Process Unlimited cutting capacity
PCB Thickness Range 0.8-3.0mm
Compatible Materials LED panels, fiberboards, aluminum boards (400mm+), and special boards
High Speed Practical Multi Blades PCB Cutting Machine for PCB Production Line High Speed Practical Multi Blades PCB Cutting Machine for PCB Production Line
