Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$2,000 / set
Weight :
50kg
Power :
10 kW
Voltage :
220V, 110V
Model No :
YSV-2M
Machine Dimension :
820*390*360 mm
Maximum Cutting Length :
330 mm
Cutting Speed :
0-1000mm/s
Cutting Thickness :
0.8-3.5mm
Depaneling Mode :
Manual
Blade Type :
Circular and linear blade
Blade Material :
Hardened tooled steel
Blade Adjustment :
Precisely adjustable
Back Bench Adjustment :
Height and tilt adjustable
Board Support :
Stainless steel platform
Core Components :
PLC, Gearbox, Motor, Pump
Description

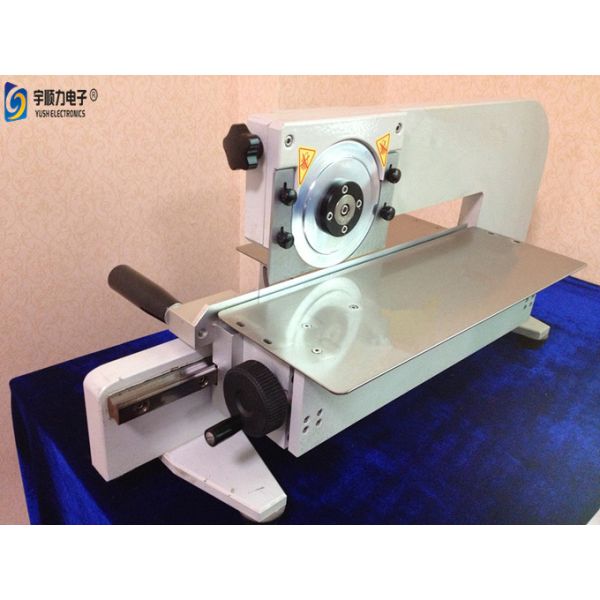

High-Precision Manual PCB Separator
Labor-saving V-cut PCB board cutting tool designed for clean, stress-free depaneling of printed circuit boards.
High-Precision Manual PCB Separator | Labor-Saving V-Cut PCB Board Cutting Tool
Key Design Features
  • Circular blade cuts against linear blade to ensure clean, burr-free processing without board stress
  • Quick-lock blade for easy board thickness setup with precise adjustment between upper round cutter and lower straight cutter
  • Adjustable back bench height that can be raised/lowered to support PCB or tilted for automatic board removal
  • Hardened tooled steel blades for extended service life
High-Precision Manual PCB Separator | Labor-Saving V-Cut PCB Board Cutting Tool
Technical Specifications
Model No:YSV-2M
Machine Dimension:820 × 390 × 360 mm
Maximum Length of Cutting:330 mm
Cutting Speed:0-1000 mm/s
Cutting Thickness:0.8-3.5 mm
Depaneling Mode:Manual
Optional Configuration:Circular blade and linear blade × 1 set
Weight:50 kg
Advanced Features
  • Linear knife manually cutting against upper circular knife to reduce stress
  • Separates pre-scored PCB assemblies without stress on PCB or components
  • Cutting speed adjustable via rotary knob control
  • Handles intermittent scoring or cut-outs effectively
  • Precisely cuts boards with projected components
  • Large stainless steel platform prevents board wobble with adjustable table height and angle
  • Adjustable clearance between circular and linear blades accommodates different groove depths and compensates for blade wear
High-Precision Manual PCB Separator | Labor-Saving V-Cut PCB Board Cutting Tool
Applications
Aluminum base board, copper substrate, FR4 PCB board, glass fiber board
Maintenance Guidelines
  • Disconnect power and clean machine after completing work
  • Handle upper and lower blades with care to prevent damage
  • Apply machine oil to moving blades for protection
  • Regularly check and tighten screws as needed
