Specifications
Place of Origin :
China
Brand Name :
YUSH
MOQ :
1 set
Price :
$10,000 / set
Weight :
80 kg
Power :
10 kW
Voltage :
220V, 110V
Model :
YS-280
Working way :
Automatic
Input voltage :
AC220V
Input frequency :
50/60HZ
Equipment power :
120W
Dimensions :
750*550*750 mm
Motor type :
AC asynchronous motor
Motor power :
120W
Cutter specifications :
8mm, 10mm
Max cutting width :
240mm
Core components :
Motor
Cutting capacity :
6mm, 8mm, 10mm, 12mm
Description

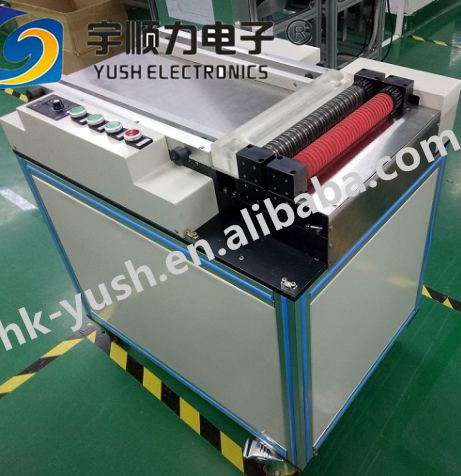

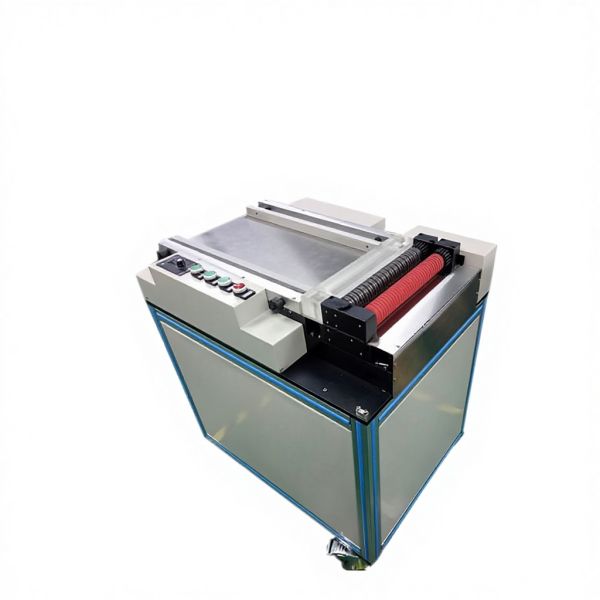

YS-280 High Speed LED Strip Cutting Machine
Professional LED soft light cutting machine designed for SMT assembly lines, featuring fully automatic slitting capabilities for flexible LED light strips.
High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line
Product Overview
The YS-280 LED soft light cutting machine is professionally engineered for LED flexible light strip processing. This fully automatic slitting equipment handles multiple strip widths including 6mm, 8mm, 10mm, and 12mm series, with customizable options available. Cutting length is unlimited for continuous production requirements.
High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line

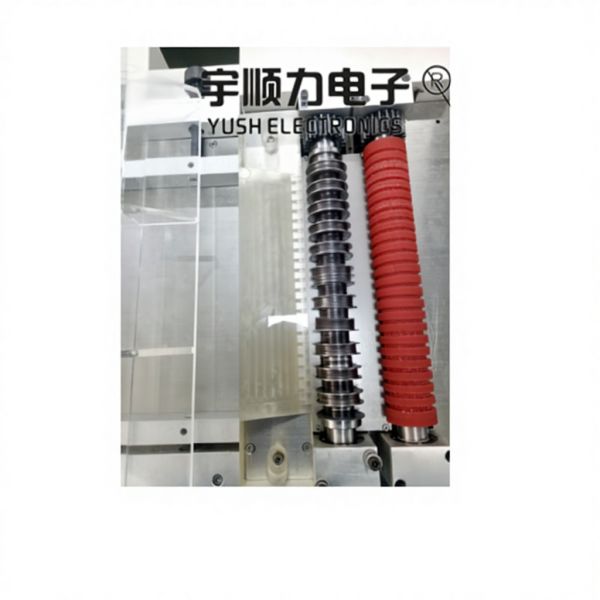

Tool Change Procedure
  • Equipment and tool change steps
  • Open the equipment tool cover
  • Twist the upper cutter fastener and pressure roller fastener with Allen key
  • Remove the lamp strip
  • Remove the lower cutter and replace the cutter
High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line
  • Install corresponding specification baffle
  • Adjust guide groove and block to ensure alignment
  • Install upper cutter and pressure roller
  • Cover the knife guard
  • Perform test cutting with empty board after installation
High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line
Technical Specifications
Parameter Specification
Model YS-280
Working Method Automatic
Input Voltage, Frequency AC220V, 50/60HZ
Equipment Power 120W
Dimensions (L*W*H) 750*550*750mm
Weight 80KG
Motor High force hatchback 120W AC asynchronous motor
Cutter Specifications Standard 8mm, 10mm (maximum cutting width 240mm)
High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line
Packaging & Delivery
Plywood case packaging for secure transportation and delivery.
High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line
Our Service
High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line
Certifications
High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line High Speed Led Strip Cutting Machine Electronic Products Machinery for SMT Assembly Line
