Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YSVC-3
MOQ :
1 set
Price :
$4,000 / set
Weight :
85 kg
Size :
780mmx500mmx620mm
Cutting Length :
Unlimited
Voltage :
110V / 220V
Platform Length :
1.5 M / 2.4 M
Cutting Board :
v-cut pcb board, FR4 board, LED Aluminum board
Dimension :
1020*506*333mm
Cutting Speed :
80,120, 200, 400mm/s
Cutting Thickness :
0.2-5mm
Power :
40W
Minimize Thickness :
0.3-3.5mm
Type :
Air
Core Components :
Motor
Blade Jitter :
Less than 0.02mm
Cutting Method :
Six blades, three-stage cutting
Description

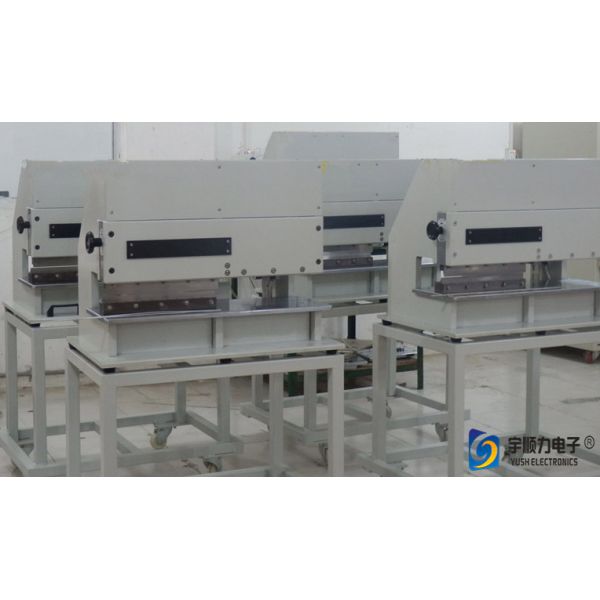

High Performance V-Cut PCB Depaneling Machine

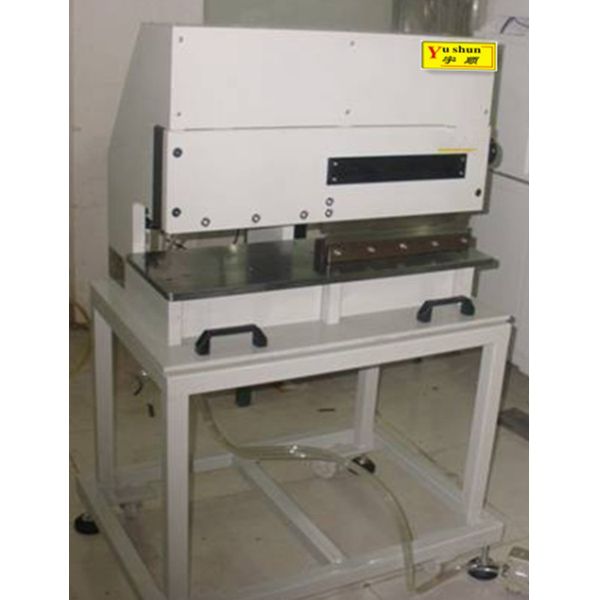

Pneumatic Guillotine-Type PCB Depanelizer - Model YSVC-3
Professional PCB singulation machine for V-cut boards, FR4 boards, and LED aluminum boards with advanced multi-stage cutting technology.
High Compent v Cut Pcb De-paneling ,PCB V Cut Machine , Pcb Sing-ulation Machine/pcb Lead Cutting Machine/maestro Pcb Separator High Compent v Cut Pcb De-paneling ,PCB V Cut Machine , Pcb Sing-ulation Machine/pcb Lead Cutting Machine/maestro Pcb Separator
Technical Specifications
Cutting LengthUnlimited
Platform Length1.5 M / 2.4 M
Cutting Thickness0.2-5mm
Cutting Speed80, 120, 200, 400mm/s
Voltage110V/220V, 230V/50Hz(110V/60Hz)
Power40W
Weight85 kg
Dimension1020×506×333mm
CertificatesCE Mark
Compatible BoardsV-cut PCB board, FR4 board, LED Aluminum board
Key Features
  • Vertically adjustable guide to accommodate different PCB thicknesses
  • Precise circular blade clearance adjustment via knob control
  • Reusable upper and lower circular blades after regrinding
  • Custom blade shapes and sizes available per customer specifications
High Compent v Cut Pcb De-paneling ,PCB V Cut Machine , Pcb Sing-ulation Machine/pcb Lead Cutting Machine/maestro Pcb Separator
Advanced Cutting Technology
Our unique multi-stage cutting process ensures superior results:
Three-Stage Cutting System: The circuit board is cut by six blades arranged in three groups (A, B, C). Group A cuts 40% of the board, Group B cuts another 40% through the groove created by Group A, and Group C completes the final 20%. This progressive approach reduces cutting stress by over 80% compared to traditional single-cut methods.
Smooth Edge Quality: The multi-stage process produces exceptionally smooth board edges and surfaces without warping. This is currently the only machine that guarantees aluminum plates remain deformation-free after cutting.
Precise V-CUT Groove Positioning: Multiple cutting stages ensure smooth operation and excellent V-CUT groove positioning capability, preventing board jumping even with shallow slots.
Extended Blade Life: Reduced cutting force combined with high-speed steel blades imported from Sweden significantly extends blade durability, with lifetimes exceeding one year when cutting aluminum boards.
Laser-Calibrated Precision: All cutting blades are calibrated using excitation double-frequency laser interference measurement instruments, ensuring subsequent blades accurately continue cutting in pre-cut slots with knife point jitter under 0.02mm for perfect cutting quality.
