Automatic SMT PCB Separator Online Machine /online Depanel Machine /circuit Board Making Machine

Specifications

Place of Origin :

Guangdong, China

Brand Name :

YUSH

MOQ :

1 piece

Price :

$3,000 / piece

Voltage :

380V

Power :

150W

Weight :

300kg

Dimension :

990x550x1200mm

Blades size :

dia125mm x3

Blades material :

Imported high speed steel

Cutting thickness :

1-3mm

Cutting length :

MAX 500mm

Cutting speed :

300mm/s

Cutting width :

Max 400mm

Working pressure :

0.5-0.8MPa

Model :

YSV-3A

Machine size :

990×550×1250mm

Blades brand :

YUSH

Operating voltage :

220V/110V Options

Description

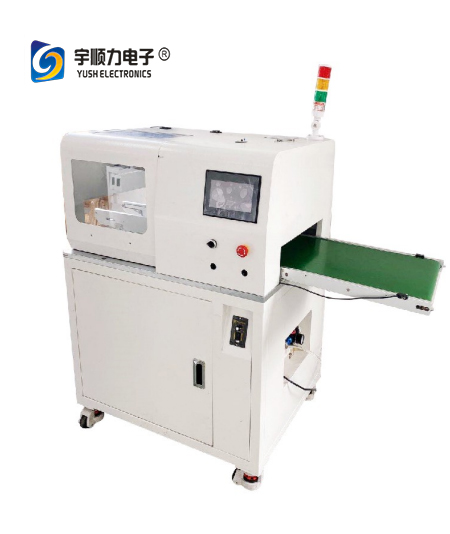

Automatic SMT PCB Separator Online Machine

YSV-3A is a fully automatic round blades moving depaneling machine that can be connected to loader and unloader machines to achieve unmanned operation. This system offers convenient installation and simple operation while saving labor, time, and floor space.

Key Features

High positioning accuracy for precise cuts
Minimal cutting board stress
Infrared light curtain induction for enhanced safety
Automatic feeding and cutting for increased efficiency
Compatible with upper and lower board machines for reduced labor requirements

Technical Specifications

Model	YSV-3A
Product Name	PCB Automatic Depaneling Machine
Machine Dimensions (L×W×H)	990×550×1250mm
Blades Size	Round knife: diameter 125mm×3mm Straight knife: 400mm×43.5mm×6mm
Blades Material	Imported high speed steel
Blades Brand	YUSH
Cutting Board Thickness	One-third thickness
Cutting Board Length	1mm-500mm
Cutting Speed	300mm/s
Cutting Board Width	1mm-400mm
Working Pressure	0.5-0.8MPa
Operating Voltage	220V/110V Options
Equipment Power	150W
Machine Weight	300kg

Packaging & Shipping

Our YSV-3A PCB depaneling machine is carefully packaged to ensure safe delivery to your facility.
