Lamp Splitter Machine YS-750
Lamp Splitter Machine YS-750
Lamp Splitter Machine YS-750
Lamp Splitter Machine YS-750
Lamp Splitter Machine YS-750
Lamp Splitter Machine YS-750
Lamp Splitter Machine YS-750
Lamp Splitter Machine YS-750
Lamp Splitter Machine YS-750
Lamp Splitter Machine YS-750
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YS-750
MOQ :
1 set
Price :
$5,000 / set
Weight :
65 KG
Machine Dimensions :
490mm*400mm*350mm
Plat Size :
1200*450*350mm
Maximum Splitter Length :
Unlimited
Split-plate Velocity :
80, 120, 200, 400mm/S
Power :
60W
Tool Material :
SKD61 High speed steel
Plate Thickness :
0.2-5mm
Machine Weight :
1.2M--65KG;2.4M--75KG
Power Supply :
230V/50Hz(110V/60Hz)
Tip Beat :
0.02mm
Core Components :
PLC, Bearing, Motor
Narrowest Board :
3.5MM
Daily Output :
12,000 to 15,000 strips
Speed :
400M/S
Description

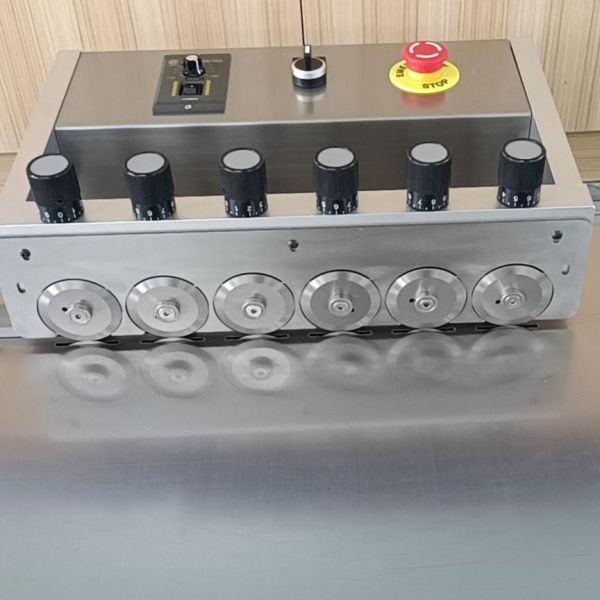

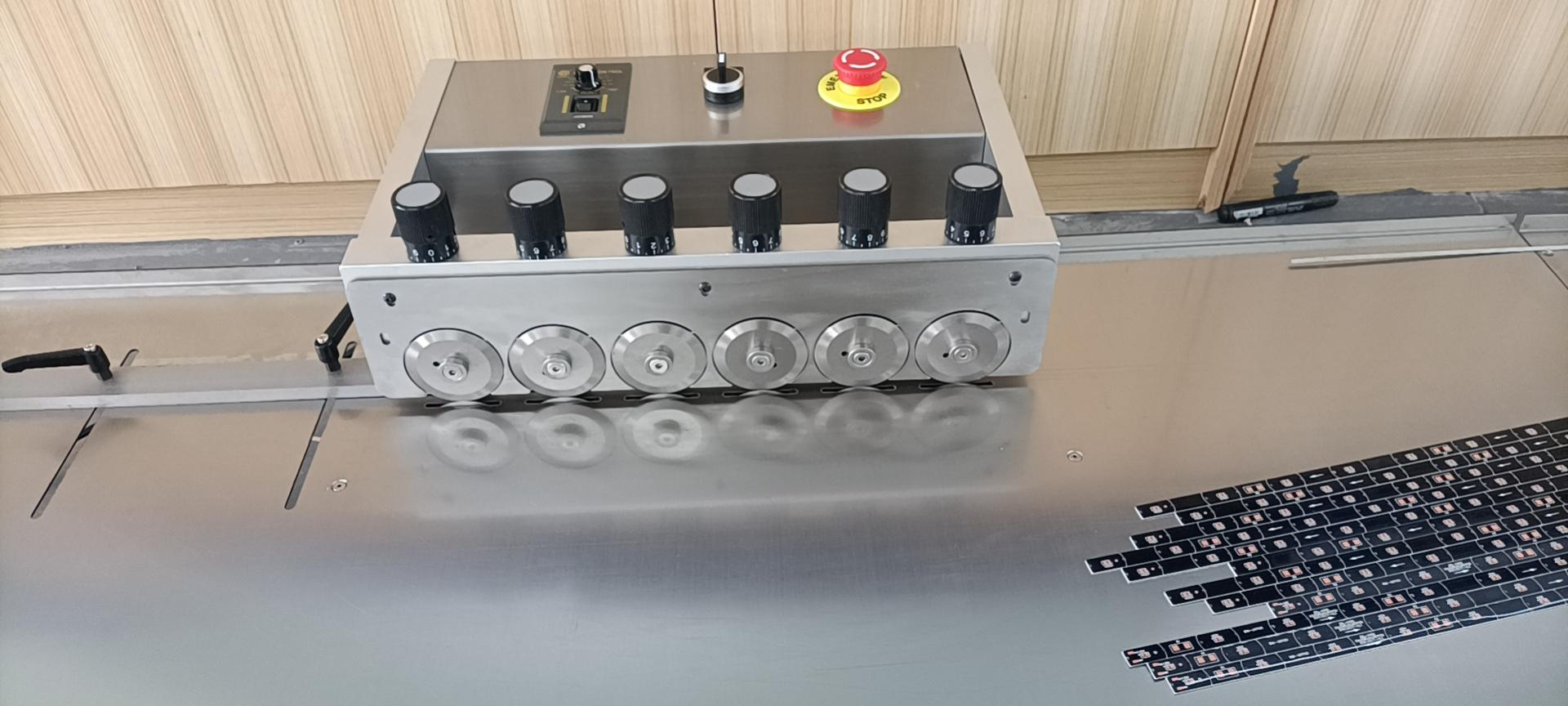

Lamp Splitter Machine YS-750
Key Features
  • Six-stage cutting system minimizes shear stress with integrated deformation control for smooth, flat edges without twisting or warping
  • Handles ultra-thin 0.6mm aluminum substrates while maintaining deformation control within two wires
  • Multiple cutting process ensures smooth operation and precise V-CUT slot positioning
  • All cutting blades calibrated with dual-frequency laser interferometer for tip beat ≤0.02mm
  • Stainless steel platform with laser calibration positioning (1.2m or 2.4m options available)
Lamp Splitter Machine YS-750
Application Fields
The YS-750 is designed for electronic, electrical, lighting, medical, automotive, new energy, and various electronic technology industries.
Lamp Splitter Machine YS-750
Quality Comparison
Defective PCB board before processing:
Lamp Splitter Machine YS-750

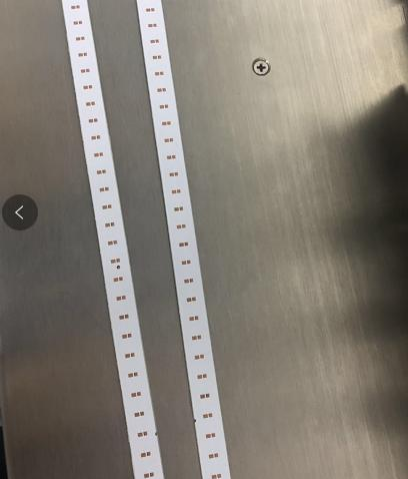

Machine-processed PCB board after splitting:
Lamp Splitter Machine YS-750
Technical Specifications
Parameter Specification

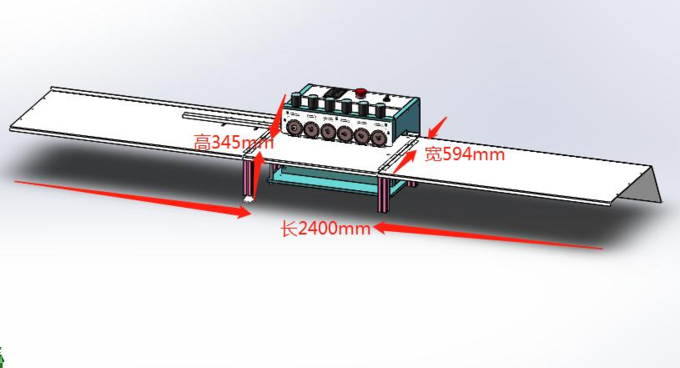

Machine Dimensions 490mm × 400mm × 350mm
Platform Size 1200×450×350mm / 2400×450×35mm
Maximum Split Length Unlimited
Splitting Speed 80, 120, 200, 400mm/s
Power 60W
Tool Material SKD61 High Speed Steel
Plate Thickness Range 0.2-5mm
Machine Weight 1.2M--65KG; 2.4M--75KG
Power Supply 230V/50Hz (110V/60Hz)

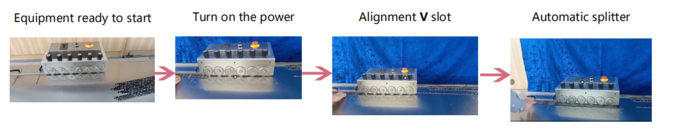

Board Operation Procedure
Lamp Splitter Machine YS-750
Value Proposition
Cost Saving: Unlimited cutting length, wide thickness range (0.2-5mm), German imported high-speed steel blades with extended durability (over one year for aluminum substrates).

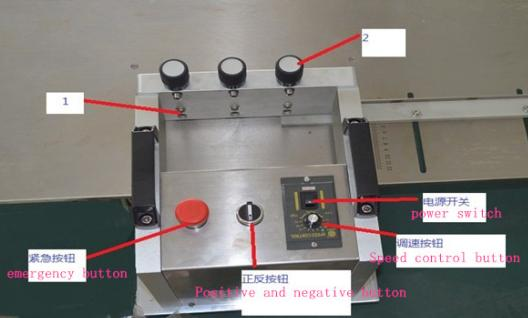

High Equipment Efficiency: Free X and Y axis adjustment for maximum cutting precision, speeds up to 400mm/s, simple operation with accurate upper/lower round knife adjustment.
Quality Assurance: Laser-interferometer calibrated blades ensure perfect cutting quality with tip beat ≤0.02mm.
Lamp Splitter Machine YS-750
Equipment Advantages
  • Cost-efficiency: Vertically adjustable V-groove guide for different substrate thicknesses; reversible cutting knives for multiple uses
  • Safety Design: Minimal cutting stroke (1-2mm) ensures operational safety
  • Stability Performance: SKD11 high-speed steel blade components with one-year warranty; unlimited board length capability
Lamp Splitter Machine YS-750
Process Solutions
How narrow can the light strip board be split?
The narrowest board can be less than 3.5mm. For aluminum base plates, we recommend using a double knife seat dividing machine.
What about machine maintenance, consumables, and lifespan?
All company products include blades and accessories with 3-month warranty. Blade lifespan depends on material quality (imported high-speed steel lasts longer) and cutting board material (glass fiber boards are more durable than aluminum substrates).
How many light strips can be processed daily?
The light strip splitter can process 12,000 to 15,000 strips per day at 400mm/s speed over 8-10 hours of operation.
