Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YSVC-3
MOQ :
1 set
Price :
$10,000 / set
Weight :
85Kg
Power :
40W
Model :
YSVC-3
Package Size :
780mmx500mmx620mm
Minimize Thickness :
0.3-3.5mm
Machine Weight :
185Kg
Max Depaneling Length :
Unlimited
Max Component Height :
50mm
Min Board Thickness :
0.3mm
Max Board Thickness :
2.0mm
Component Clearance :
1mm
Control Method :
Pneumatic-driven
Operation Method :
Foot pedal
Core Components :
Motor
Depaneling Stress :
No bending/tension
Description

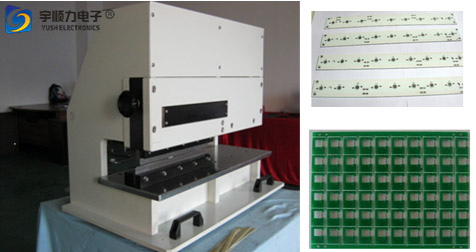

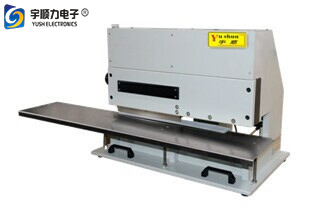

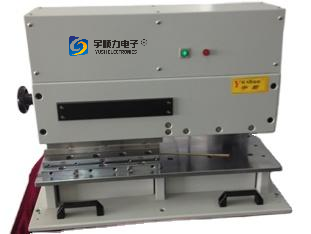

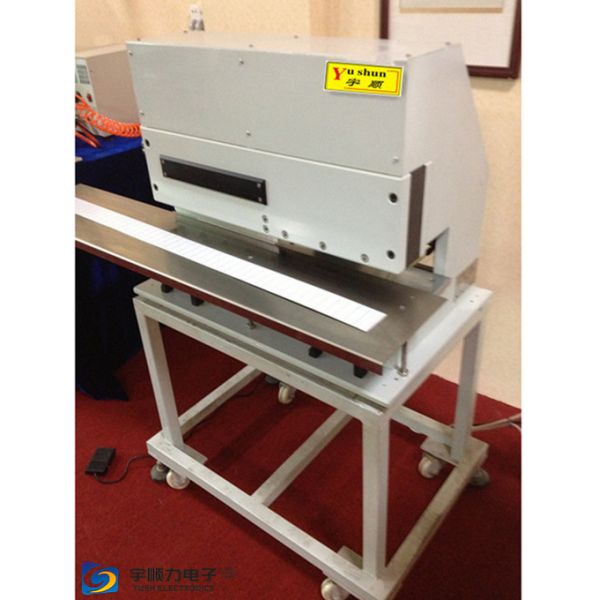

PCB Guillotine Machine - PCB Lead Cutting Machine
YSVC-3 Model - Professional PCB depaneling solution for efficient and safe board separation
Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine
Technical Specifications
Model YSVC-3
The Longest Cut Unlimited
Package Size 780mm x 500mm x 620mm
Cut Thickness 0.3-3.5mm
Machine Weight 185Kg
Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine
Application Scope
  • Cut any length metal board safely and easily
  • Separates long boards directly without turning direction
  • Separates boards up to 2.0mm thick metal board
  • Shears boards safely with parts as close as 1mm to the score line, including ceramic capacitors
  • Operator foolproof design - panels cannot be inserted into knives except on the score line
  • Handles high components up to 50mm
  • Avoids bow waves that can occur with round knives
  • Easy adjustment of distance between knives
Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine
Key Advantages
  • Maximum PCB depaneling length is unlimited
  • Depaneling PCB without bending and tension stress
  • Safety use with easy operation
  • Depaneling process without vibrations
Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine
Technical Features
  • Designed to depanel pre-scored PCB carefully without bending and tension stress
  • Even sensitive SMD components like ceramic capacitors remain undamaged during depaneling
  • Thin boards down to 0.3mm can be worked safely
  • Vibration-free depaneling process
  • Pneumatic-driven and electromagnetic valve control method
  • Foot pedal operation for depaneling control
  • Accommodates components up to 50mm near V-groove
  • Easy adjustment of PCB insertion gap
Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine
