Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YS-2000/2000L
MOQ :
1 set
Price :
$8,500-10,800 / set
Weight :
840 KG
Power :
Standard:350W, Max:3000W
Operating Voltage :
AC220V 50/60HZ
Air Pressure :
0.4-0.6MPa
Orbit Accuracy :
0.5mm (max)
Core Components :
Motor, Pump
Operating Modes :
Aging mode, Test mode, BYPASS mode
Max Pin Points :
2048
Track Type :
High-precision double-screw
Anti-crushing Function :
Yes
Incoming Board Alarm :
Yes
Linear Bearings :
4
Scan Code Function :
Reserved IO signal interface
Fixture Docking :
Reserved interface installation position
Remote Control :
Reserved upgrade port, PLC expansion network port
Description
YS-2000/2000L PCBA ICT&FCT Two-Stage Pressure Table Control Tester
Designed for fully automatic operation with no manual intervention required. Increases testing speed by approximately 30% or more compared to manual testing. Supports ICT static and functional testing according to customer requirements.
New Feature Advantages

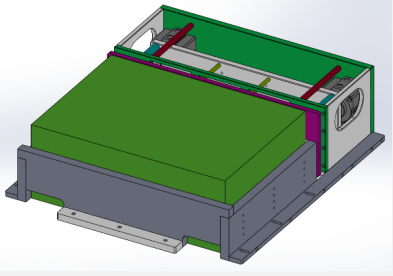

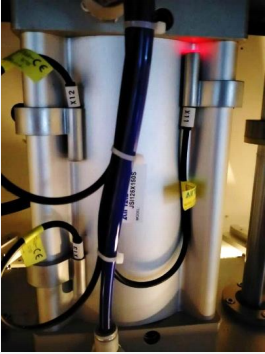

  • Two-stage pressure table control system - rises to highest point during debugging for convenient needle bed adjustment, and only rises to midpoint during automatic operation, reducing pressing table action time by 1-2 seconds
  • Support interface mating mechanism with maximum 2048 pin points
  • Eliminates traditional flat cable plug connections that require repeated plugging/unplugging, saving technician time and improving stability
YS-2000/2000L PCBA ICT&FCT Two-stage Pressure Table Control Manual Operation Un-necessary Automatic Tester YS-2000/2000L PCBA ICT&FCT Two-stage Pressure Table Control Manual Operation Un-necessary Automatic Tester
Hardware Features
  • High-precision double-screw track prevents bell mouth deformation and eliminates dropping or sticking
  • Anti-crushing function protects boards and needle beds from damage due to uneven surfaces
  • Incoming board alarm with shutdown protection
  • 4 linear bearings ensure consistent level operation
  • Premium brand components and moving parts for long-term equipment reliability
Software Features
  • Simple, intuitive operation interface
  • Multi-function check items with simple selection
  • Automatic track adjustment with one-key functionality
  • Comprehensive monitoring and fault prompt system
  • Supports various brand test equipment, ICT/FCT/burning and other functions

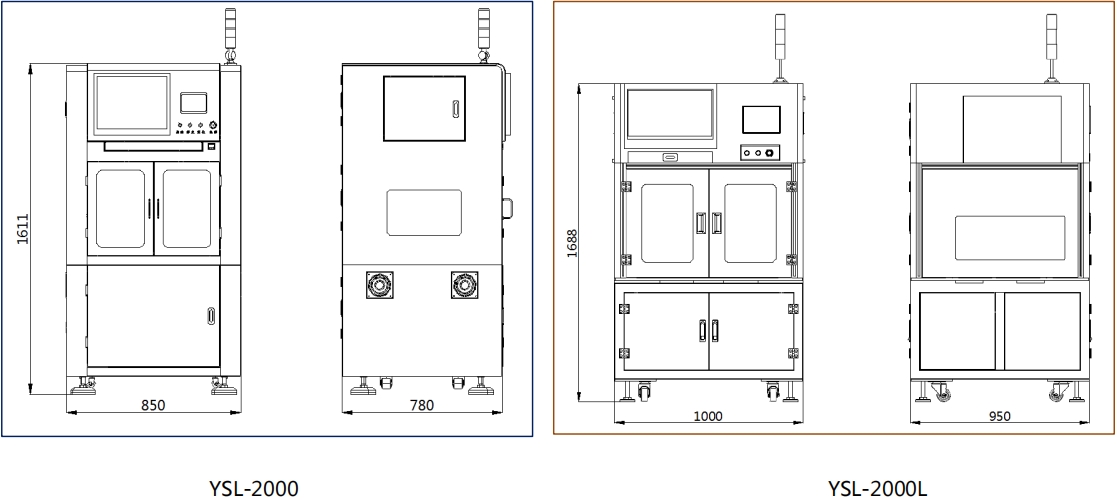

Dimensions
YS-2000/2000L PCBA ICT&FCT Two-stage Pressure Table Control Manual Operation Un-necessary Automatic Tester
Additional Features
Feature Description
Scan Code Function Reserved IO signal interface for manual function checking
Fixture Docking Module Reserved interface installation position for quick fixture docking
Front and Rear Docking Station Reserved installation location for extended functionality
Remote Control Reserved upgrade port, PLC expansion network port for remote control capability
