Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YSVJ-650
MOQ :
1 set
Price :
$10,000 / set
Weight :
350kgs
PCB thickness :
0.8-3.0mm
Power :
110V/220V AC 60HZ/50HZ
Size :
L1300*W400*H1000mm
Cutting speed :
Adjustable
Blade material :
SKH51 high speed steel
Top cutter adjustment :
0-5mm
Board width range :
15-20mm
Applicable board :
LED panel, fiberboard, aluminum board (>400mm)
Core components :
PLC
Cutting process :
Unlimited
Cutter adjustment :
Adjustable
Conveyor belt :
Included
Multiple cutters :
Yes
Display screen :
Yes
Description

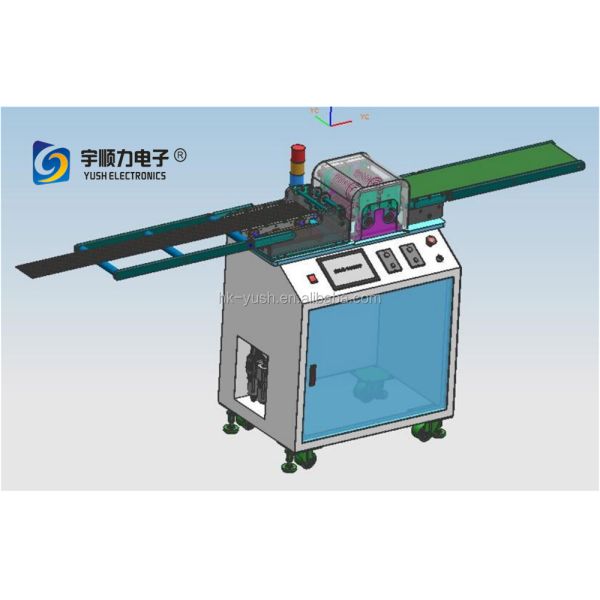

YSVJ-650 PCB Printed Circuit Board De-panelling Machine
Professional prototype PCB board de-panelling machine designed for efficient separation of V-cut PCB panels with minimal stress and maximum precision.
Product Features
  • Integral shaft design for top and bottom knives ensures easy installation and maintenance
  • Computer screen control with production counting and direct gap display
  • Compatible with all V-cut PCB boards
  • Reduces stress during cutting to prevent solder joint cracking
  • Multiple cutters enable simultaneous processing of several boards
  • Top cutter wheel adjustable from 0-5mm
  • Adjustable knife distance suitable for single PCB boards 15-20mm wide
  • SKH51 high-speed steel blades for long service life and wear resistance
  • Variable cutting speed controlled by turn-knob
  • Integrated conveyor belt for automatic board ejection and next-machine docking
  • Capable of cutting LED panels, fiberboard, aluminum boards (400mm+), and special boards
  • Multiple knife configuration for simple, efficient mass production operation
Pcb Printed Circuit Board De-panelling Machine / Prototype Pcb Board De-panelling Machine Pcb Printed Circuit Board De-panelling Machine / Prototype Pcb Board De-panelling Machine
Technical Specifications
Power Supply 110V/220V AC 60Hz/50Hz
Dimensions 1300mm (L) × 400mm (W) × 1000mm (H)
Weight 350 kg
Cutting Process Unlimited operation capability
PCB Thickness Range 0.8 - 3.0mm
Applicable Materials LED panels, fiberboard, aluminum board (400mm+), special boards
