Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YS-GW50
Certification :
ce
MOQ :
1 set
Price :
$50,000-100,000 / set
Weight :
600 KG
Laser wavelength :
355nm
Laser power :
10W
Maximum processing format :
610mm X 500mm
XY platform speed :
50m/min
Positioning accuracy :
±3um
Repeatability :
±1um
System precision :
±20um
Galvanometer scanning range :
50mm X 50mm
Cutting thickness :
<1mm
Power supply :
AC220V 50Hz / 2.2KW; three-phase 380V 50Hz / 5.5KW
Air requirement :
516m3/h
Dimensions :
1818mm X 2317mm X 1550mm
Ambient temperature :
20℃ ±2℃
Humidity :
<60% RH non-condensing
Description

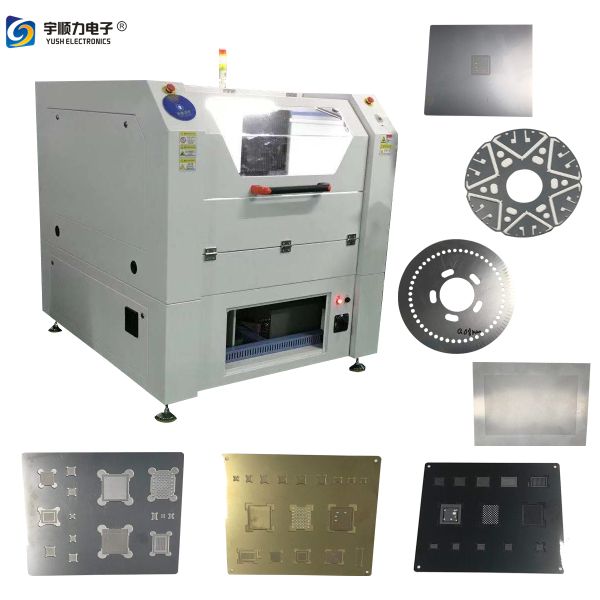

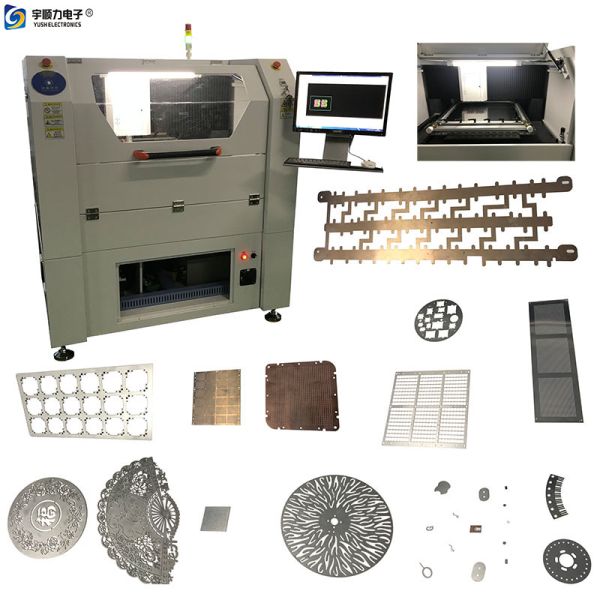

PCB Circuit Board UV Laser Depanelizer Machine (YS-GW50)
The YS-GW50 PCB Circuit Board UV Laser Depaneling Machine from YUSH Technology is designed for precision cutting of flexible circuit boards and organic coatings. This advanced UV laser cutting system eliminates the need for molds or protective plate fixation, delivering superior processing speed and precise machining results.
Machine Applications
Ideal for precision cutting of flexible circuit boards (FPC), CVL, RF components, and thin plywood materials. The system processes various substrate materials including silicon, ceramic, and glass with exceptional accuracy.
Pcb Circuit Board UV Laser Depanelizer Machine . UV Laser Cutting Machine (YS-GW50)
Key Features
  • Proprietary control software with intuitive interface and comprehensive functionality
  • Capable of processing any graphics and cutting different thicknesses and materials with synchronized hierarchical completion
  • Optimized optical system design ensures high beam quality and reduced focused spot size for precision cutting
  • High-performance UV laser with optimal wavelength, superior beam quality, and high peak power characteristics
  • Minimal thermal effect with no delamination, producing precise, smooth cuts with steep sidewalls
  • Vacuum sample fixation system eliminates need for mold protection plates
  • Automatic correction, positioning, multi-plate cutting, thickness measurement and compensation capabilities
Pcb Circuit Board UV Laser Depanelizer Machine . UV Laser Cutting Machine (YS-GW50)
Technical Specifications
Laser System
Solid-state UV laser source: 355nm wavelength
Laser power: 10W
Processing Capabilities
Maximum processing format: 610mm × 500mm (24" × 18")
XY platform maximum operating speed: 50m/min
Cutting thickness: <1mm
Galvanometer scanning range: 50mm × 50mm
Precision Metrics
Positioning accuracy: ±3μm
Repeatability: ±1μm
System precision: ±20μm
Pcb Circuit Board UV Laser Depanelizer Machine . UV Laser Cutting Machine (YS-GW50)
Power & Environmental Requirements
Power Supply AC220V 50Hz / 2.2KW; Three-phase 380V 50Hz / 5.5KW
Ventilation Requirements 516m³/h
Dimensions 1818mm × 2317mm × 1550mm
Ambient Temperature 20℃ ± 2℃
Humidity <60% RH non-condensing
Ground Amplitude <5μm
Vibration Acceleration <0.05g
Ground Pressure 2200kgf/m²
Control & Software
Industry-specific control equipment with flexible processing software, dedicated motion control card, and IPC control mode. Features 17-inch monitor, 300G+ hard drive, and supports standard G-code, Gerber data, and CAD formats.
Pcb Circuit Board UV Laser Depanelizer Machine . UV Laser Cutting Machine (YS-GW50)
Quick Specifications
Maximum Board Length 610 × 500mm
Package Size 1818mm × 2317mm × 1550mm
Thickness 1mm
Power Supply AC220V 50Hz / 2.2KW; Three-phase 380V 50Hz / 5.5KW
Working Air Pressure 516m³/h
Scope of Application All V-CUT SMD PCB FPC boards
