Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$10,000 / set
Weight :
165kg
Power :
10 kW
Voltage :
110V/220V
Cutting thickness :
0.3-3.5mm
Max length :
330mm
Working air pressure :
0.5-0.7Mpa
Size :
620*230*400mm
Core components :
Motor
Max board length :
300mm / 400mm
Package size :
720mm(L)*300mm(W)*440(H)
Thickness range :
0.50~3.5mm
Power supply :
220VAC / 110V
Air pressure :
0.4-0.6Mpa
Components height :
Up to 70mm
Minimum distance :
0.5mm
Description

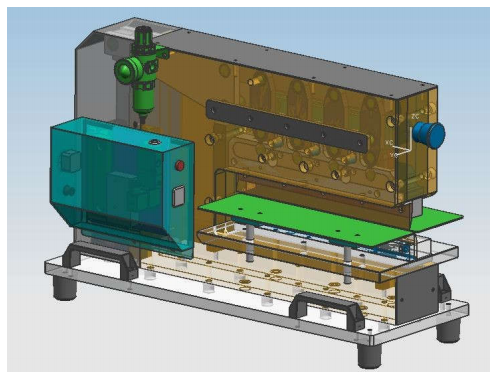

Pneumatic Guillotine FR4 PCB Cutting Machine - PCB V-Cut Tool
YSVC-330 and YSVC-220 models provide efficient and precise PCB depaneling solutions for electronic manufacturing applications.
Pneumatic Guillotine FR4 Pcb Cutting Machine . Cb V-cut Machine/pcb V-cut Tool/pneumatic Pcb Machine
Key Advantages
  • Easy maintenance and operation
  • Thin PCBs down to 0.3mm can be sheared safely
  • Shearing process without vibrations due to pneumatic drive unit
Technical Specifications
Maximum Cutting Length 330mm (Custom sizes available)
Cutting Thickness Range 0.3-3.5mm
Voltage and Power 110V/220V
Working Air Pressure 0.5-0.7Mpa
Machine Dimensions 620×230×400mm
Weight 165kg
Advanced Features
  • Pneumatically driven with electromagnetic valve control
  • Vibration-free shearing process protects sensitive components
  • Safe shearing of PCBs with SMD components and thin boards down to 0.3mm
  • Foot pedal operation for convenient shearing control
  • Accommodates components up to 70mm near V-groove
  • Minimum 0.5mm clearance between V-groove and electronic components
  • Adjustable PCB insertion gap via front knob control
Pneumatic Guillotine FR4 Pcb Cutting Machine . Cb V-cut Machine/pcb V-cut Tool/pneumatic Pcb Machine
Performance Benefits
  • No vibration during processing prevents damage to precision PCBs
  • Easy gap adjustment via top-mounted knob with low friction design
  • Adjustable lower knife height with separate front/rear adjustment
  • No thin plates required after knife re-sharpening
  • Simple operation and maintenance suitable for all skill levels
PCB Lead Cutting Machine Specifications
Maximum Board Length 300mm / 400mm
Package Size 720mm(L)×300mm(W)×440mm(H)
Thickness Range 0.50-3.5mm
Power Supply 220VAC / 110V
Working Air Pressure 0.4-0.6Mpa
Weight 189 kg
Application Scope All V-CUT SMD PCB boards

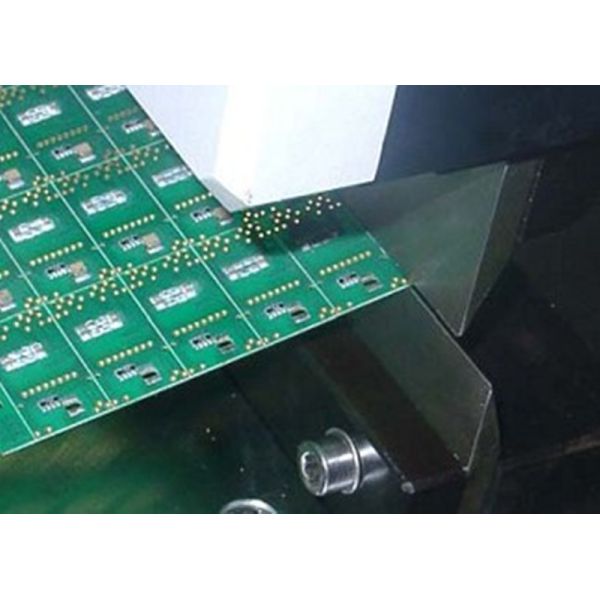

This all-purpose PCB depaneling tool provides reliable separation of pre-scored panel boards without bending or tension stress, ensuring sensitive SMD components remain undamaged throughout the separation process.
