Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YSV-1A
MOQ :
1 set
Price :
$3,000 / set
Weight :
55Kg
Power supply :
110/220V
Minimize Speed :
100/200/300/500mm/s
Poles Number :
1
Type :
Air
Size :
770*510*450mm
Thickness :
0.6-3.5mm
Model :
YSV-1
Length :
460 or 600mm
Speed :
100/200/300/500mm/s
Core components :
Gear
Blade clearance :
Adjustable
Description

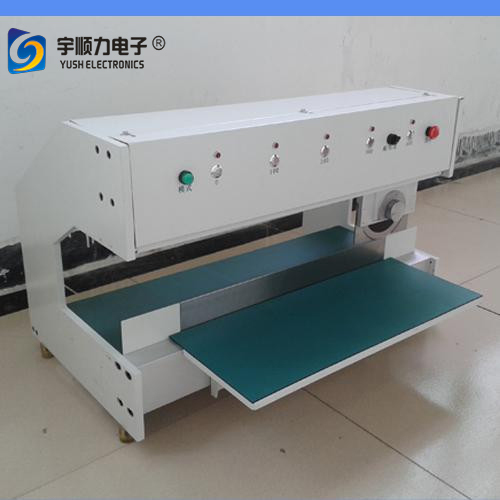

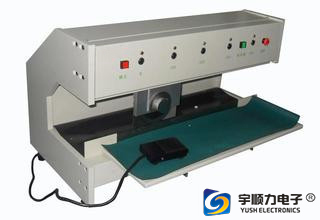

High Speed PCB Cutting/Lead Cutting Machine - YSV-1A
Technical Specifications
Model YSV-1
Length (mm) 460 or 600
Speed (mm/s) 100/200/300/500
Thickness (mm) 0.6-3.5
Power Supply (V) 110/220
Size (mm) 770×510×450
Weight 55kg
High Speed Pcb Cutting/lead Cutting Machine/pcb Cutting Automatic Machine [YSV-1A] High Speed Pcb Cutting/lead Cutting Machine/pcb Cutting Automatic Machine [YSV-1A]
Key Features
  • Separate pre-scored PCB assembly without stress on either PCB or component
  • One touch programming of cut length with digital display
  • Separating speed is adjusted by a rotary knob
  • Handle intermittent scoring or cut-outs
  • Board with projected component can be cut precisely
  • Large stainless steel platform on both sides of cutting blade prevents board wobble; table height and angle are adjustable
  • Optional PCB conveyor belt to remove finished board
  • Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear
High Speed Pcb Cutting/lead Cutting Machine/pcb Cutting Automatic Machine [YSV-1A] High Speed Pcb Cutting/lead Cutting Machine/pcb Cutting Automatic Machine [YSV-1A]
Competitive Advantages
  • YSV-1A LED PCB depaneling machine original manufacturers
  • 24-hour technical support services
  • Limited handling of complaints with 30-minute response time to customers
  • Depanel experts providing professional PCB solutions
