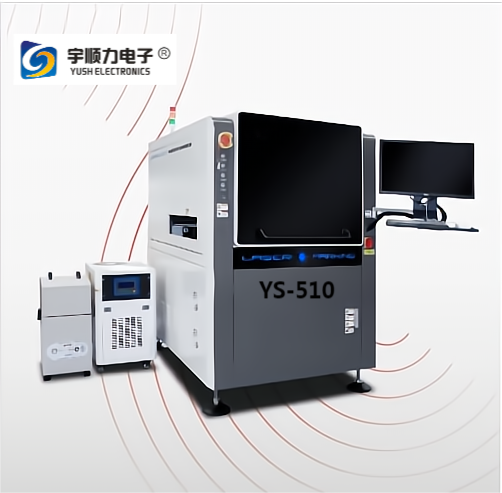

3D Laser Label Printing Machine Green Color Laser Marking Machine
3D Laser Label Printing Machine Green Color Laser Marking Machine
3D Laser Label Printing Machine Green Color Laser Marking Machine
3D Laser Label Printing Machine Green Color Laser Marking Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$50,000-100,000 / set
Weight :
600 kg
Power :
10 kW
Voltage :
220V/110V
Laser Type :
UV laser, Green laser, Fiber laser, CO2 laser
Laser Z-axis :
Manual (Automatic Option)
PCB Flip :
Inside PCB Flip
PCB Size :
Dimension :
L1000 * W1200 * H1500 mm
Air Pressure :
0.5~0.6Mpa
Wave Length :
UV:355nm, Green:532nm, Fiber:1064nm, CO2:10640nm
Laser Power :
UV:3W(5W Option), Green:7W, Fiber:20W, CO2:30W
Marking Range :
<460mm*420mm
Marking Speed :
<7000mm/s
Marking Precision :
±0.05mm
Minimum Character :
0.1mm~0.4mm
Description
3D Laser Label Printing Machine - Green Color Laser Marking System
This advanced laser marking machine is specifically designed for marking text, barcodes, 2D codes, and graphics on PCBs. YUSH laser marking systems are primarily used in the PCB industry and can seamlessly integrate with SMT assembly lines while supporting online data transmission and MES system information return.
3D Laser Label Printing Machine Green Color Laser Marking Machine

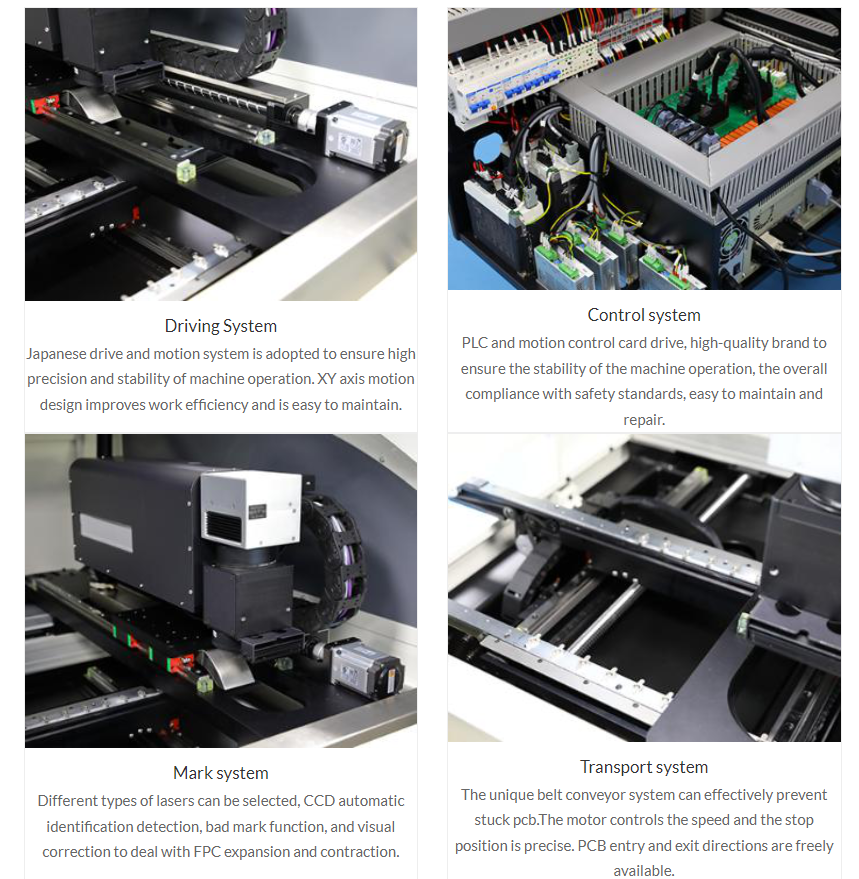

Key Features
  • Stable performance with CO2 laser, fiber laser, green laser, and UV laser options
  • High-speed vibrating mirror system for precision marking with stable performance
  • Fast and accurate CCD positioning with automatic recognition after marking
  • User-friendly software interface with powerful editing capabilities
  • Automatic QR code reading and data saving with failure alert system
  • No consumables required, environmentally friendly, and maintenance-free operation
  • Anti-reprinting function to prevent duplicate marking
  • Seamless integration with SMT production lines and MES systems
3D Laser Label Printing Machine Green Color Laser Marking Machine
Technical Specifications
Item YS-400 YS-510
Laser Type UV laser, Green laser, Fiber laser, CO2 laser
Wave Length UV laser: 355nm, Green laser: 532nm, Fiber laser: 1064nm, CO2 laser: 10640nm
Laser Power UV laser: 3W (5W Option), Green laser: 7W, Fiber laser: 20W, CO2 laser: 30W
Laser Z-axis Lifting Manual (Automatic is Option)
PCB Flip Function Inside PCB Flip N/A (Outside Flipper)
PCB Size <L400mm × W320mm <L510mm × W460mm
Marking Range <380mm × 320mm <460mm × 420mm
PCB Size Range L50 × W80mm ~ L450 × W350mm; Thickness 0.5mm-6mm
Marking Speed <7000mm/s
Marking Precision ±0.05mm
Minimum Character Height 0.1mm ~ 0.4mm
Reading Code Function Automatically read two-dimensional code and save data, automatically record and alarm when unable to read
Dimensions L1000 × W1200 × H1500 mm
Air Pressure 0.5~0.6Mpa
Packaging & Shipping
3D Laser Label Printing Machine Green Color Laser Marking Machine
Our Services
3D Laser Label Printing Machine Green Color Laser Marking Machine
Company Information
YUSH Electronic Technology Co., Ltd is a specialized manufacturer and trader focused on the research, development, and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, we benefit from convenient transportation access. All our products comply with international quality standards and are highly regarded in various global markets. We welcome custom orders and look forward to establishing successful business relationships with clients worldwide.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China, established in 2014. We serve global markets including Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Mid East (5%). Our organization employs 301-500 professionals.
How can we guarantee quality?
We provide pre-production samples before mass production and conduct final inspections before shipment to ensure consistent quality standards.
What can you buy from us?
PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.
Why should you buy from us instead of other suppliers?
YUSH Electronic Technology Co., Ltd. was founded in 2004 and is located in Jiangsu, a global manufacturing hub. We specialize in professional PCB separator and depanelizer electronic equipment machinery with advanced production facilities and experienced technical teams.
What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Types: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
