SMT Line Supporting YSVC-3S T5/T6/T8 Unlimited Length LED PCB Multi-Group Blades Circuit Board Depanelizer

Specifications

Place of Origin :

Guangdong, China

Brand Name :

YUSH

MOQ :

1 set

Price :

$4,000 / set

Weight :

85 Kg / 98 Kg

Voltage :

110V / 220V

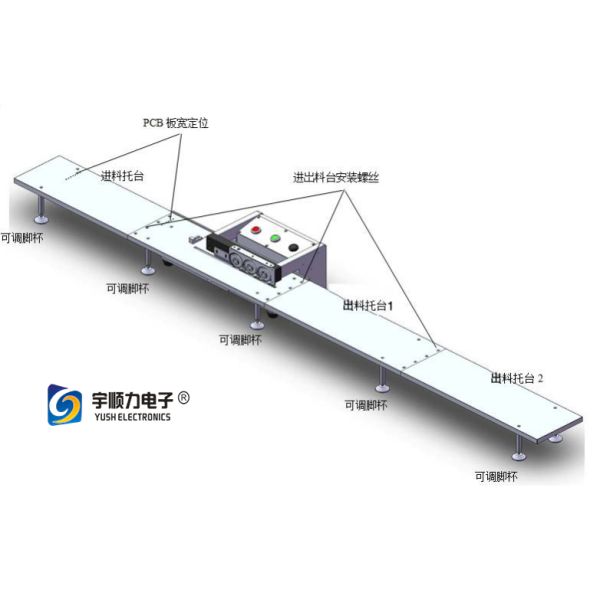

Platform length :

1.5 M / 2.4 M

Dimension :

958*506*333mm / 1020*506*333mm

Cutting Speed :

80,120, 200, 400mm/s

Cutting Thickness :

0.2-5mm

Power :

40W

Cutting Length :

Unlimited

Blade Material :

High speed steel

Blade Jitter :

Less than 0.02mm

Blade Groups :

A, B, C (3 groups)

Cutting Stages :

3 stages (40%, 40%, 20%)

Core Components :

Blade

Machine Type :

PCB depaneling machine

Cutting Board :

V-cut PCB board, FR4 board, LED Aluminum board

Description

SMT Line Supporting YSVC-3S T5/T6/T8 Unlimited Length LED PCB Multi-Group Blades Circuit Board Depanelizer

LED PCB Separator YSVC-3S

Technical Specifications

Cutting Length	Unlimited
Voltage	110V / 220V
Certificates	CE Mark
Weight	85 Kg / 98 Kg
Platform Length	1.5 M / 2.4 M
Cutting Board Types	V-cut PCB board, FR4 board, LED Aluminum board
Dimension	958506333mm / 1020506333mm
Cutting Speed	80, 120, 200, 400mm/s
Cutting Thickness	0.2-5mm
Voltage	230V/50Hz (110V/60Hz)
Power	40W

Key Features

Vertically adjustable guide to accommodate different PCB thicknesses
Precise circular blade clearance adjustment via knob control
Reusable upper and lower circular blades after regrinding
Customizable circular blade shapes and sizes according to customer specifications

Production Process Technology

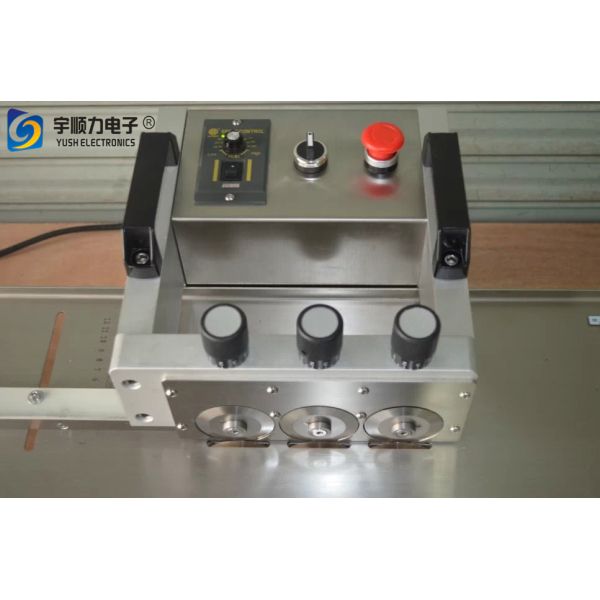

The YSVC-3S employs a unique multi-stage cutting method utilizing six blades arranged in three groups (A, B, C). Each group consists of one upper and one lower blade, forming a complete cutting unit.

The cutting process is divided into three stages: Group A blades cut 40% of the board, Group B blades complete another 40% through the groove cut by Group A, and Group C blades finish the final 20%. This progressive cutting approach reduces stress during the process by over 80% compared to traditional single-cut methods.

This results in exceptionally smooth board edges and surfaces without warping, making it the only machine capable of guaranteeing aluminum plate cutting without deformation.

The multiple cutting stages ensure smooth operation and significantly improve V-CUT groove positioning capability. Even with shallow V-CUT grooves, the board remains securely positioned without jumping out of the blade, eliminating adverse effects.

The cutting force is minimized, and the blades are manufactured from imported Swedish high-speed steel, dramatically improving durability. Blade lifetime can exceed one year when cutting aluminum boards.

All cutting blades are calibrated using Excitation double-frequency laser interference measurement instruments, ensuring subsequent blades accurately continue cutting in previously cut slots. Blade point jitter is maintained below 0.02mm, guaranteeing perfect cutting quality.
