Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$30,000 / set
Weight :
750KG
Voltage :
220V/110V
Repeated Positioning Accuracy :
±0.02mm
PCB Size :
510*460mm
Wave Length :
355nm, 532nm, 1064nm, 10640nm
Service Power :
UV (3w,5w), Green (7w,10w), Fiber (10w,20w,30w), Co2(10w,20w,30w)
Laser Marking Range :
50*50-510*460mm
Marking Speed :
7000mm/s
Marking Position Accuracy :
±0.05mm
PCB Thickness :
0.5-5mm
Electricity Demand :
220V/50Hz, ≈2500W
Ambient Temperature :
20-28℃
Humidity :
30%-60%
Barometric Pressure :
0.4-0.6Mpa
Dimensions :
920*1500*1500mm
Description
YSL-510 SMT In-Line Single-Laser Single Lane Laser Marking Machine

High-precision laser marking system designed for SMT production lines, featuring coaxial vision correction for accurate PCB marking applications.

Technical Specifications
Model YSL-510 (Single-head coaxial vision)
Wave Length 355nm, 532nm, 1064nm, 10640nm
Laser Power UV (3W, 5W), Green (7W, 10W), Fiber (10W, 20W, 30W), CO2 (10W, 20W, 30W)
Marking Range 50×50mm to 510×460mm
PCB Size 510×460mm
Marking Speed Up to 7000mm/s
Example: 3×3mm white ink QR code with 55 digits completed within 1 second
Marking Position Accuracy ±0.05mm (Customizable according to requirements)
Repeated Positioning Accuracy ±0.02mm
Visual System Coaxial hawk-eye visual correction for standard graphics acquisition, accurate marking on FPC, soft/hard boards, and deformed positions
PCB Thickness 0.5-5mm (Thicker specifications available as custom option)
Power Requirements 220V/50Hz, Total Power ≈2500W
Supported Code Types & Formats
1D Barcode Types Code 39, Code 25, Code 93, Code 128, EAN-13, EAN-8, ISBN and others
2D QR Code Types Datamatrix, QR Code, Micro QR Code, PDF417, Code49, Code 16k and other common formats
QR Code Processing Size 1.5mm×1.5mm to 20mm×20mm
Minimum size depends on QR code content
Character Types TrueType fonts, single-line fonts (JSF), SHX fonts, Dot matrix fonts (DMF)
Supported File Formats DXF, PLT, Excel, TXT and other common formats
Automatic Positioning Supports automatic photo capture, 2, 3, and 4 point positioning modes
Physical Specifications & Operating Conditions
Dimensions & Weight 920×1500×1500mm, Weight: 750kg
Ambient Temperature 20-28°C, Humidity: 30%-60%
Air Pressure Requirements Compressed air: 0.4-0.6Mpa

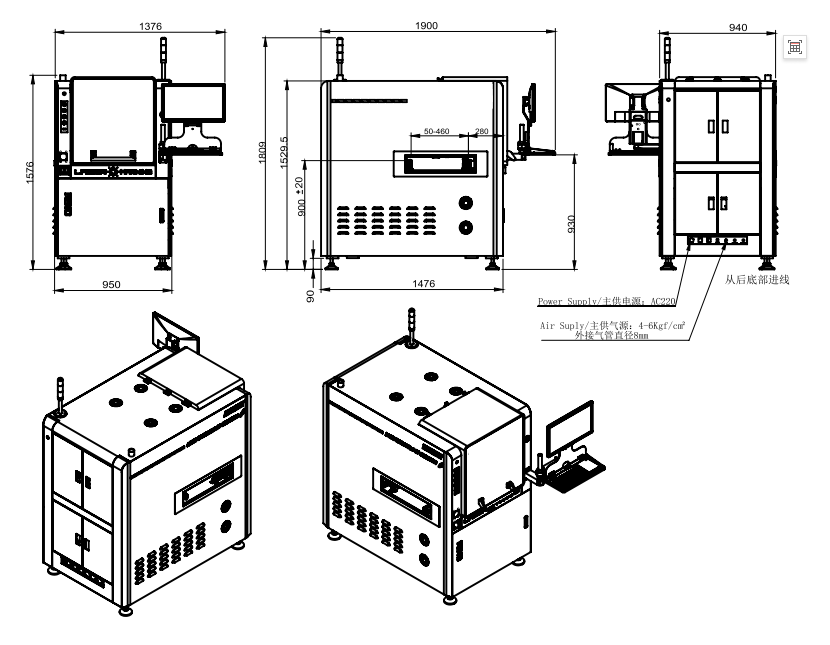

Appearance Dimension Drawing
