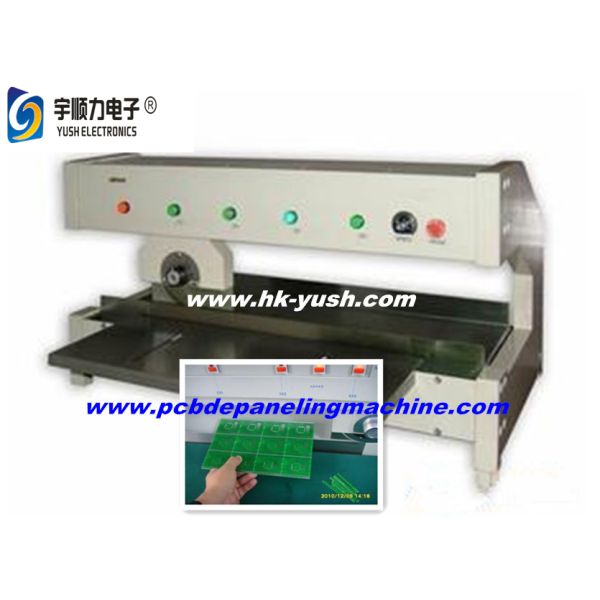

PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A]
PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A]
PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A]
PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A]
PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A]
PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A]
PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A]
PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A]
PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A]
PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A]
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YSV-1A
MOQ :
1 set
Price :
$3,000 / set
Weight :
55Kg
Power supply :
110/220V
Minimize Speed :
100/200/300/500mm/s
Poles Number :
1
Type :
Air
Size :
780 X 460X 560mm
Thickness :
0.6-3.5mm
Model :
YSV-1A
Length :
460 or 600mm
Speed :
100/200/300/500mm/s
Machine Size :
770*510*450mm
Machine Weight :
55kg
Core components :
Pressure Vessel
Adjustable clearance :
Yes
Description
PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for PCB V-cut Scoring [YSV-1A]

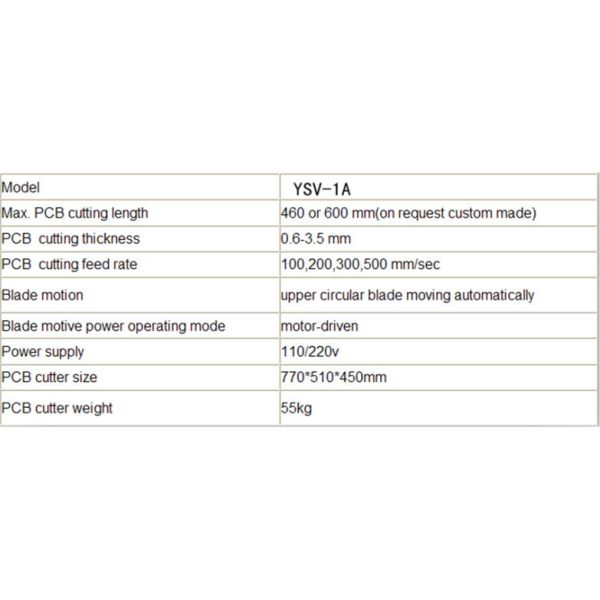

Technical Specifications
Model YSV-1A
Length (mm) 460 or 600
Speed (mm/s) 100/200/300/500
Thickness (mm) 0.6-3.5
Power Supply (V) 110/220
Size (mm) 770×510×450
Weight 55kg
PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A] PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A]
Key Features
  • Separate pre-scored PCB assembly without stress on either PCB or components
  • One-touch programming of cut length with digital display
  • Separating speed adjusted by rotary knob
  • Handle intermittent scoring or cut-outs
  • Precisely cut boards with projected components
  • Large stainless steel platform on both sides of cutting blade prevents board wobble; table height and angle are adjustable
  • Optional PCB conveyor belt to remove finished boards
  • Adjustable clearance between circular and linear blades to fit different groove depths and compensate for blade wear
PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A] PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A]
Competitive Advantages
  • YSV-1A PCB cutting machine original manufacturer
  • 24/7 technical support services
  • Rapid complaint handling with 30-minute response time to customers
  • Depanel experts providing professional PCB separation solutions
PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A] PCB Cutting Machine Board Separator Depanelizer Router V-grooving Machine for Pcb V-cut Scoring [YSV-1A]
