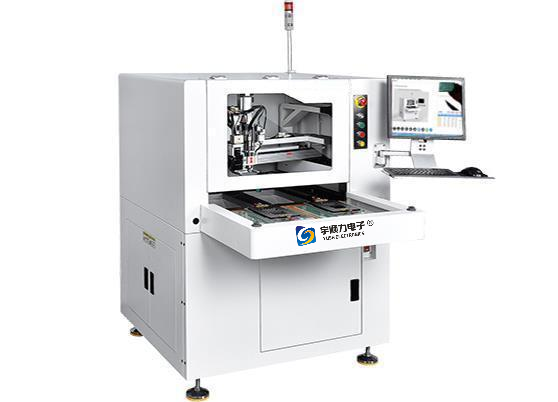

Full Automatic PCB Board Router Machine for PCB Assembly Line
Full Automatic PCB Board Router Machine for PCB Assembly Line
Full Automatic PCB Board Router Machine for PCB Assembly Line
Full Automatic PCB Board Router Machine for PCB Assembly Line
Full Automatic PCB Board Router Machine for PCB Assembly Line
Full Automatic PCB Board Router Machine for PCB Assembly Line
Full Automatic PCB Board Router Machine for PCB Assembly Line
Full Automatic PCB Board Router Machine for PCB Assembly Line
Full Automatic PCB Board Router Machine for PCB Assembly Line
Full Automatic PCB Board Router Machine for PCB Assembly Line
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$16,000-25,000 / set
Weight :
900 KG
Working size :
350mm X 450mm
Double workbenches size :
700mm X 450mm
X-Y Servo Speed :
0-1000mm/sec
Z Servo Speed :
0-800mm/sec
X-Y Accuracy :
±0.01mm
Cutting Accuracy :
±0.02mm
CCD Calibration Accuracy :
±0.01mm
Plate Stress :
300uε below
Spindle Speed :
60,000rpm
Tool Diameter :
0.8-2.3mm
PCB Thickness :
0.2mm-6.0mm
Dust Collector Power :
3HP (option 5HP)
Dust Collector Size :
640mm×785mm×1760mm
Machine Size :
1220mm×1430mm×1520mm
Description
Full Automatic PCB Board Router Machine for PCB Assembly Line
High-precision automated PCB depaneling solution designed for efficient PCB assembly line integration with dual workbench capability.
Technical Specifications
Single side working size350mm × 450mm
Double workbenches size700mm × 450mm
X-Y AC Servo speed0-1000mm/sec
Z AC Servo speed0-800mm/sec
X-Y repetition accuracy±0.01mm
Cutting accuracy±0.02mm
CCD camera calibration accuracy±0.01mm
Plate stress value300uε below
NSK spindle speedMax. 60,000rpm
Tool diameter0.8-2.3mm
PCB board cutting thickness0.2mm-6.0mm
Dust collector power3HP (option 5HP)
Dust collection cabinet size640mm×785mm×1760mm (D×W×H)
Machine size1220mm×1430mm×1520mm (D×W×H)
Weight of main engine + dust collector900 KG
Full Automatic PCB Board Router Machine for PCB Assembly Line
Device Configuration Features

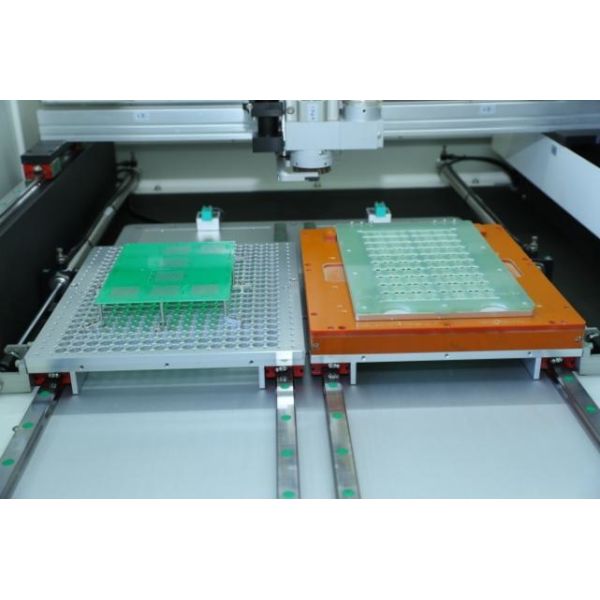

Double Work Table Structure
YSL-880L features dual slide rail and cylinder double platform operation for simultaneous processing of different product types, significantly reducing plate handling wait times. Configurable as dual platform or large single platform for enhanced operational flexibility.
Full Automatic PCB Board Router Machine for PCB Assembly Line

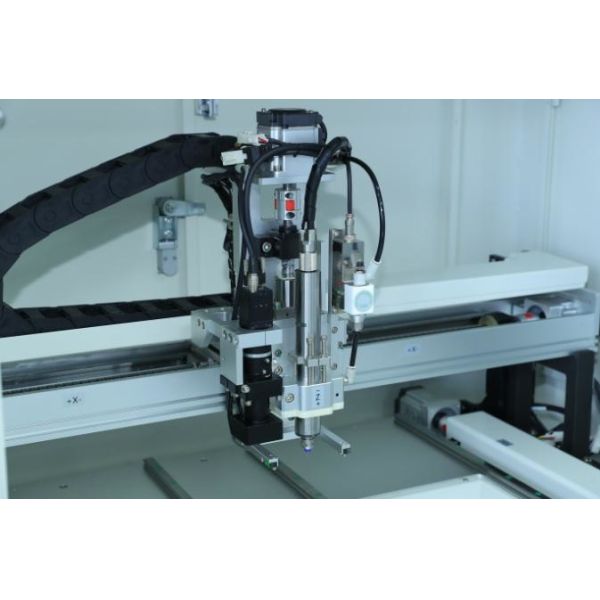

Lower Vacuum Spindle System
  • High-speed imported spindle for minimal cutting stress, high precision, and rapid response
  • Milling cutter detection system for real-time monitoring and prevention of continued operation after cutting
  • Advanced vision system with uniform ring light source and brightness adjustment for superior Mark point recognition across various PCB finishes including tin plating, copper plating, gold plating, and tin spraying
  • Visual counterpoint compensation function for enhanced accuracy
Full Automatic PCB Board Router Machine for PCB Assembly Line

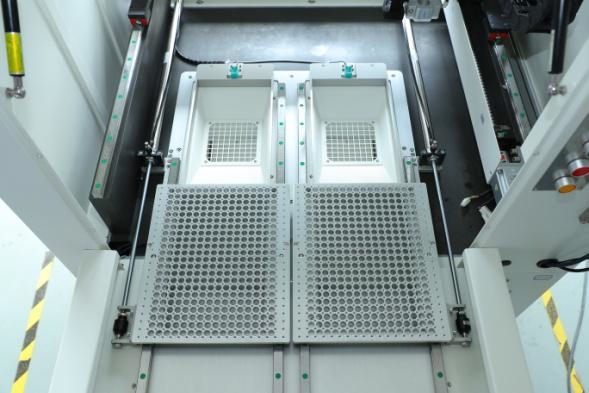

Optimized Suction Mode Structure
Funnel seal design with 45-degree bevel angle suction inlet reduces internal dust vortex phenomenon for efficient debris removal.
Full Automatic PCB Board Router Machine for PCB Assembly Line

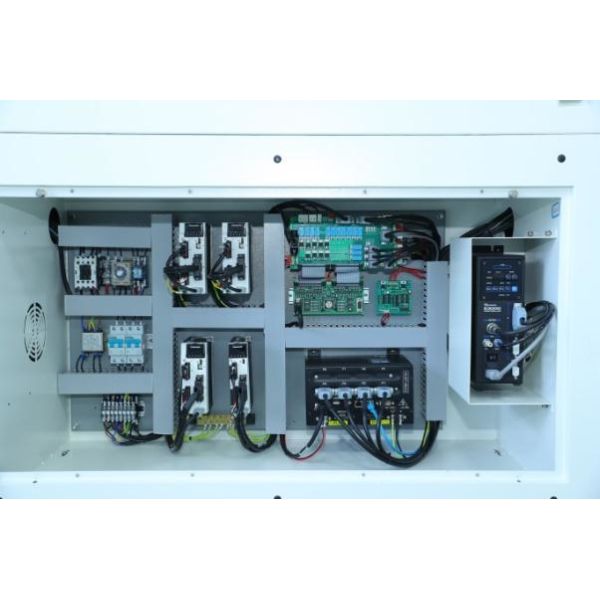

CNC Special Controller
Independent CNC controller integrates control functions with exceptional stability, high precision, fast response transmission, and strong anti-interference capabilities.
Full Automatic PCB Board Router Machine for PCB Assembly Line

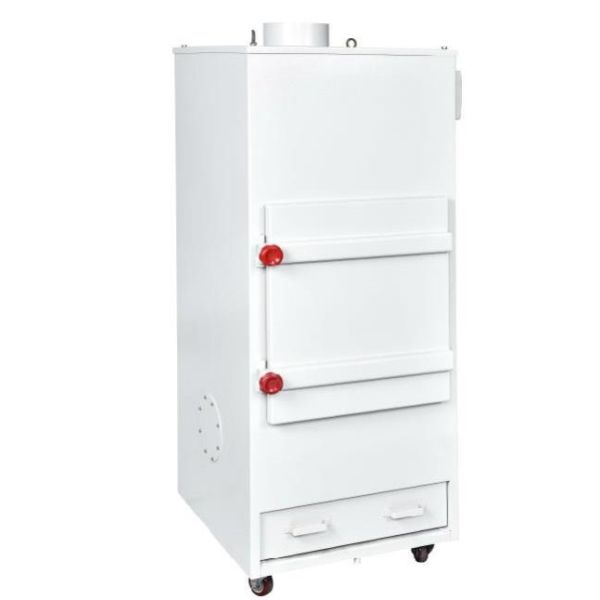

High-Efficiency Dust Collection System
YSL-880L utilizes high-efficiency motor and wind blade design with large suction capacity. Features built-in polyester needle felt dust bag with excellent permeability and oxidation resistance. Noise levels controlled within 80 decibels.
Full Automatic PCB Board Router Machine for PCB Assembly Line
